P a g e | 353

UCM630X Series User Manual

Version 1.0.11.10

Configure 1-way Paging

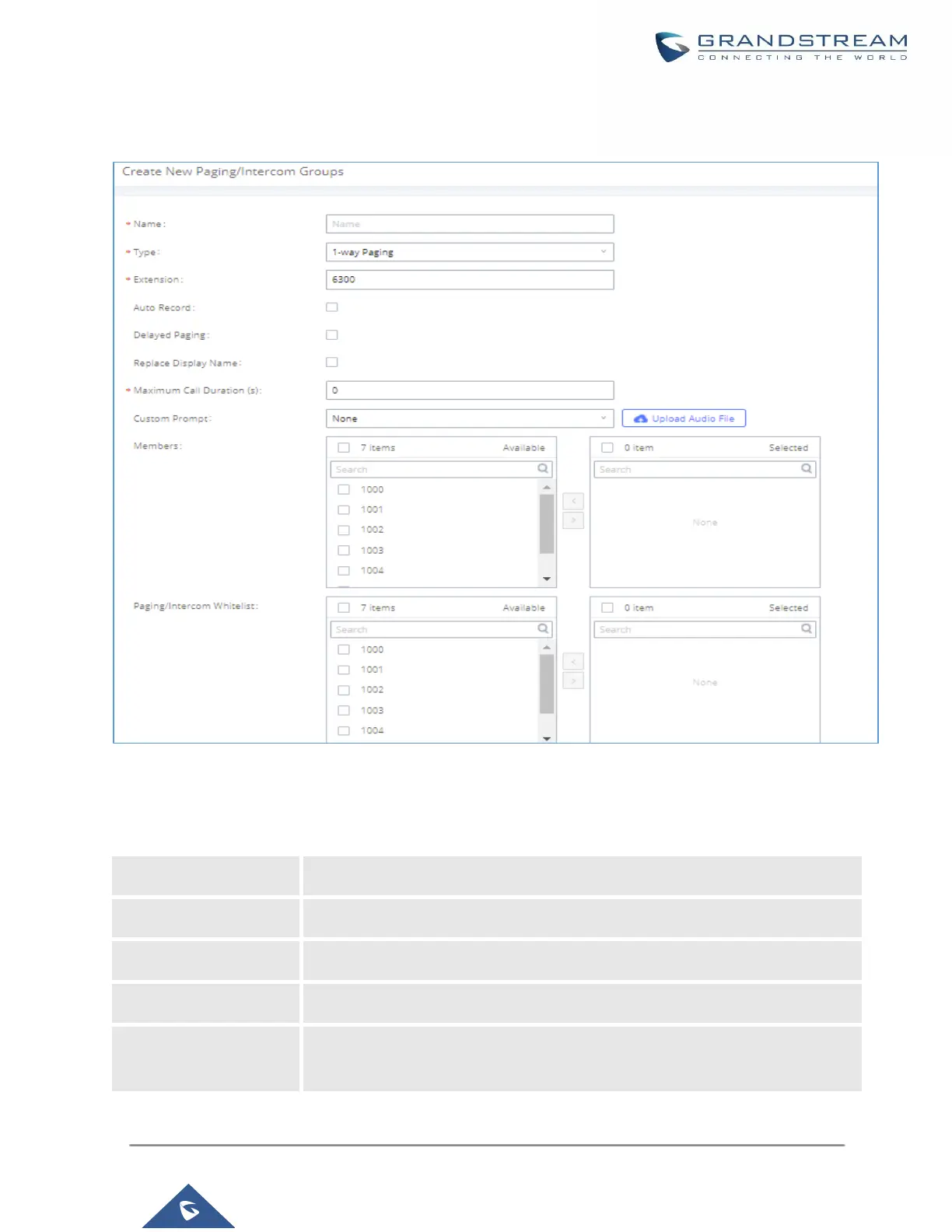

Figure 179: 1-way Paging

Table 84: 1-way Paging Configuration Parameters

Name

Configure paging/intercom group name.

Type

Select "1-way Paging".

Extension

Configure the paging/intercom group extension.

Auto Record

Enable this option to record in WAV format.

Delayed Paging

Allows the announcement to be played after the configured delay paging. If there

are many messages, they will be played in sequence.
