- The SuperAdmin user can click on on the “General_User” in order to enable/disable the custom

privilege from deleting their own recording files, changing SIP credentials, and disabling voicemail

service in their user portal account.

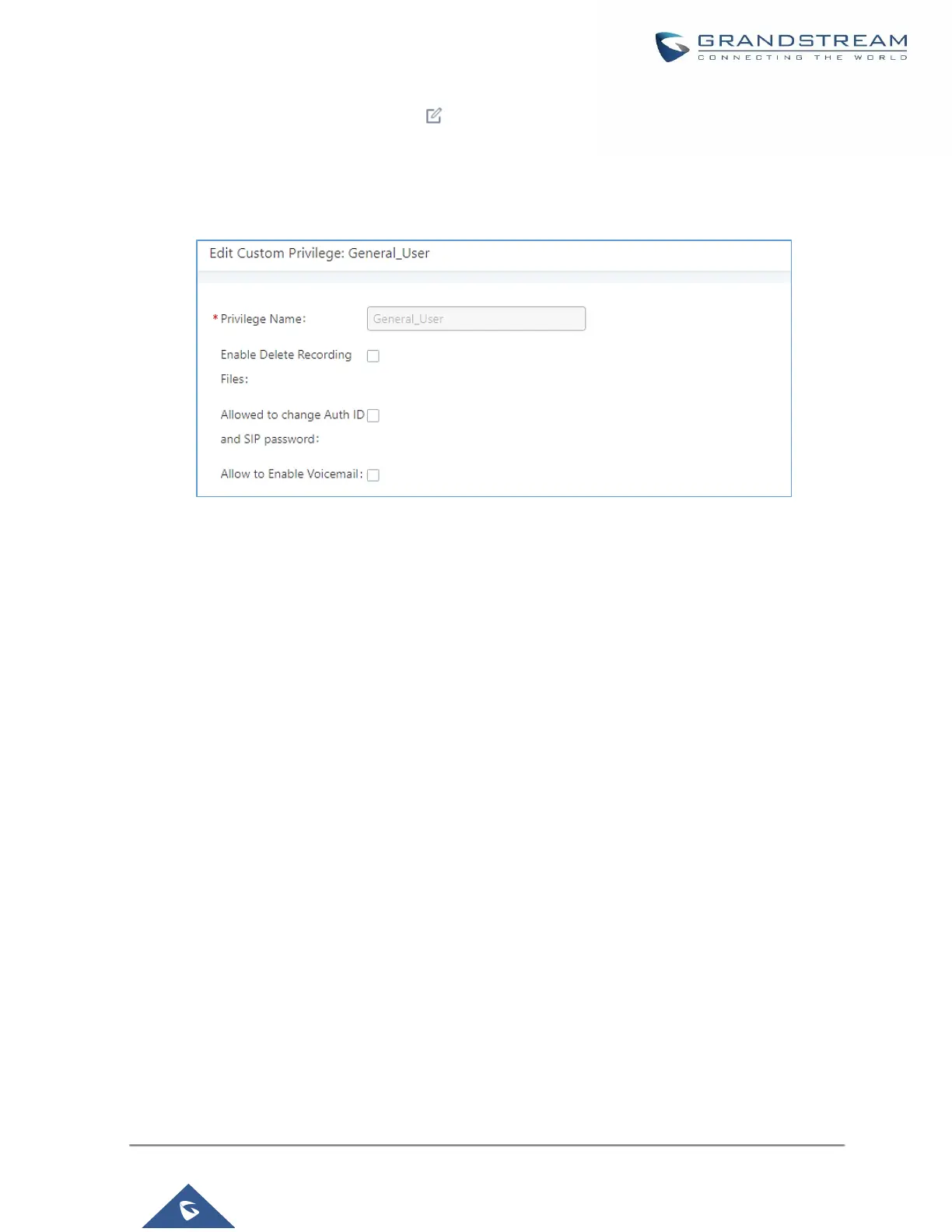

Figure 330: General User

• Custom Privilege

The Super Admin user can create users with different privileges. 33 items are available for privilege

customization.
