P a g e | 112

UCM630X Series User Manual

Version 1.0.11.10

• LDAP Version: If existed, please select LDAP Version 3

• Port: 389

The following figure shows the configuration information on a Grandstream GXP2170 to successfully use the

LDAP server as configured in [Figure 37: LDAP Server Configurations].

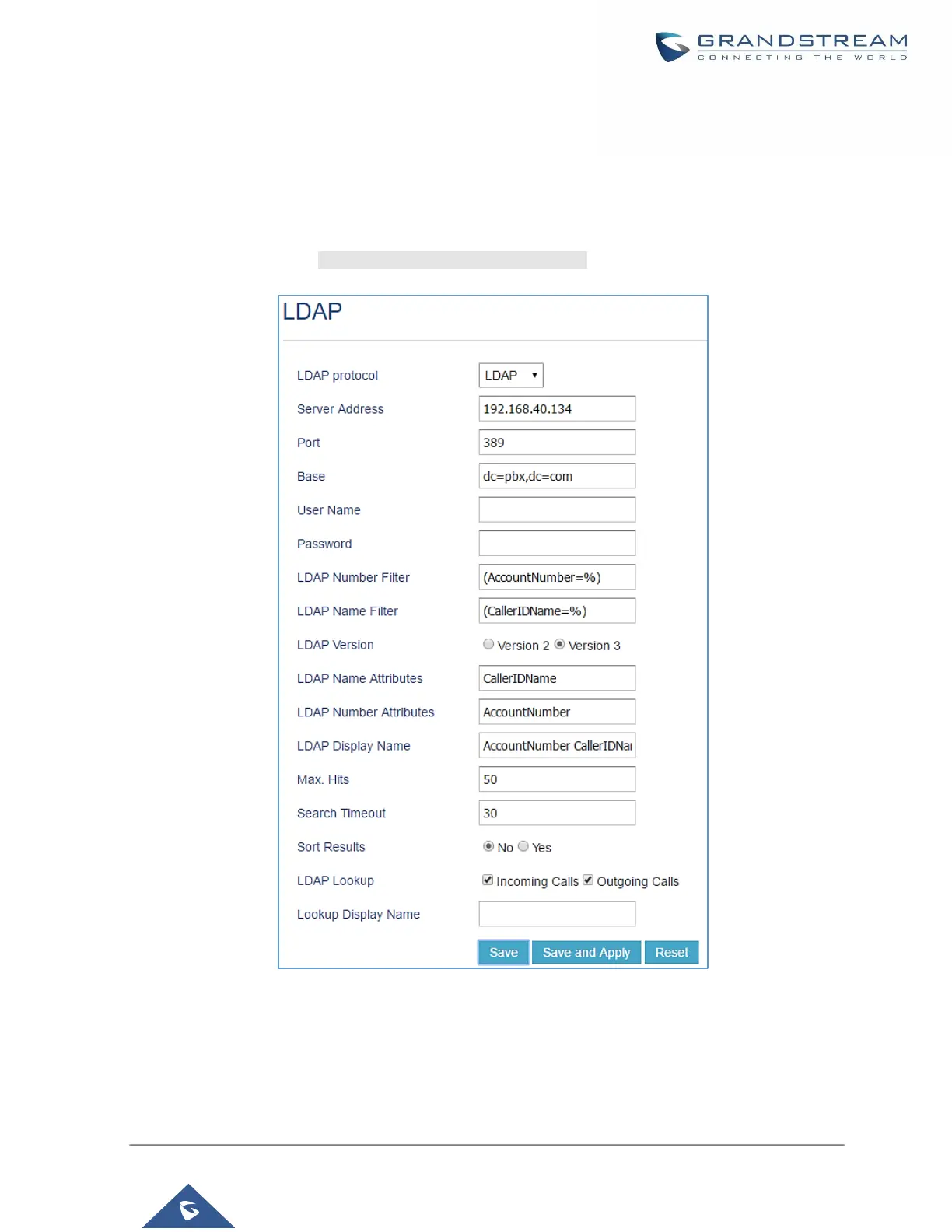

Figure 48: GXP2170 LDAP Phonebook Configuration

Note: The UCM63xx LDAP server is no longer supporting the anonymous binding of the LDAP client.
