P a g e | 590

UCM630X Series User Manual

Version 1.0.11.10

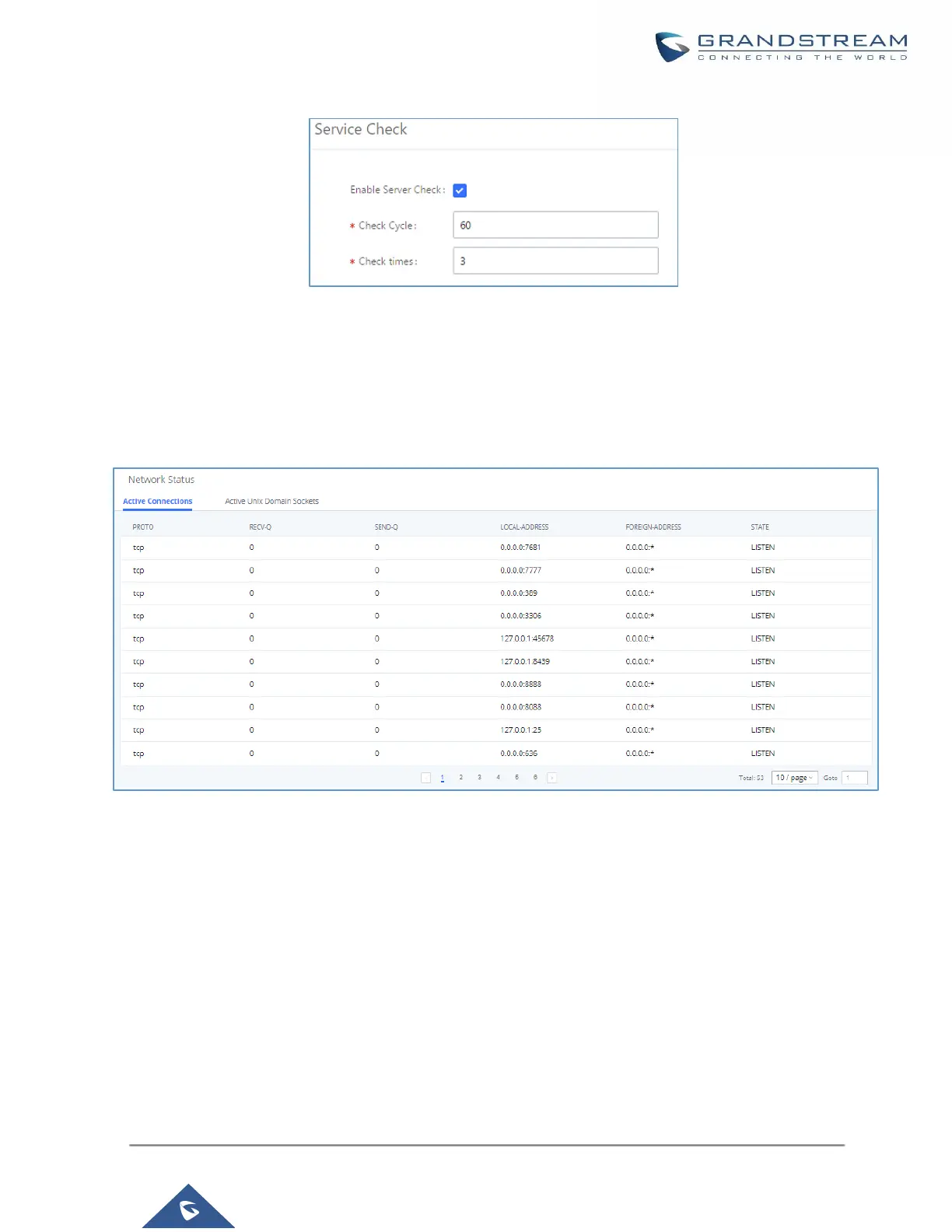

Figure 370: Service Check

Network Status

In UCM630X Web GUI→System Status→Network Status, the users can view active Internet connections. This

information can be used to troubleshoot connection issue between UCM630X and other services.

Figure 371: Network Status
