P a g e | 412

UCM630X Series User Manual

Version 1.0.11.10

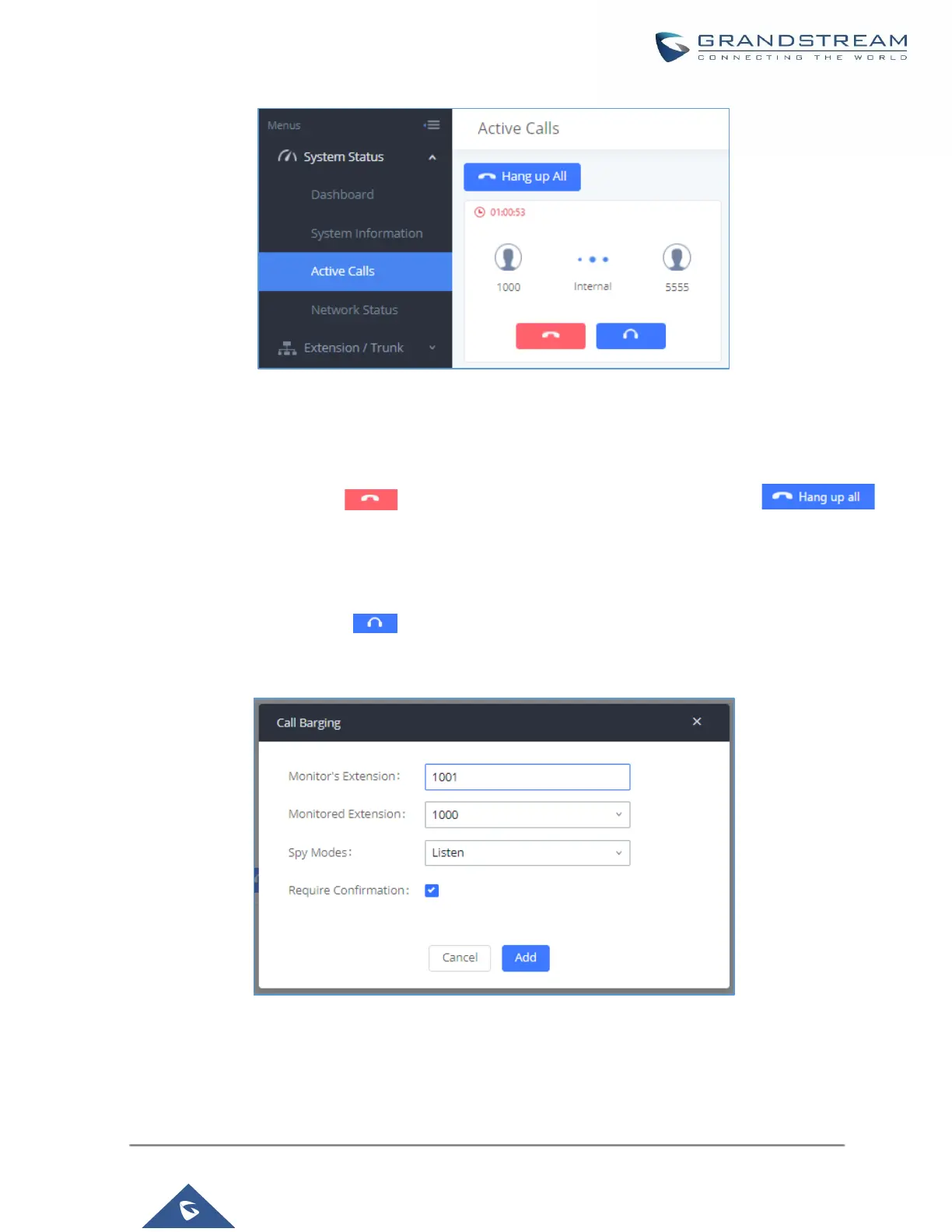

Figure 223: Call Connection more than one hour

Hang Up Active Calls

To hang up an active call, click on icon in the active call dialog. Users can also click on

to hang up all active calls.

Call Monitor

During an active call, click on icon and the monitor dialog will pop up.

Figure 224: Configure to Monitor an Active Call
