UCM630X Series User Manual

Version 1.0.11.10

Password

Configure the password of the IPC device. This is from the IPC device and it’s

used for UCM to access IPC device. This option is optional and it’s needed

when the username/password is configured on the IPC device.

Transmission Protocol

Configure UDP or TCP. Default setting is UDP.

User Settings

Accessible Members

Configure the extension or extension group which can dial the IPC device. Only

local extension/extension group is allowed.

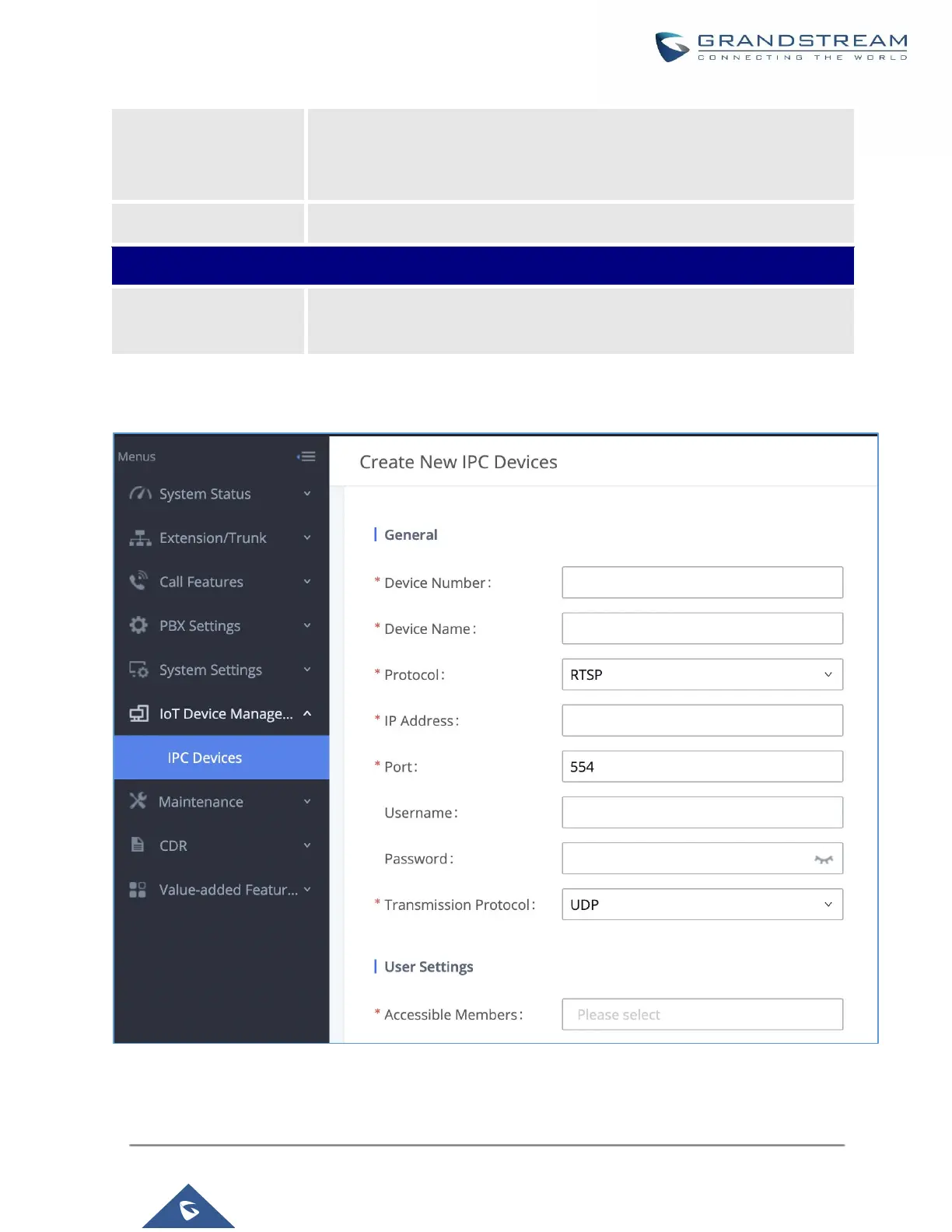

Figure 251: IPC Devices Settings
