P a g e | 519

UCM630X Series User Manual

Version 1.0.11.10

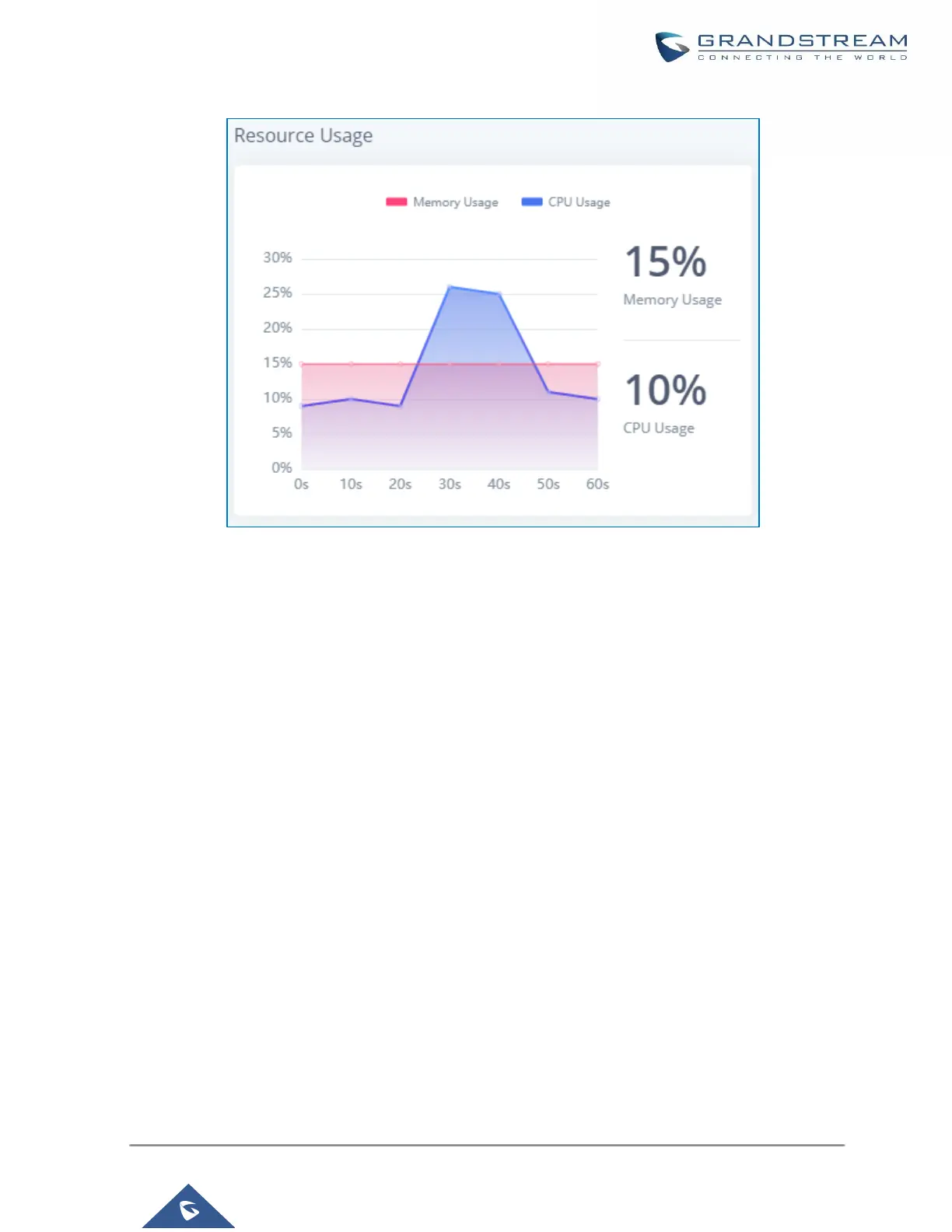

Figure 299: System Status→Resource Usage

System Events

The UCM630X can monitor important system events, log the alerts, and send Email notifications to the system

administrator.

Alert Events List

The system alert events list can be found under Web GUI → Maintenance → System Events. The following

event and their actions are currently supported on the UCM630X which will have alert and/or Email generated if

occurred:
