P a g e | 162

UCM630X Series User Manual

Version 1.0.11.10

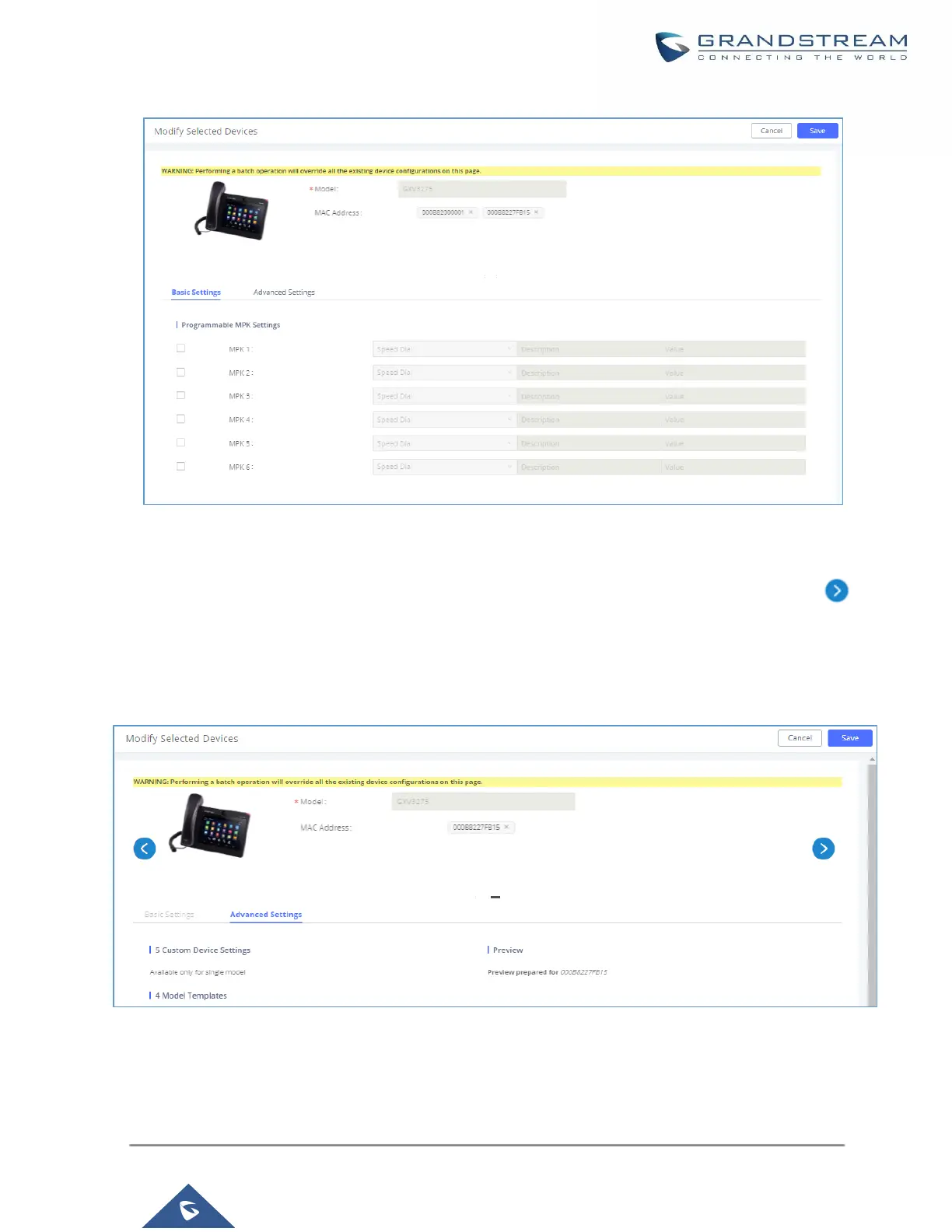

Figure 78: Modify Selected Devices - Same Model

If selected devices are of different models, the configuration dialog is like the following figure. Click on to

view more devices of other models. Users are only allowed to make modifications to the Global Templates and

Global Policy level.

Figure 79: Modify Selected Devices - Different Models
