P a g e | 535

UCM630X Series User Manual

Version 1.0.11.10

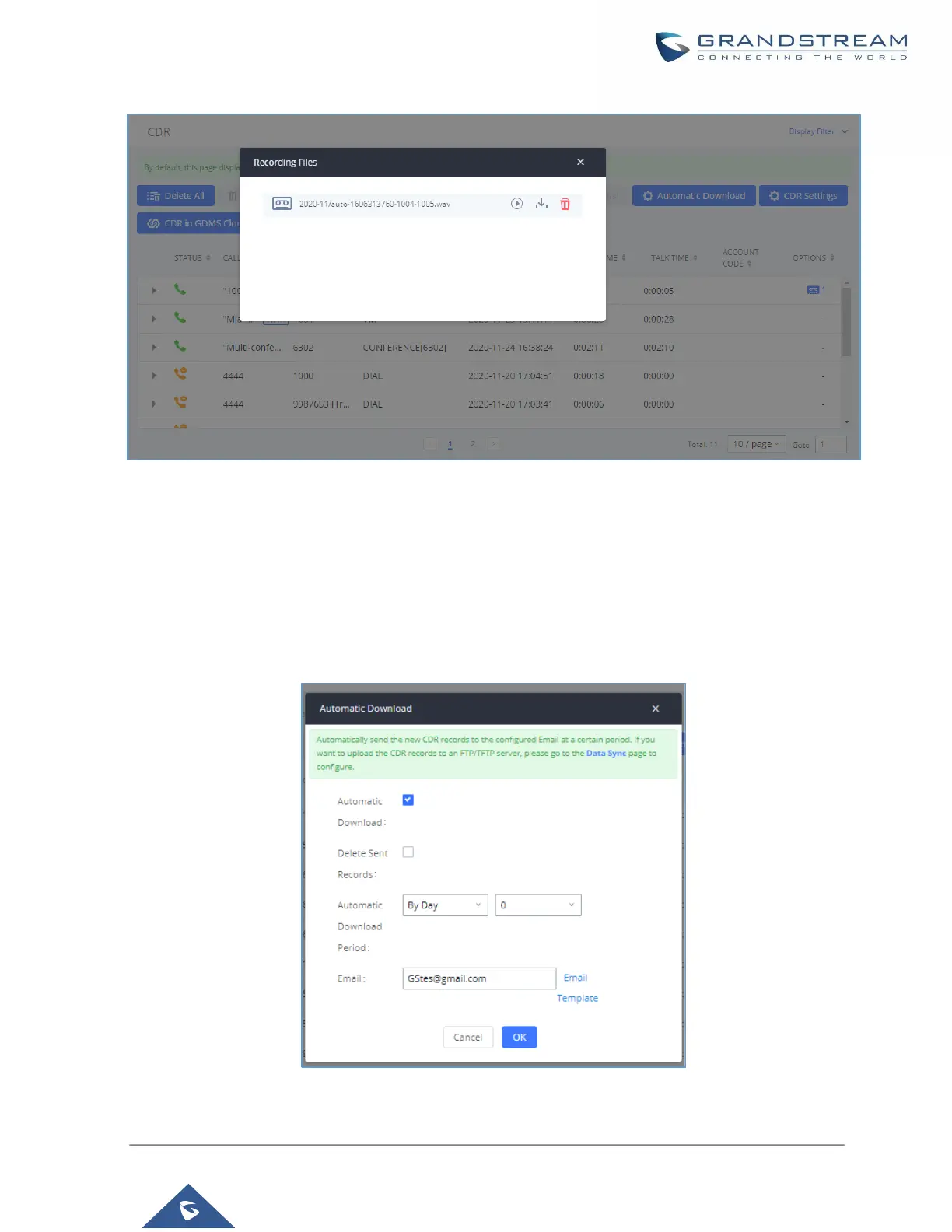

Figure 311: Call Report Entry with Audio Recording File

• Automatic Download CDR Records

User could configure the UCM630X to automatically download the CDR records and send the records to

multiple Email recipients in a specific hour. Click on “Automatic Download Settings” and configure the

parameters in the dialog below.

Figure 312: Automatic Download Settings
