P a g e | 374

UCM630X Series User Manual

Version 1.0.11.10

Switchboard

Switchboard is a Web GUI tool for call queue monitoring and management, admin can access to it from the

menu Call Features→Call Queue then press “Switchboard”.

Following page will be displayed:

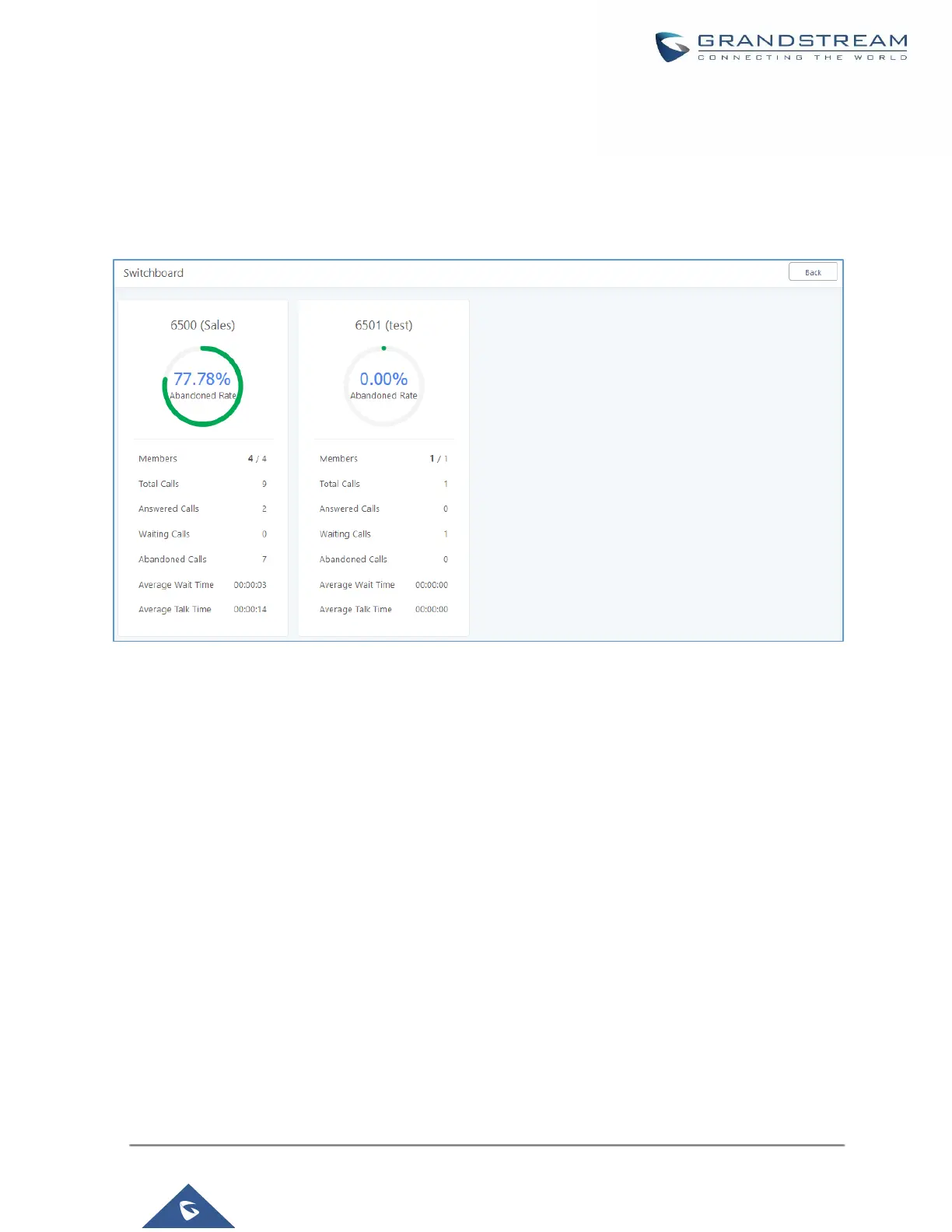

Figure 193: Switchboard Summary

Page above summarizes the available queues statistics and if one of the queues is clicked the user will be

directed to page below:
