P a g e | 105

UCM630X Series User Manual

Version 1.0.11.10

UCM can also act as an LDAP client to download phonebook entries from another LDAP server.

To access the LDAP server and client settings, go to Web GUI→Settings→LDAP Server.

LDAP Server Configurations

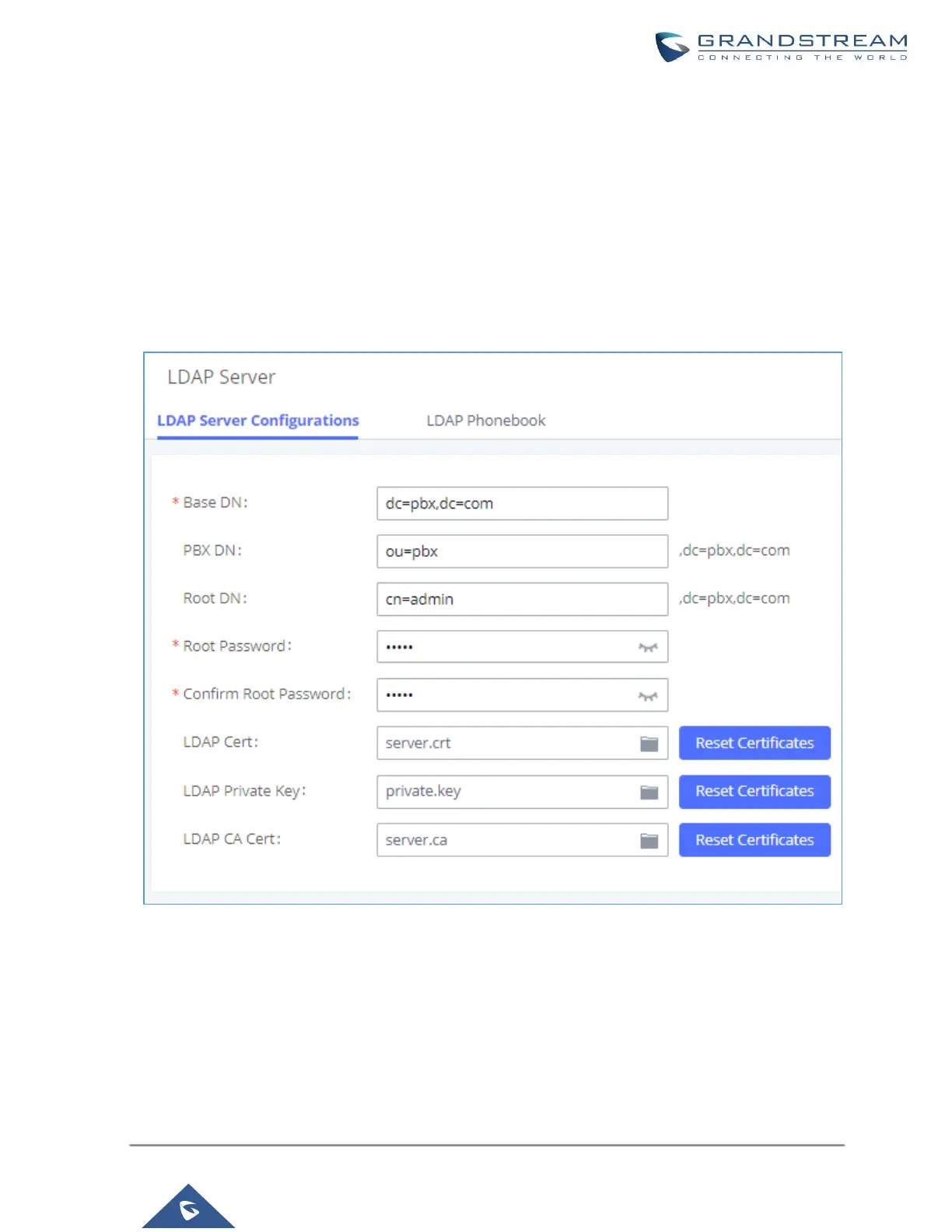

The following figure shows the default LDAP server configurations on the UCM630X.

Figure 37: LDAP Server Configurations

The UCM630X LDAP server supports anonymous access (read-only) by default. Therefore, the LDAP client

does not have to configure a username and password to access the phonebook directory. The "Root DN" and

"Root Password" here are for LDAP management and configuration where users will need to provide for

authentication purposes before modifying the LDAP information.
