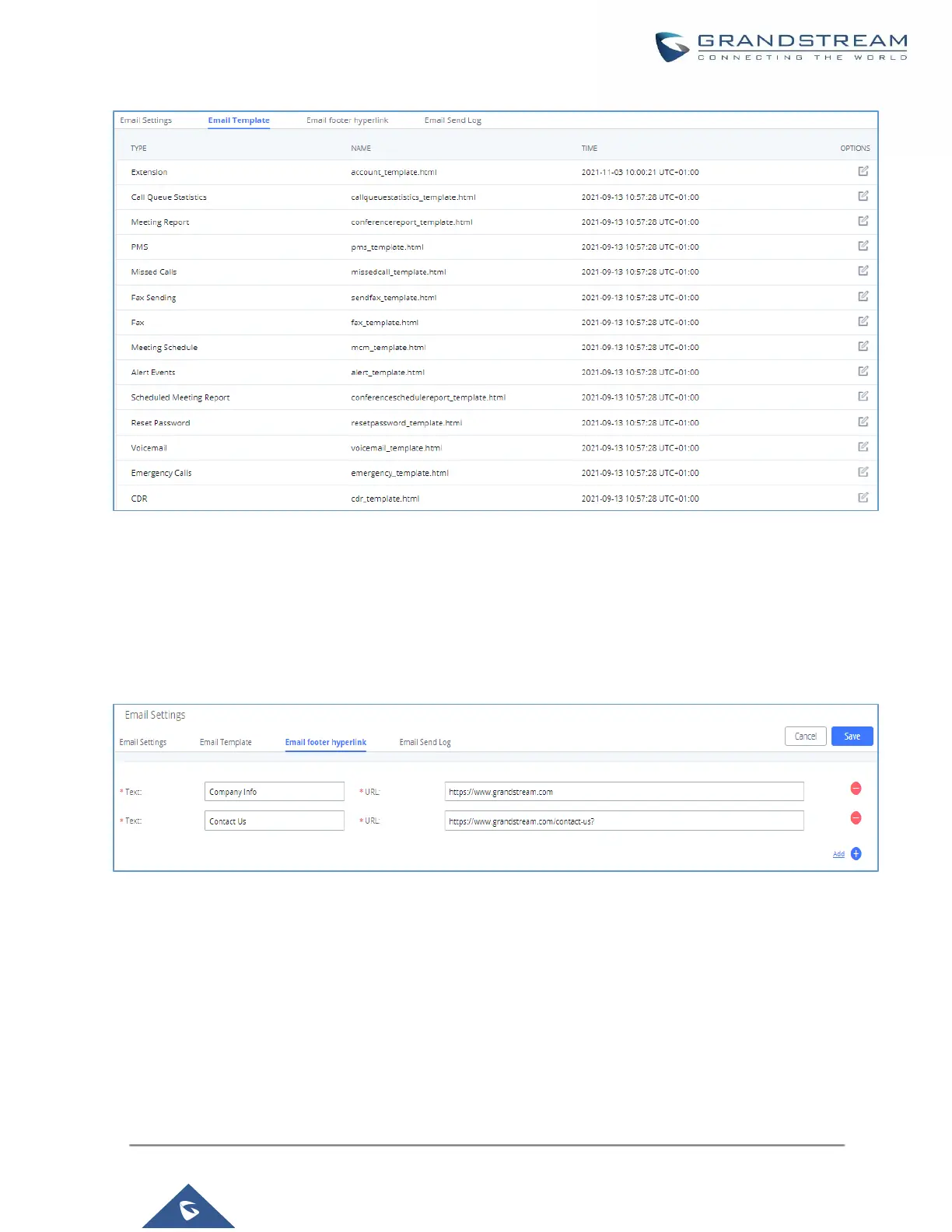

Figure 55: Email Template

Email Footer Hyperlink

Under UCM Web GUI→System Settings→Email Settings→Email Footer Hyperlink, users could edit the text

and URL to modify the email footer hyperlink.

Figure 56: Email Footer Hyperlink

Email Send Log

Under UCM Web GUI→System Settings→Email Settings→Email Send Log, users could search, filter, and

check whether the Email is sent out successfully or not. This page will also display the corresponding error
