Once settings on admin access are configured:

2. Click on and .

3. Logout from admin access.

4. Login to the UCM as user and navigate under “User Portal→Value-added Feature→CRM User Settings”.

Click on “Enable CRM” and enter the username/password associated with the CRM account then click on

and . The status will change from “Logged Out” to “Logged In”. User can start then using

SugarCRM features.

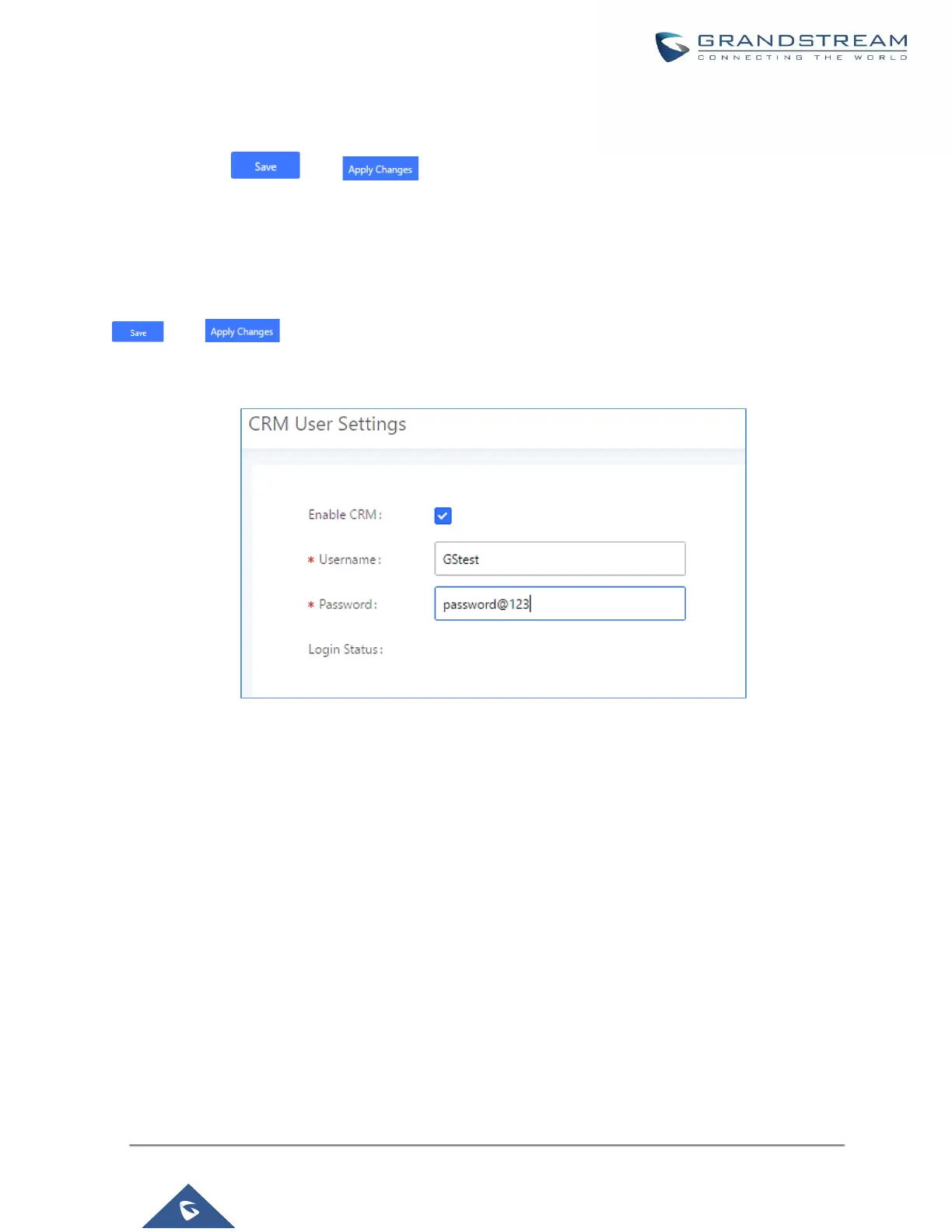

Figure 267: CRM User Settings

ZohoCRM

Configuration page of the ZohoCRM can be accessed via admin login, on the UCM WebGUI→Value-added

Features→CRM.
