P a g e | 106

UCM630X Series User Manual

Version 1.0.11.10

The default phonebook list in this LDAP server can be viewed and edited by clicking on/for the first phonebook

under LDAP Phonebook.

The UCM630X support secure LDAP (LDAPS) where the communication is encrypted and secure.

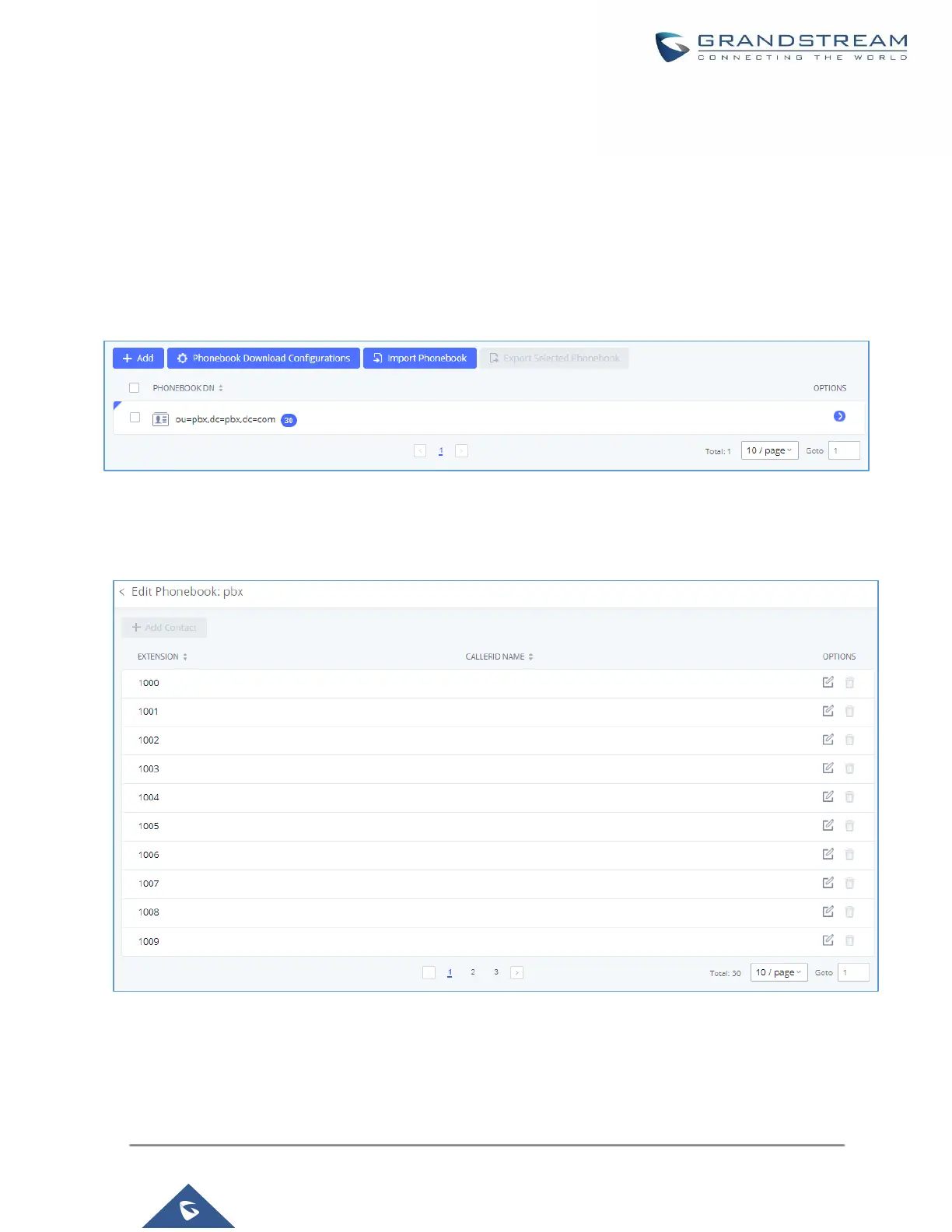

Figure 38: Default LDAP Phonebook DN

Figure 39: Default LDAP Phonebook Attributes
