STATUS AND REPORTING

PBX Status

The UCM630X monitors the status for Trunks, Extensions, Queues, Conference Rooms, Interfaces, Storage

Device Life (eMMC lifetime), the number of public/random video meeting and Parking lot. It presents

administrators the real-time status in different sections under Web GUI→System Status→Dashboard.

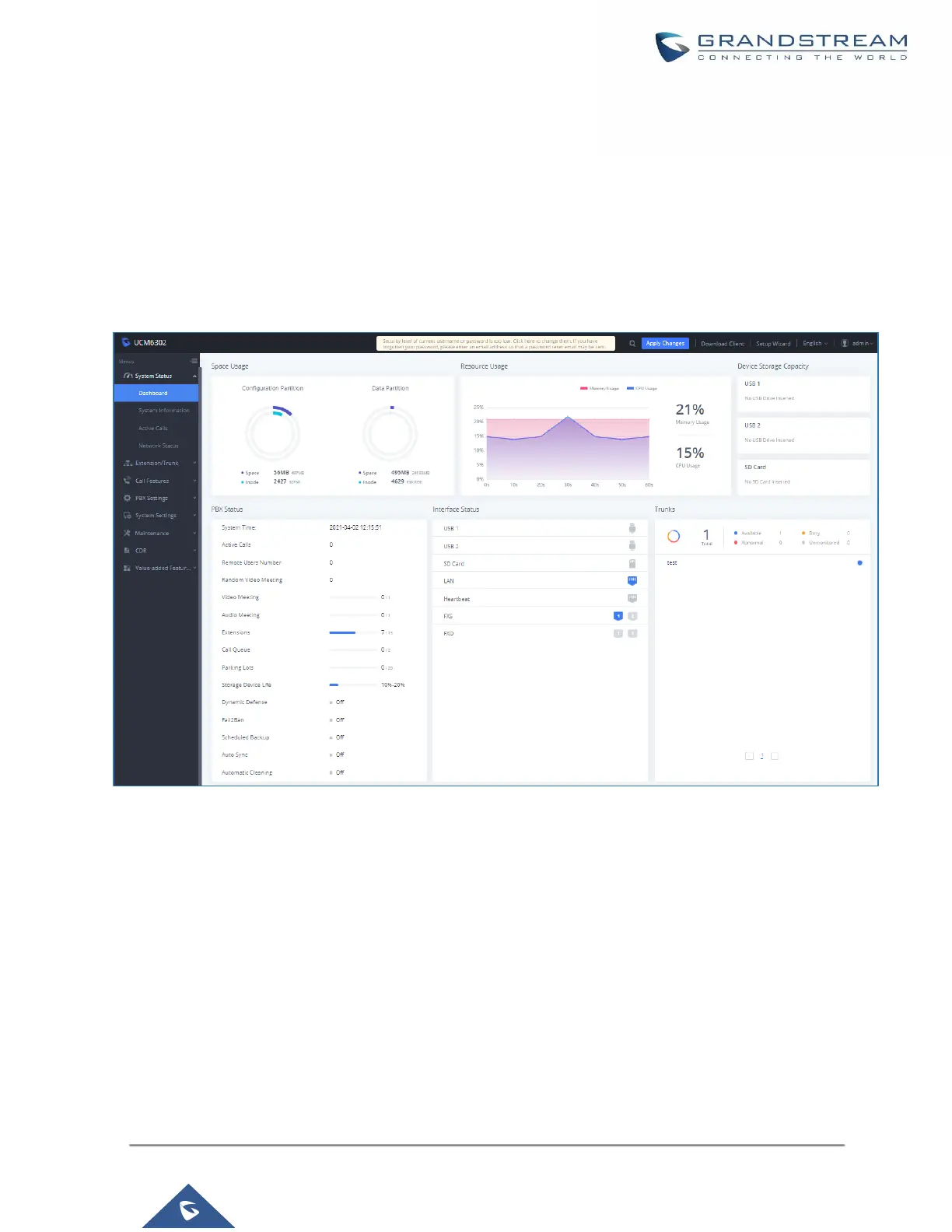

Figure 293: Status→PBX Status

Trunks

Users could see all the configured trunk status in this section.
