P a g e | 518

UCM630X Series User Manual

Version 1.0.11.10

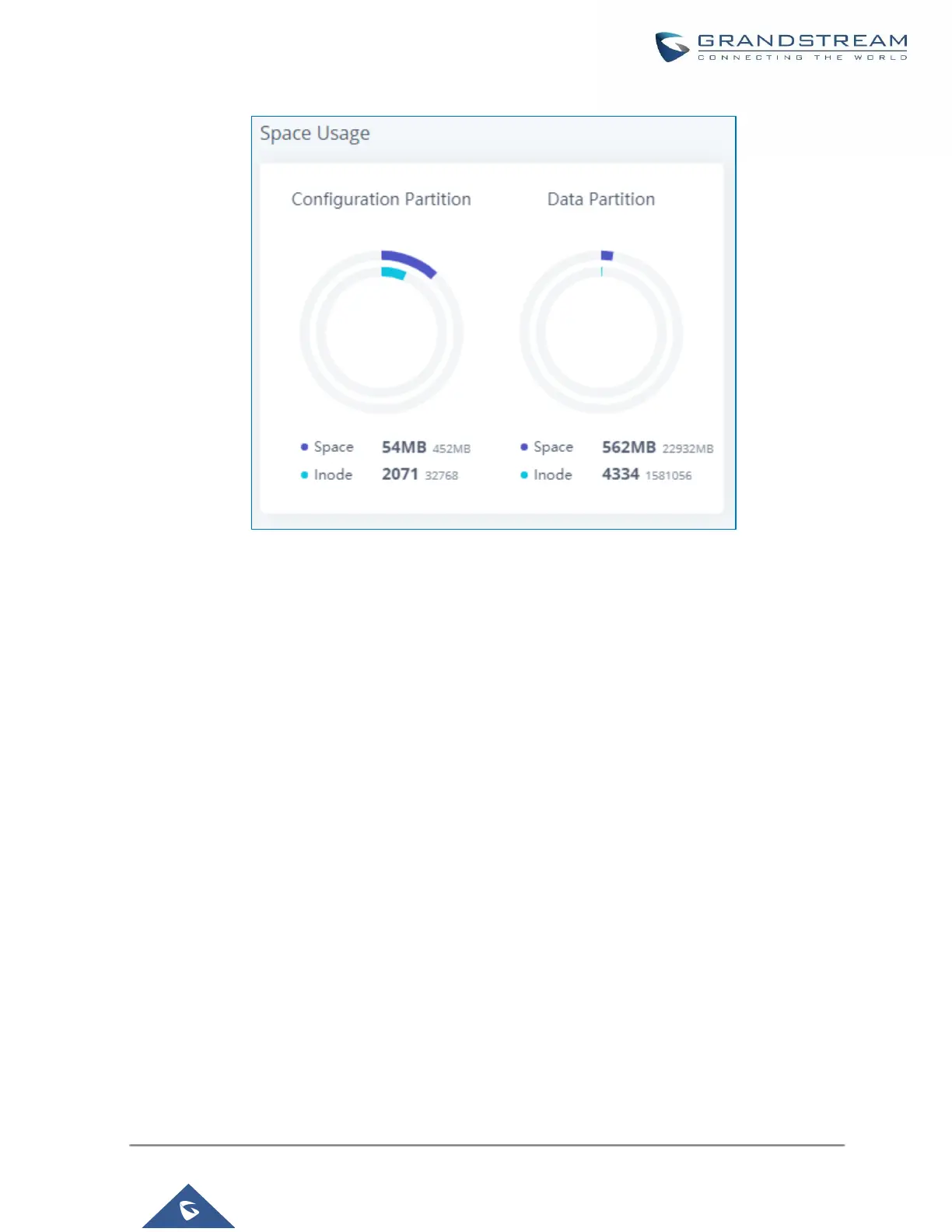

Figure 298: System Status→Storage Usage

Resource Usage

When configuring and managing the UCM630X, users could access resource usage information to estimate the

current usage and allocate the resources accordingly. Under Web GUI → System Status → Dashboard →

Resource Usage, the current CPU usage and Memory usage are shown in the pie chart.
