• To factory reset the device, click on reset icon, then all the configurations and data will be reset to factory

default.

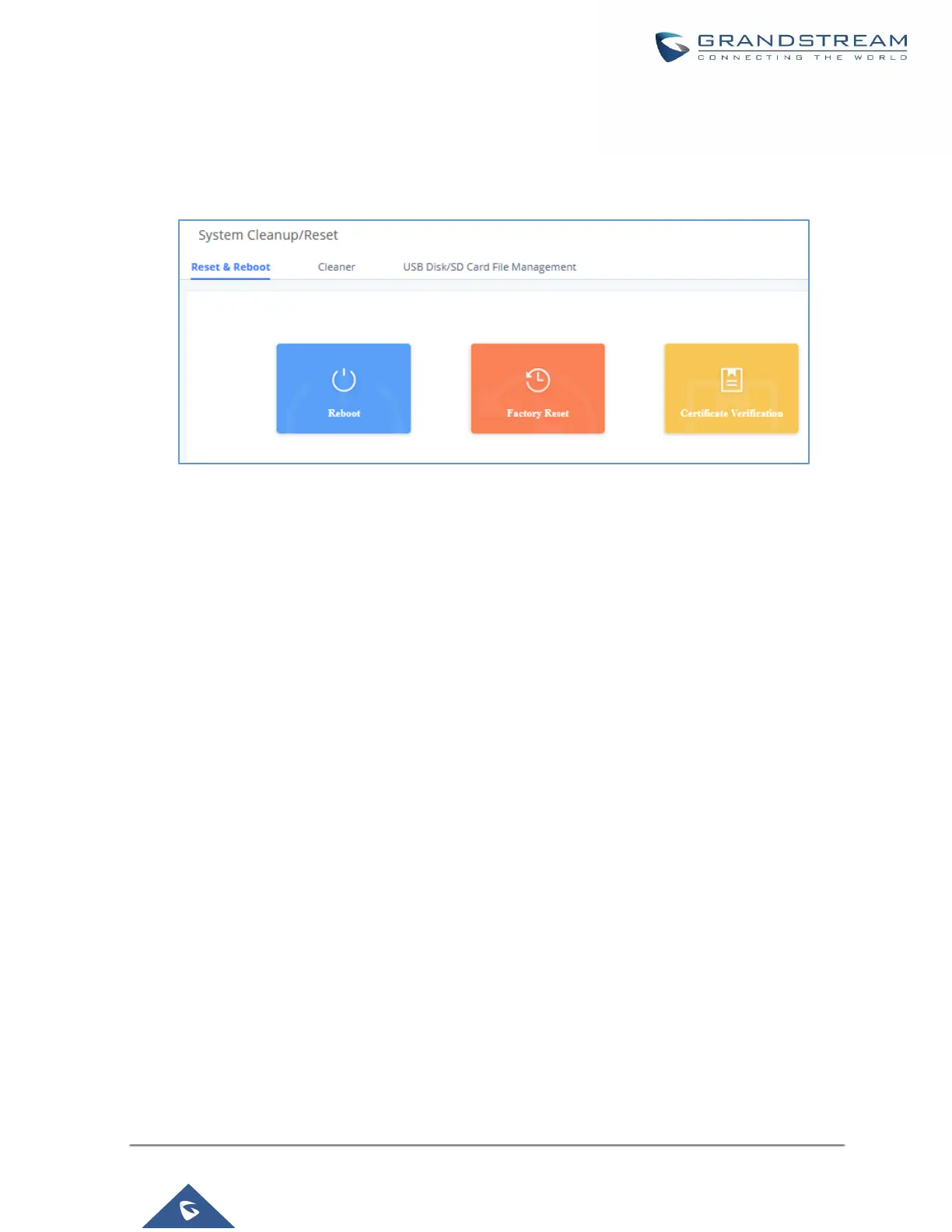

Figure 358: Reset and Reboot

• User can also verify UCM certificate under the same path.

Cleaner

Users could configure to clean the Call Detail Report/Voice Records/Voice Mails etc… manually and

automatically under Web GUI→Maintenance→System Cleanup/Reset→Cleaner.

The following screenshot show the settings and parameters to configure the manual cleaner feature on

UCM630X.
