LH79524/LH79525 User’s Guide Color Liquid Crystal Display Controller
Version 1.0 4-17
4.4 Advanced LCD Interface
The Advanced LCD Interface (ALI) provides the additional processing required to inter-
face the LH79524 and LH79525 to AD-TFT, HR-TFT, or any display technology that
uses this method of connection. Figure 4-5 shows the ALI between the CLCDC and the
LCD output pins.
The ALI is programmed via its16-bit APB interface and receives control signals and display
data from the CLCDC. The ALI converts the display data to a format suitable for direct con-
nection to the Row and Column driver ICs in AD-TFT, HR-TFT displays, or any display
using similar technology.

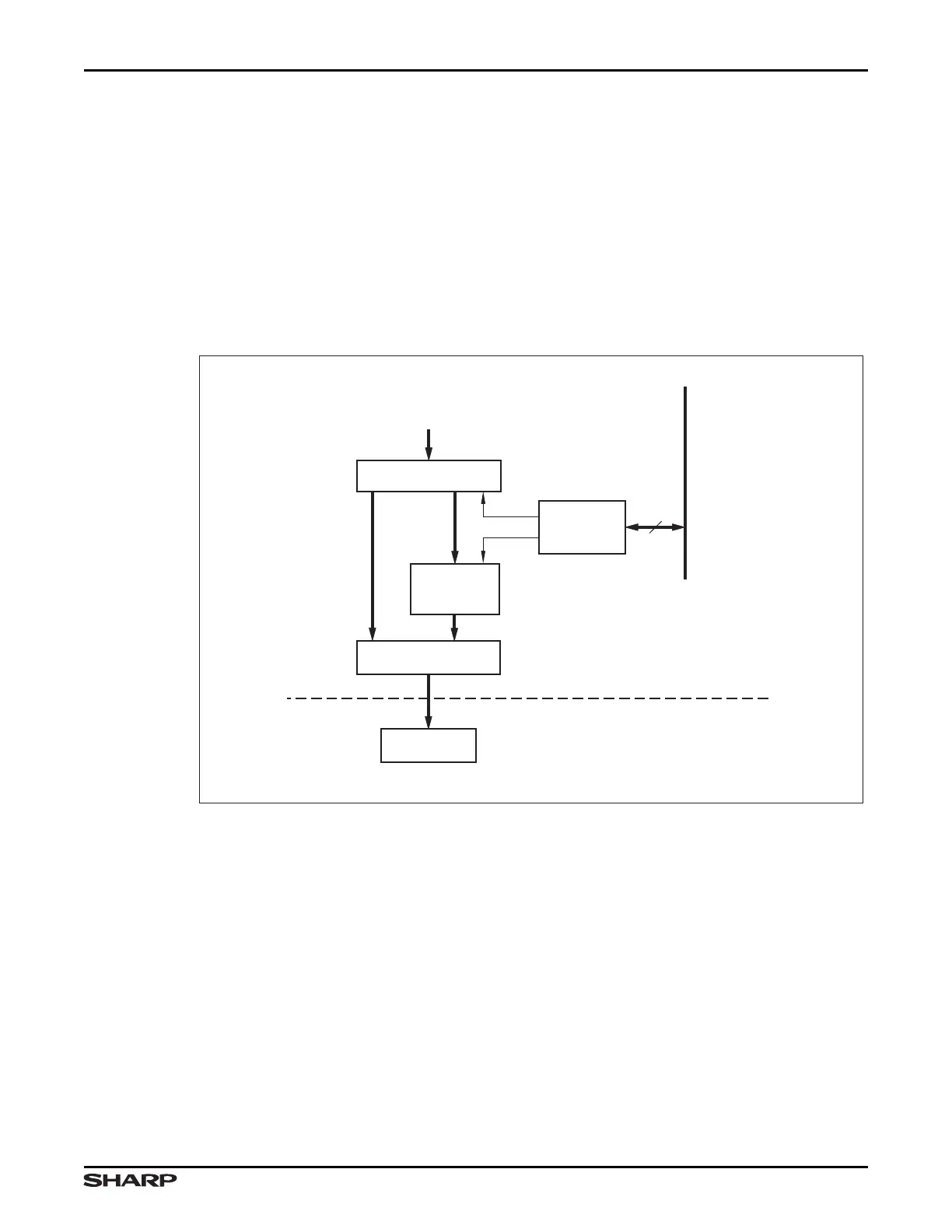

Figure 4-5. ALI Simplified Block Diagram
LH79525-45
ROUTER
DATA AND
CONTROL SIGNALS
FROM CLCDC
ADVANCED
PERIPHERAL
BUS (APB)
BYPASS
DATA PATH
APB
INTERFACE/
REGISTERS
INTERNAL TO
THE SoC
EXTERNAL TO
THE SoC
ALI TIMING
CONVERTER
LCD PANEL
NOTE: ALI Timing Converter shown above the dashed line.
PIN MUX
16
