LH79524/LH79525 User’s Guide Synchronous Serial Port

Version 1.0 14-5

14.1.3 Texas Instruments Frame Format

For the Texas Instruments DSP-compatible synchronous serial interface frame format, the

SSPFRM pin is pulsed for one serial clock period stating at its rising edge, prior to each

frame's transmission. For this frame format, the SSP outputs data on the rising edge of the

clock and latches input data on the rising edge of the clock.

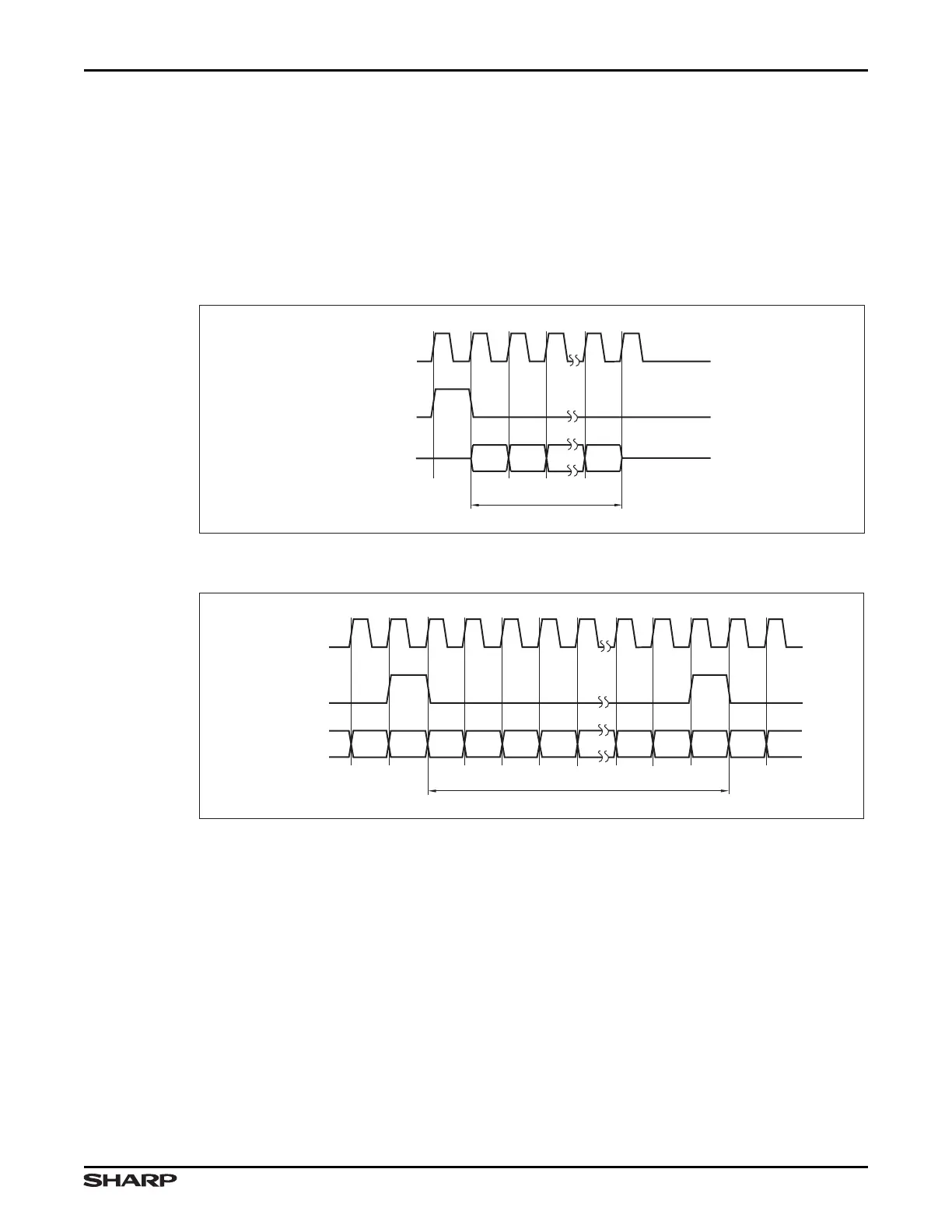

Figure 14-4 shows the Texas Instruments DSP format for a single transfer. Figure 14-5

shows the same format for continuous transfers.

Figure 14-4. Texas Instruments Synchronous Serial Frame Format (Single Transfer)

Figure 14-5. Texas Instruments Synchronous Serial Frame Format

(Continuous Transfers)

SSPCLK

SSPFRM

SSPTX/

SSPRX

LSBMSB

4 to 16 BITS

LH79525-76

SSPCLK

SSPFRM

SSPTX/

SSPRX

LSB

MSB

4 to 16 BITS

LH79525-77
