Synchronous Serial Port LH79524/LH79525 User’s Guide

14-4 Version 1.0

14.1.2 Motorola SPI Frame Format

For the Motorola SPI format, the serial frame pin (SSPFRM) is active LOW. The SPO and

SPH bits in SSP Control Register 0 influence SSPCLK and SSPFRM operation in Single

and Continuous Modes.

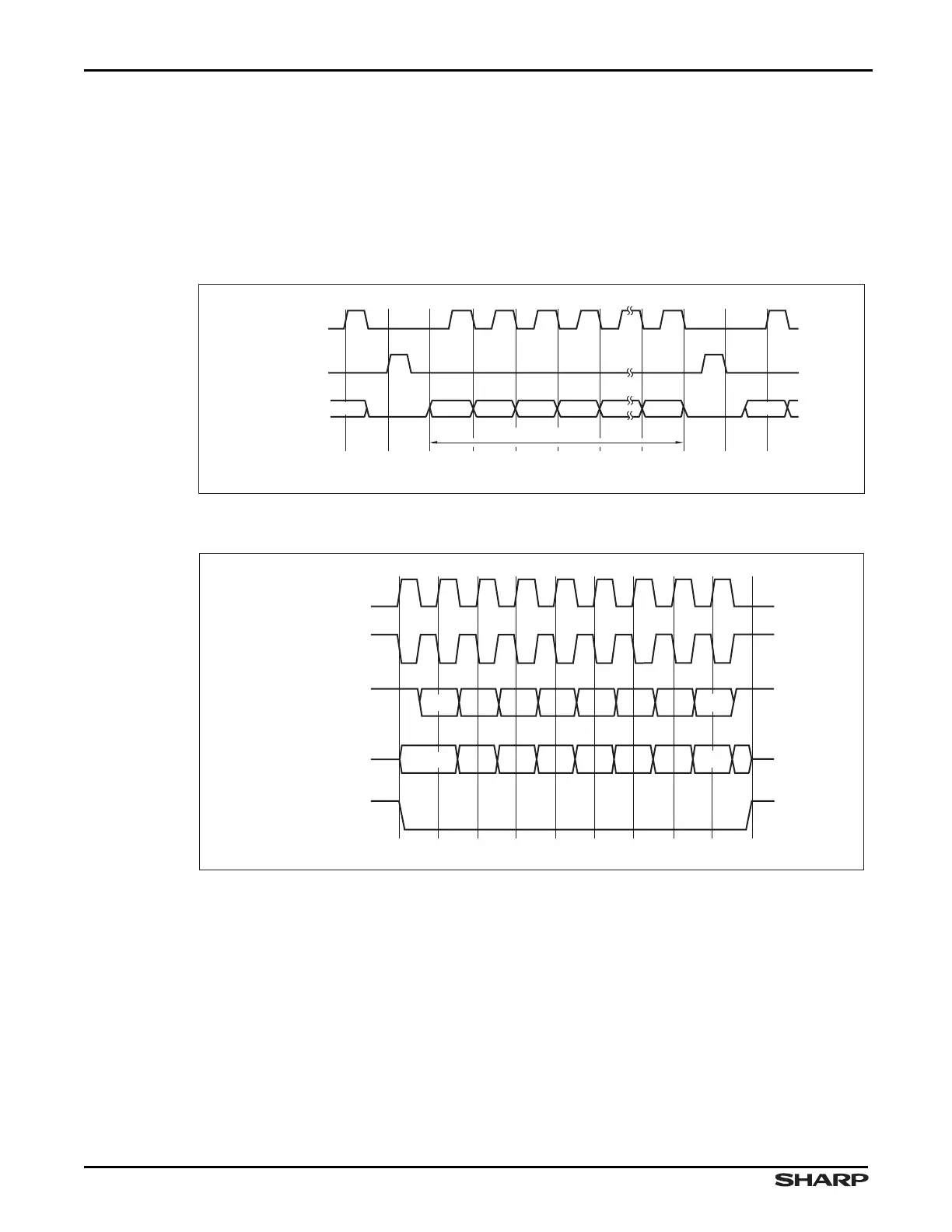

Figure 14-2 and Figure 14-3 show the Motorola SPI frame format for single data transfers,

continuous data transfers, and when SPH equals 0 or 1.

Figure 14-2. Motorola SPI Frame Format (Continuous Transfer)

Figure 14-3. Motorola SPI Frame Format with SPH = 0

LH79525-7

SSPCLK

SSPFRM

SSPTXD/

SSSRXD

4 to 16 BITS

LSB

NOTE: SPH = '0', SPO = '0'.

LSB

MSB

SSPFRM

SSPRX

(from slave)

SSPTX

(from master)

SSPCLK

(SPO = 1)

SSPCLK

(SPO = 0)

NOTE: Q = Undefined.

MSB

MSB LSB

LSB Q

LH79525-75
