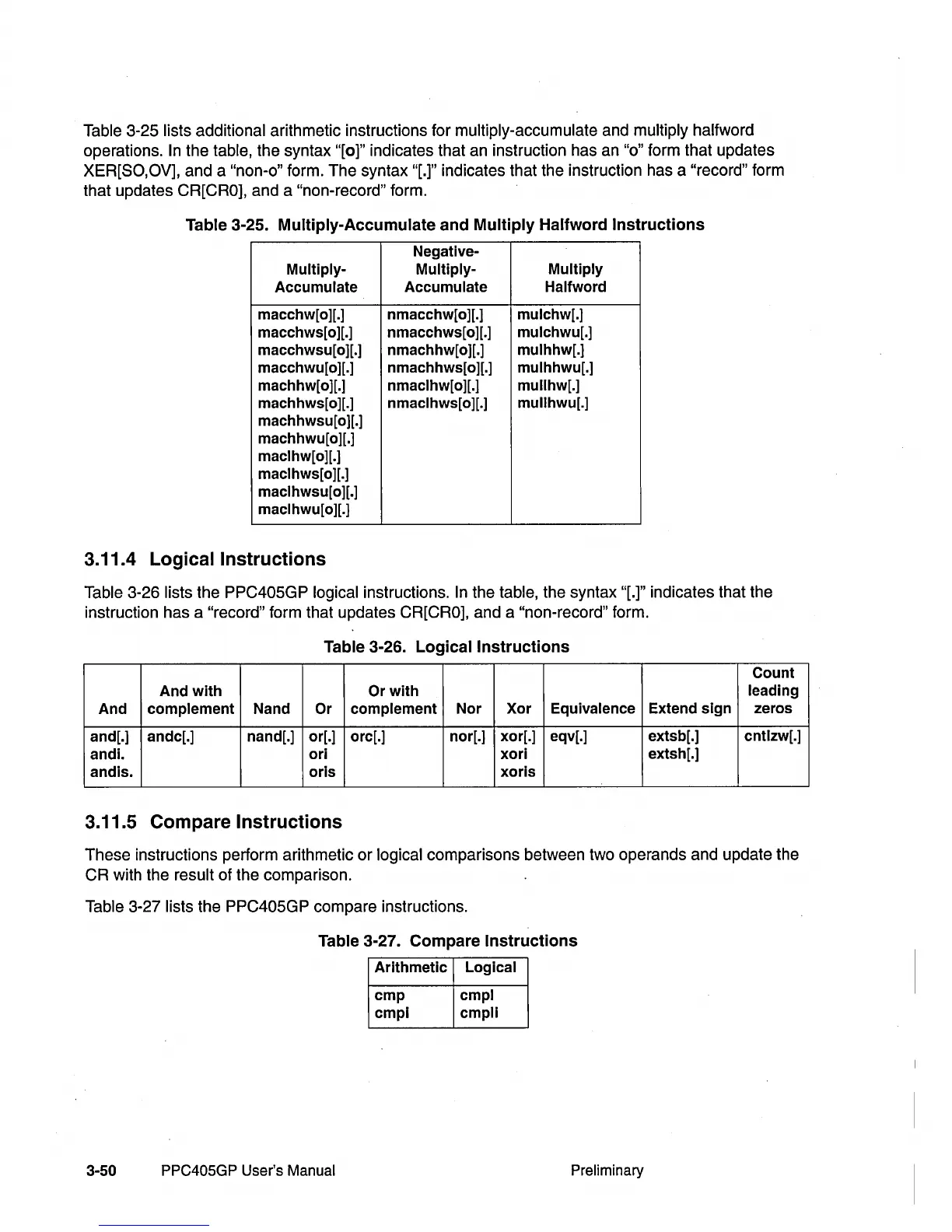

Table 3-25 lists additional arithmetic instructions for multiply-accumulate and multiply halfword
operations.
In the table, the syntax "[0]" indicates that an instruction has an "0" form that updates
XER[SO,OV], and a "non-o" form. The syntax "[.]" indicates that the instruction has a "record" form
that updates
CR[CRO], and a "non-record" form.
Table 3-25. Multiply-Accumulate and Multiply Halfword Instructions
Negative-
Multiply-
Multiply- Multiply
Accumulate
Accumulate Halfword
macchw[o][.] nmacchw[o][.] mulchw[.]
macchws[o][.]
nmacchws[o][.] mulchwu[.]
macchwsu[o][.] nmachhw[o][.]
mulhhw[.]
macchwu[o][.] nmachhws[o][.] mulhhwu[.]
machhw[o][.]
nmaclhw[o][.] mullhw[.]
machhws[o][.] nmaclhws[
0 ][.]
mullhwu[.]
machhwsu[ 0 ][.]
machhwu[ 0 ][.]
maclhw[o][.]
maclhws[o][.]
maclhwsu[
0 ][.]
maclhwu[o][.]
3.11.4 Logical Instructions
Table 3-26 lists the PPC405GP logical instructions. In the table, the syntax "[.]" indicates that the
instruction has a
"record" form that updates CR[CRO], and a "non-record" form.
Table 3-26. Logical Instructions
Count
And with
Or with
leading
And complement Nand
Or
complement Nor Xor Equivalence
Extend sign zeros
and[.] andc[.] nand[.] or[.] orc[.]
nor[.] xor[.] eqv[.] extsb[.]
cntlzw[.]
andi.
ori xori
extsh[.]
andis. oris
xoris
3.11.5 Compare Instructions
These instructions perform arithmetic or logical comparisons between two operands and update the
CR with the result of the comparison.
Table 3-27 lists the PPC405GP compare instructions.
Table 3-27. Compare Instructions
Arithmetic Logical
cmp cmpl
cmpi
cmpli
3-50 PPC405GP User's Manual
