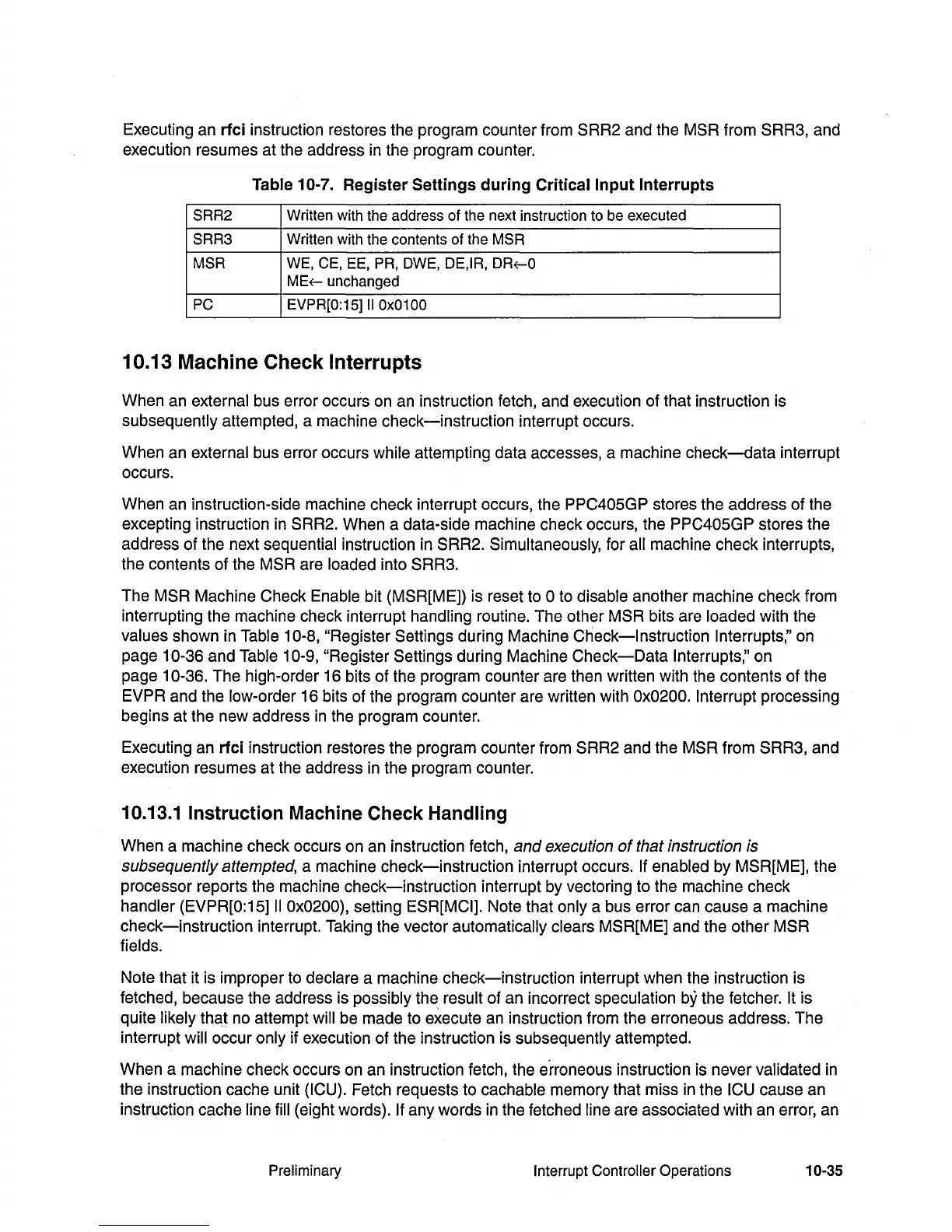

Executing an
rfci
instruction restores the program counter from SRR2 and the MSR from SRR3, and
execution resumes at the address
in
the program counter.
Table 10-7.
Register
Settings
during
Critical
Input
Interrupts
SRR2
Written
with
the
address
of
the
next
instruction
to
be
executed
SRR3
Written
with
the
contents
of
the
MSR
MSR
WE,
CE,
EE,
PR,
OWE,
OE,IR,
OR~O
ME~
unchanged
PC
EVPR[O:15]
II
Ox0100
10.13 Machine Check Interrupts
When an external bus error occurs on an instruction fetch, and execution of that instruction is
subsequently attempted, a machine
check-instruction
interrupt occurs.
When an external bus error occurs while attempting data accesses, a machine
check-data
interrupt
occurs.
When an instruction-side machine check interrupt occurs, the PPC405GP stores the address of the
excepting instruction
in
SRR2. When a data-side machine check occurs, the PPC405GP stores the
address of the next sequential instruction in SRR2. Simultaneously, for all machine check interrupts,
the contents of the MSR are loaded into SRR3.
The MSR Machine Check Enable bit (MSR[ME]) is reset to
0 to disable another machine check from
interrupting the machine check interrupt handling routine. The other MSR bits are loaded with the
values shown in Table
10-8, "Register Settings during Machine
Check-Instruction
Interrupts," on
page
10-36 and Table 10-9, "Register Settings during Machine
Check-Data
Interrupts," on
page
10-36. The high-order 16 bits of the program counter are then written with the contents of the
EVPR and the low-order 16 bits of the program counter are written with
Ox0200. Interrupt processing
begins at the new address
in
the program counter.
Executing an
rfci
instruction restores the program counter from SRR2 and the MSR from SRR3, and
execution resumes at the address
in
the program counter.
10.13.1 Instruction Machine Check Handling
When a machine check occurs on an instruction fetch,
and
execution
of
that instruction is
subsequently attempted, a machine
check-instruction
interrupt occurs. If enabled by MSR[ME], the
processor reports the machine
check-instruction
interrupt by vectoring to the machine check
handler (EVPR[0:15]
II
Ox0200), setting ESR[MCI]. Note that only a bus error can cause a machine
check-instruction
interrupt. Taking the vector automatically clears MSR[ME] and the other MSR
fields.
Note that it is improper to declare a machine
check-instruction
interrupt when the instruction is
fetched, because the address is possibly the result of an incorrect speculation
by the fetcher. It is
quite likely that no attempt will be made to execute an instruction from the erroneous address. The
interrupt will occur only if execution of the instruction is subsequently attempted.
When a machine check occurs on an instruction fetch, the erroneous instruction is never validated
in
the instruction cache unit (ICU). Fetch requests to cachable memory that miss
in
the ICU cause an
instruction cache line fill (eight words).
If any words
in
the fetched line are associated with an error, an
Preliminary
Interrupt Controller Operations 10-35
