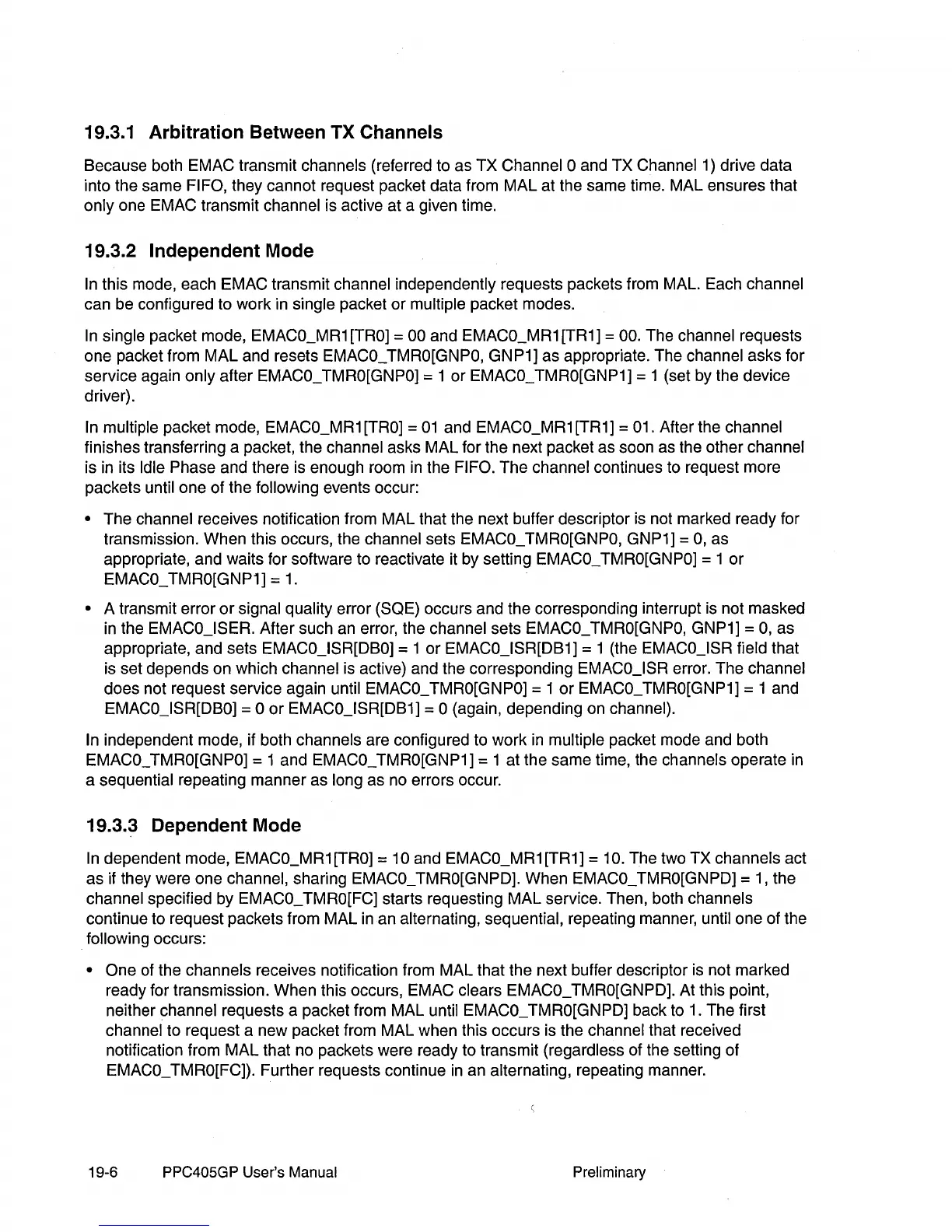

19.3.1 Arbitration Between TX Channels
Because both EMAC transmit channels (referred to as
TX
Channel ยฐ and TX Channel 1) drive data
into the same
FIFO, they cannot request packet data from
MAL
at the same time. MAL ensures that
only one EMAC transmit channel is active at a given time.
19.3.2 Independent Mode
In this mode, each EMAC transmit channel independently requests packets from MAL. Each channel
can be configured to work in single packet or
multiple packet modes.
In
single packet mode, EMACO_MR1
[TRO]
= 00 and EMACO_MR1 [TR1] = 00. The channel requests
one packet from
MAL
and resets EMACO_TMRO[GNPO, GNP1] as appropriate. The channel asks for
service again
only after EMACO_ TMRO[GNPO] = 1 or EMACO_ TMRO[GNP1] = 1 (set by the device
driver).
In multiple packet mode, EMACO_MR1
[TRO]
=
01
and EMACO_MR1 [TR1] = 01. After the channel
finishes transferring a packet, the channel asks
MAL
for the next packet as soon as the other channel
is in its
Idle Phase and there is enough room
in
the FIFO. The channel continues to request more
packets until one of the
following events occur:
โข The channel receives notification from MAL that the next buffer descriptor is not marked ready for
transmission. When this occurs, the channel sets
EMACO_ TMRO[GNPO, GNP1] = 0, as
appropriate, and waits for software to reactivate it by setting
EMACO_ TMRO[GNPO] = 1
or
EMACO_ TMRO[GNP1] = 1.
โข A transmit error
or
signal quality error (SQE) occurs and the corresponding interrupt is not masked
in the
EMACO_ISER. After such an error, the channel sets EMACO_ TMRO[GNPO, GNP1] = 0,
as
appropriate, and sets EMACO_ISR[DBO] = 1
or
EMACO_ISR[DB1] = 1 (the EMACO_ISR field that
is set depends on which channel is active) and the corresponding
EMACO_ISR error. The channel
does not request service again
until EMACO_TMRO[GNPO] = 1
or
EMACO_TMRO[GNP1] = 1 and
EMACO_ISR[DBO] = ยฐ
or
EMACO_ISR[DB1] = ยฐ (again, depending on channel).
In independent mode, if both channels are configured to work
in
multiple packet mode and both
EMACO_TMRO[GNPO] = 1 and EMACO_TMRO[GNP1] = 1 at the same time, the channels operate in
a sequential repeating manner as
long as no errors occur.
19.3.3 Dependent Mode
In
dependent mode, EMACO_MR1
[TRO]
= 10 and EMACO_MR1 [TR1] = 10. The two TX channels act
as if they were one channel, sharing
EMACO_ TMRO[GNPD]. When EMACO_ TMRO[GNPD] = 1, the
channel specified by
EMACO_ TMRO[FC] starts requesting
MAL
service. Then, both channels
continue to request packets from
MAL
in an alternating, sequential, repeating manner, until one of the
following occurs:
โข One of the channels receives notification from
MAL
that the next buffer descriptor is not marked
ready for transmission. When this occurs, EMAC clears
EMACO_ TMRO[GNPD]. At this point,
neither channel requests a packet from MAL
until EMACO_ TMRO[GNPD] back to 1. The first
channel to request a new packet from MAL when this occurs is the channel that received
notification from
MAL
that no packets were ready to transmit (regardless of the setting of
EMACO_ TMRO[FC]). Further requests continue
in
an alternating, repeating manner.
19-6 PPC405GP User's Manual Preliminary
