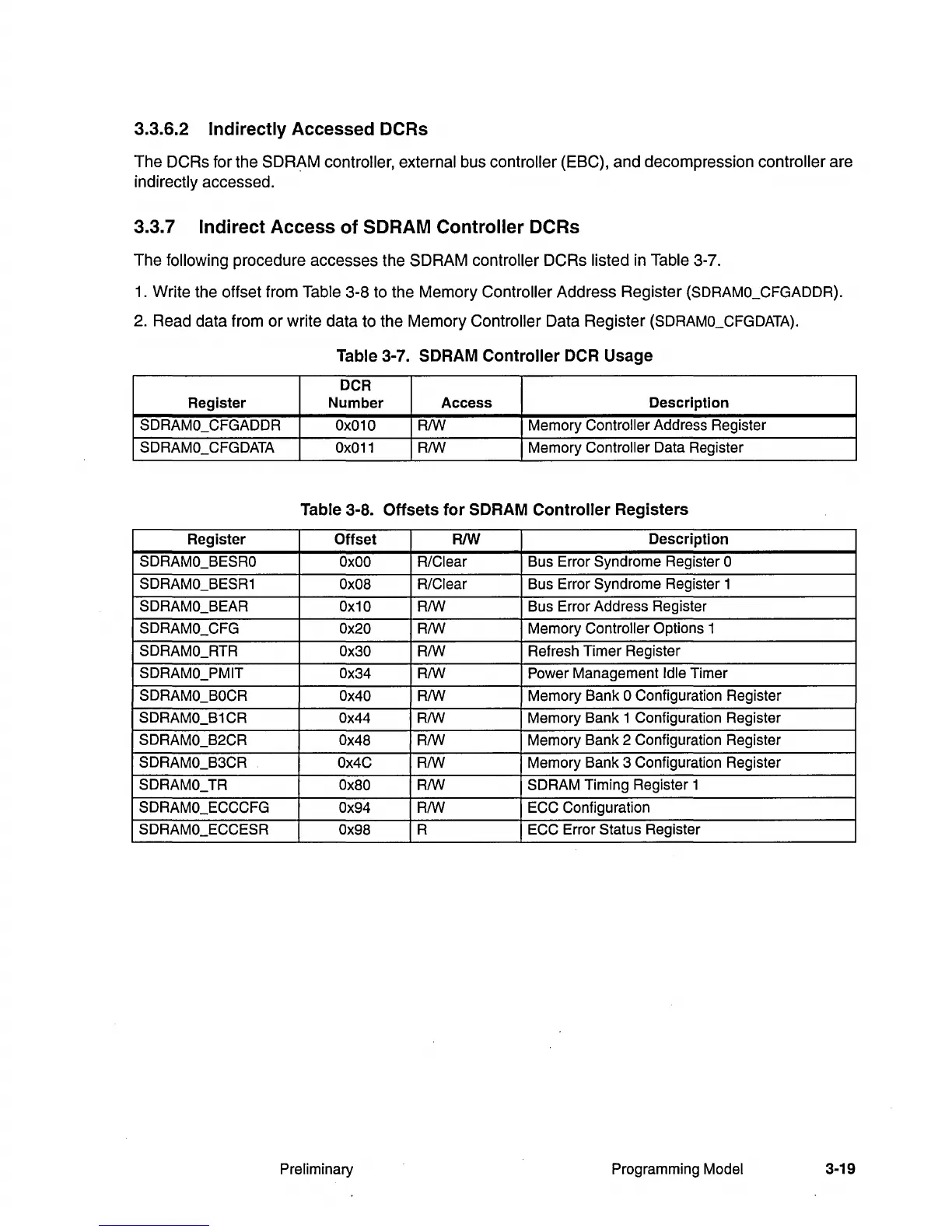

3.3.6.2 Indirectly Accessed DCRs
The DCRs for the SDRAM controller, external bus controller (ESC), and decompression controller are
indirectly accessed.
3.3.7 Indirect Access of SDRAM Controller DCRs
The following procedure accesses the SDRAM controller DCRs listed in Table 3-7.
1.
Write the offset from Table 3-8 to the Memory Controller Address Register (SDRAMO_CFGADDR).
2.
Read data from or write data to the Memory Controller Data Register (SDRAMO_CFGDATA).
Table 3-7. SDRAM Controller DCR Usage
DCR
Register
Number Access Description
SDRAMO_CFGADDR
Ox010 RIW
Memory Controller Address Register
SDRAMO_CFGDATA
Ox011 RIW
Memory Controller Data Register
Table 3-8. Offsets for SDRAM Controller Registers
Register Offset
RIW
Description
SDRAMO_BESRO
OxOO R/Clear
Bus Error Syndrome Register
0
SDRAMO_BESR1
Ox08 R/Clear
Bus Error Syndrome Register 1
SDRAMO_BEAR
Ox10 RIW
Bus Error Address Register
SDRAMO_CFG
Ox20 RIW Memory Controller Options 1
SDRAMO_RTR
Dx30 RIW
Refresh Timer Register
SDRAMO_PMIT
Ox34
RIW
Power Management Idle Timer
SDRAMO_BOCR
Ox40
RIW
Memory Bank 0 Configuration Register
SDRAMO_B1CR Ox44
RIW
Memory Bank 1 Configuration Register
SDRAMO_B2CR Ox48
RIW
Memory Bank 2 Configuration Register
SDRAMO_B3CR
Dx4C RIW
Memory Bank 3 Configuration Register
SDRAMO_TR
Ox8D RIW
SDRAM Timing Register 1
SDRAMD_ECCCFG
Ox94 RIW ECC Configuration
SDRAMO_ECCESR
Ox98 R
ECC Error Status Register
Preliminary Programming Model
3-19
