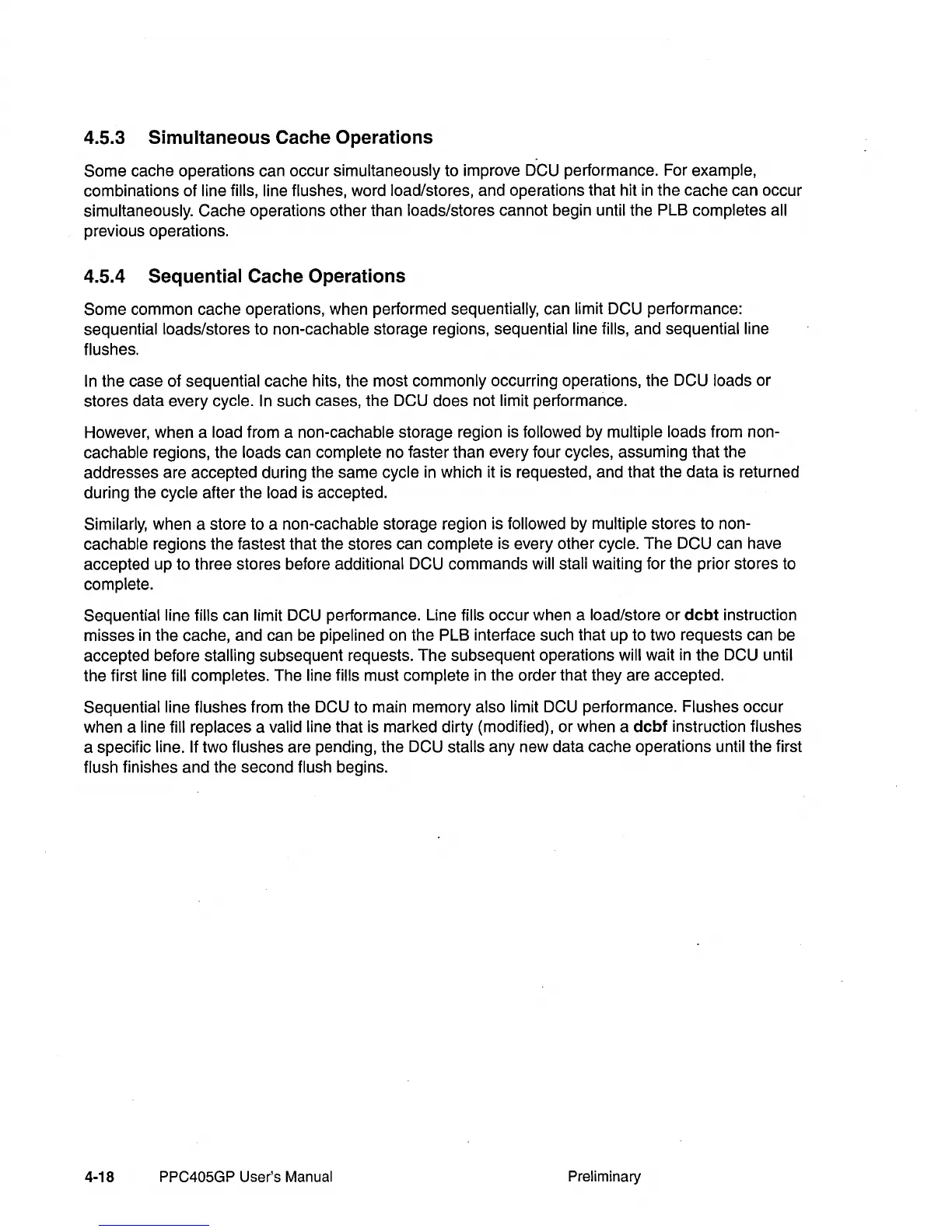

4.5.3 Simultaneous Cache Operations
Some cache operations can occur simultaneously to improve DCU performance. For example,
combinations of line fills, line flushes, word load/stores, and operations that hit
in
the cache can occur
simultaneously. Cache operations other than loads/stores cannot begin until the PLB completes all
previous operations.
4.5.4 Sequential Cache Operations
Some common cache operations, when performed sequentially, can limit DCU performance:
sequential loads/stores to non-cachable storage regions, sequential line fills, and sequential line
flushes.
In
the case of sequential cache hits, the most commonly occurring operations, the DCU loads or
stores data every cycle.
In
such cases, the DCU does not limit performance.
However, when a
load from a non-cachable storage region is followed by multiple loads from non-
cachable regions, the loads can complete no faster than every four cycles, assuming that the
addresses are accepted during the same cycle
in
which it is requested, and that the data is returned
during the
cycle after the load is accepted.
Similarly, when a store to a non-cachable storage region is followed by multiple stores to non-
cachable regions the fastest that the stores can complete is every other cycle. The DCU can have
accepted up to three stores before
additional DCU commands will stall waiting for the prior stores to
complete.
Sequential line
fills can limit DCU performance. Line fills occur when a load/store
or
debt instruction
misses in the cache, and can be
pipelined on the PLB interface such that up to two requests can be
accepted before
stalling subsequent requests. The subsequent operations will wait
in
the DCU until
the first line fill completes. The line fills must complete
in
the order that they are accepted.
Sequential line flushes from the DCU to main memory also limit DCU performance. Flushes occur
when a
line fill replaces a valid line that is marked dirty (modified), or when a debf instruction flushes
a specific line. If two flushes are pending, the DCU stalls any new data cache operations until the first
flush finishes and the second flush begins.
