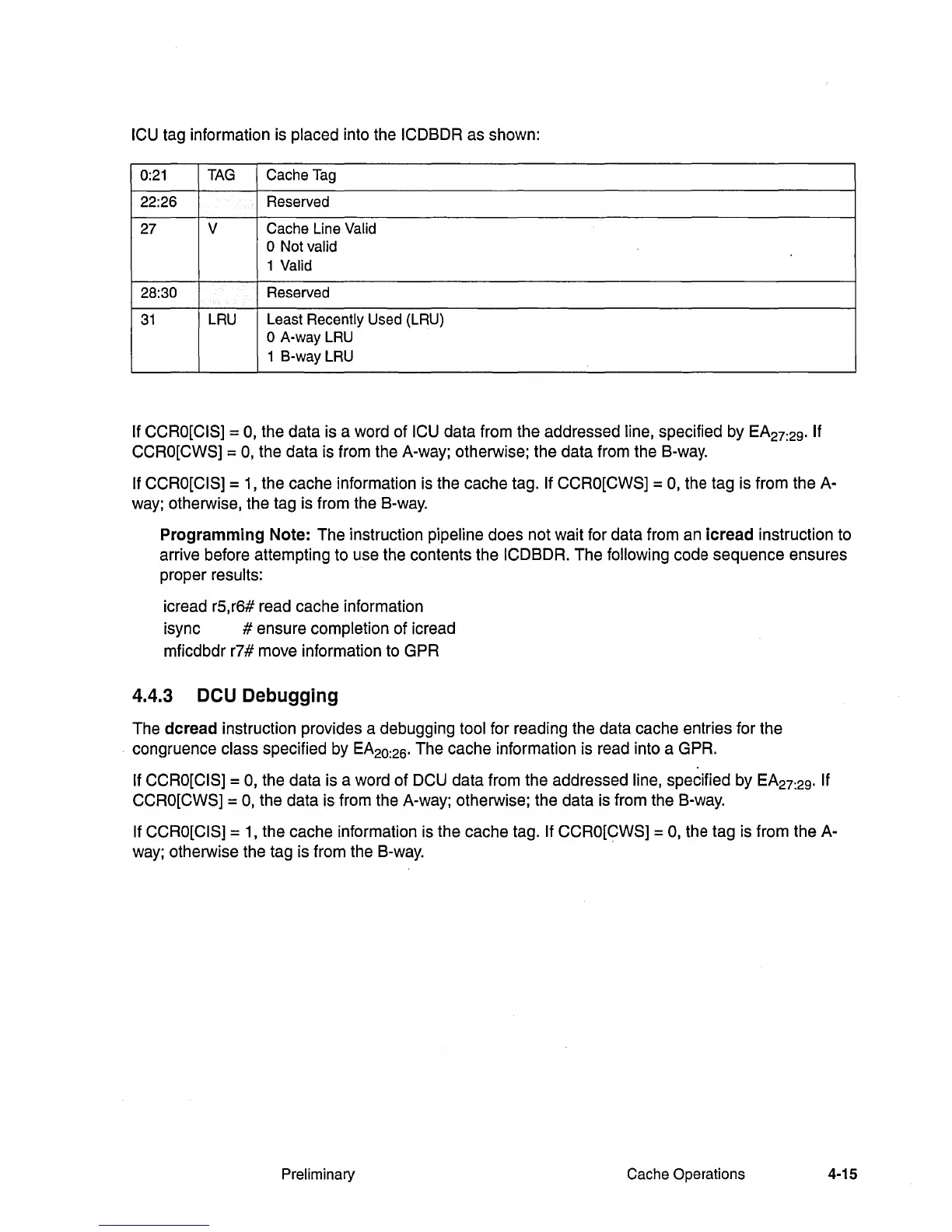

ICU tag information is placed into the ICDBDR as shown:
0:21 TAG
Cache Tag
22:26
Reserved
27 V Cache Line
Valid
o Not valid
1 Valid
28:30 Reserved
31 LRU
Least Recently Used (LRU)
o A-way LRU
1 B-way LRU
If CCRO[CIS] = 0, the data is a word of ICU data from the addressed line, specified by EA
27
:
29
.
If
CCRO[CWS]
= 0, the data is from the A-way; otherwise; the data from the B-way.
If CCRO[CIS] = 1, the cache information is the cache tag. If CCRO[CWS] = 0, the tag is from the A-
way; otherwise, the tag is from the B-way.
Programming Note: The instruction pipeline does not wait for data from an icread instruction to
arrive before attempting to use the contents the
ICDBDR. The following code sequence ensures
proper
results:
icread r5,r6# read cache information
isync # ensure
completion of icread
mficdbdr r7# move information to GPR
4.4.3 DCU Debugging
The dcread instruction provides a debugging tool for reading the data cache entries for the
congruence
class specified by EA
20
:
26
.
The cache information is read into a GPR.
If CCRO[CIS] = 0, the data is a word of DCU data from the addressed line, specified by EA
27
:
29
.
If
CCRO[CWS]
= 0, the data is from the A-way; otherwise; the data is from the B-way.
If CCRO[CIS] = 1, the cache information is the cache tag. If CCRO[CWS] = 0, the tag is from the A-
way; otherwise the tag is from the B-way.
Preliminary
Cache Operations 4-15
