the EBM only requires the address of the first burst element. Following each ExtAck the EBM uses

the size of the master

EBCO_CFG[EMS] to increment its internal address counter as appropriate.

Cycle

PerClk

HoldPri

HoldReq

!-lJ

HoldAck

PerAddrO:31

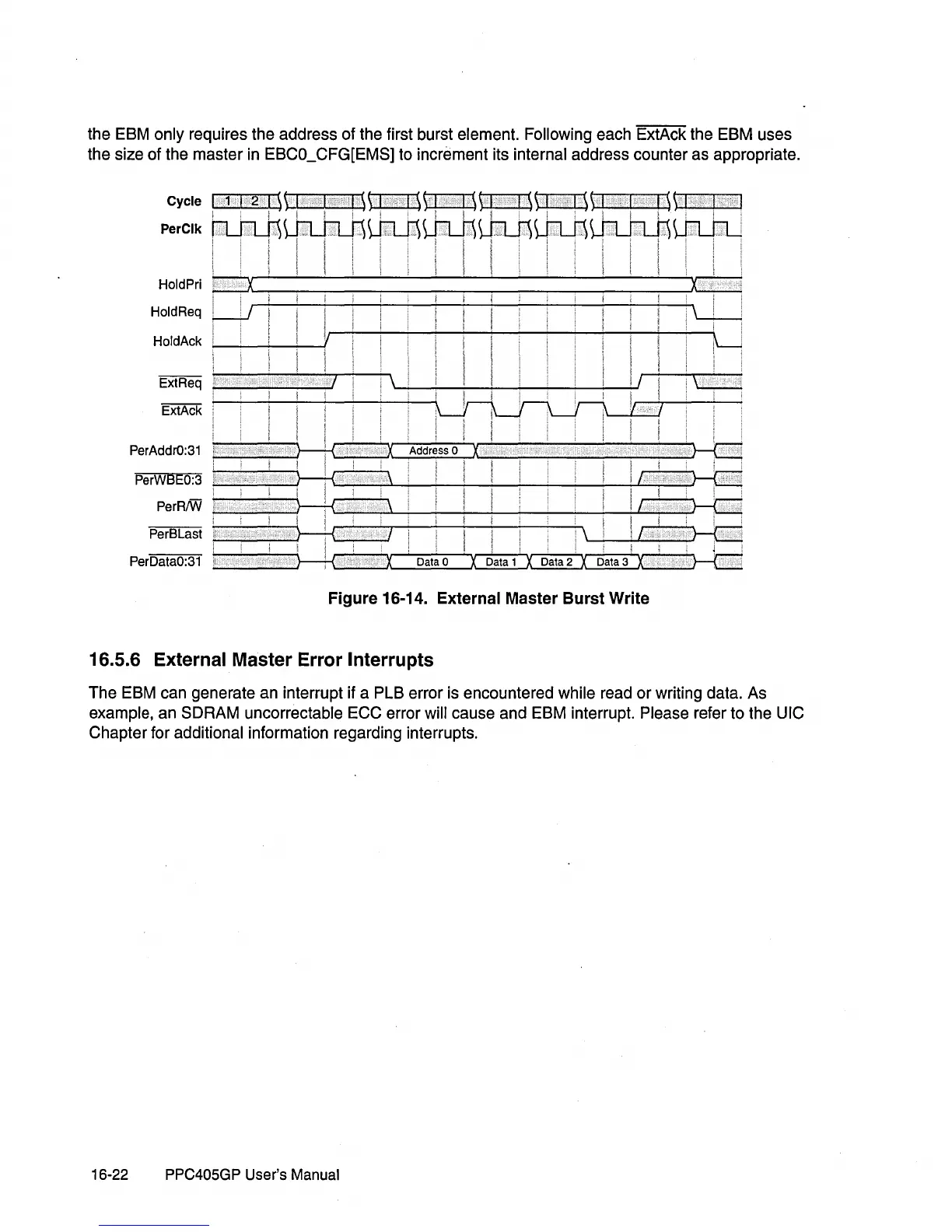

Figure 16-14. External Master Burst Write

16.5.6 External Master Error Interrupts

The EBM can generate an interrupt if a PLB error is encountered while read

writing data. As

example, an SDRAM uncorrectable ECC error will cause and EBM interrupt. Please refer to the UIC

Chapter for additional information regarding interrupts.

16-22 PPC405GP User's Manual
