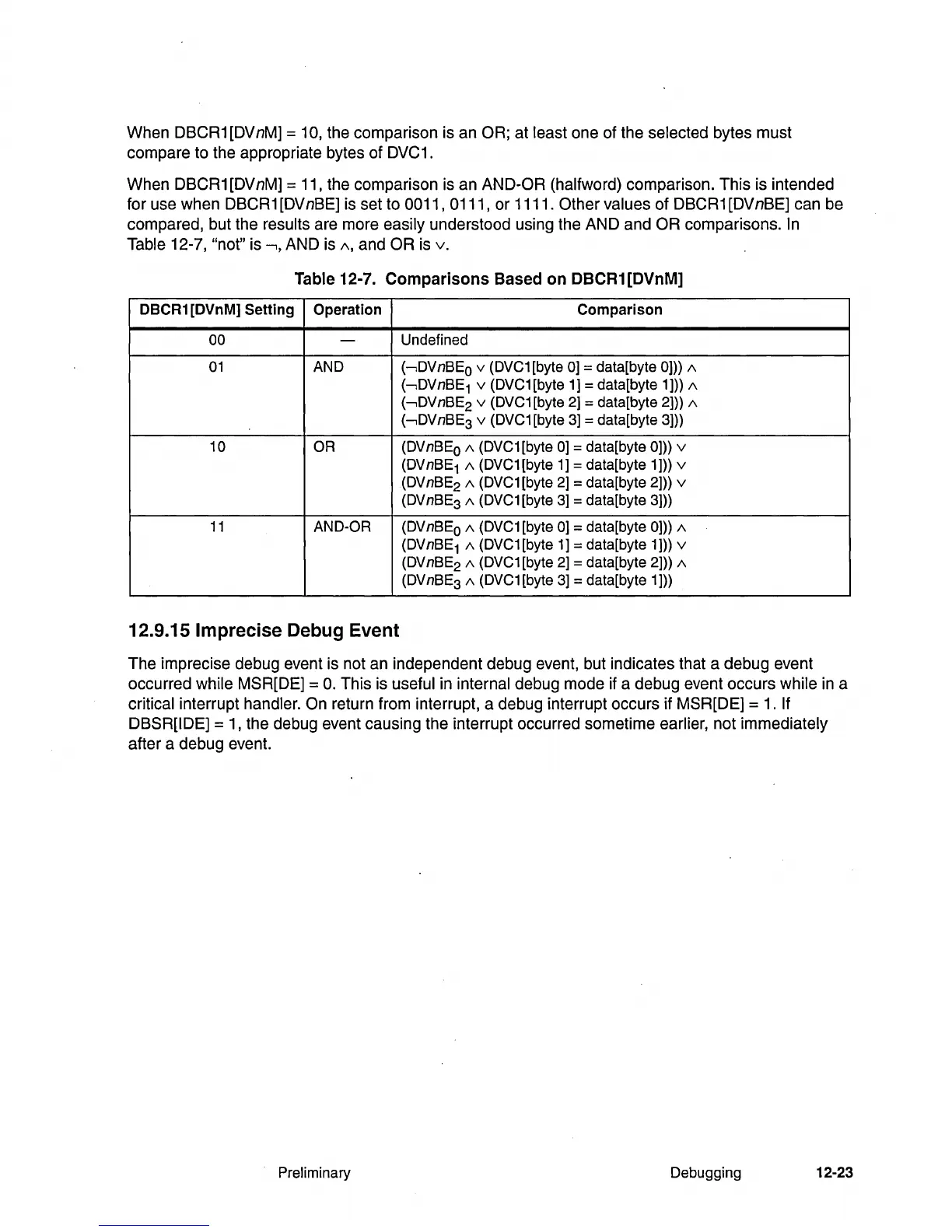

IBM PowerPC 405GP - Table 12-7. Comparisons Based on Dbcr1[Dvnm]

When DBCR1 [DV nM] = 10, the comparison is an OR; at least one of the selected bytes must
compare to the appropriate bytes of DVC1.
When DBCR1 [DV nM]
= 11, the comparison is an AND-OR (halfword) comparison. This is intended
for use when DBCR1 [DVnBE] is set to
0011,0111, or 1111. Other values of DBCR1 [DVnBE] can be
compared, but the results are more easily understood using the AND and
OR comparisons. In
Table 12-7, "not" is -', AND is 1\, and OR is v.
Table 12-7. Comparisons Based on DBCR1[DVnM]
DBCR1 [DVnM] Setting Operation Comparison
00
-
Undefined
01 AND (-,DVnBEo v (DVC1[byte 0] = data[byte 0])) 1\
(-DVnBE1 v (DVC1[byte 1] = data[byte 1])) 1\
(-,DV nBE
2
v (DVC1 [byte 2] = data[byte 2])} 1\
(-,DVnBE
3
v (DVC1[byte 3] = data[byte 3]))
10
OR (DVnBEo 1\ (DVC1[byte 0] = data[byte 0])) v
(DV nBE
1
1\ (DVC1 [byte 1] = data[byte 1])) v
(DV nBE
2
1\ (DVC1 [byte 2] = data[byte 2])) v
(DV nBE3 1\ (DVC1 [byte 3] = data[byte 3]))
11 AND-OR
(DV nBEo 1\ (DVC1 [byte 0] = data[byte 0])) 1\
(DV nBE
1
1\ (DVC1 [byte 1] = data[byte 1])) v
(DV
nBE
2
1\ (DVC1 [byte 2] = data[byte 2])) 1\
(DV nBE3 1\ (DVC1 [byte 3] = data[byte 1]))
12.9.15 Imprecise Debug Event
The imprecise debug event is not an independent debug event, but indicates that a debug event
occurred while MSR[DE] = O. This is useful in internal debug mode if a debug event occurs while in a
critical interrupt handler.
On return from interrupt, a debug interrupt occurs if MSR[DE] = 1. If
DBSR[IDE] = 1, the debug event causing the interrupt occurred sometime earlier, not immediately
after a debug event.
