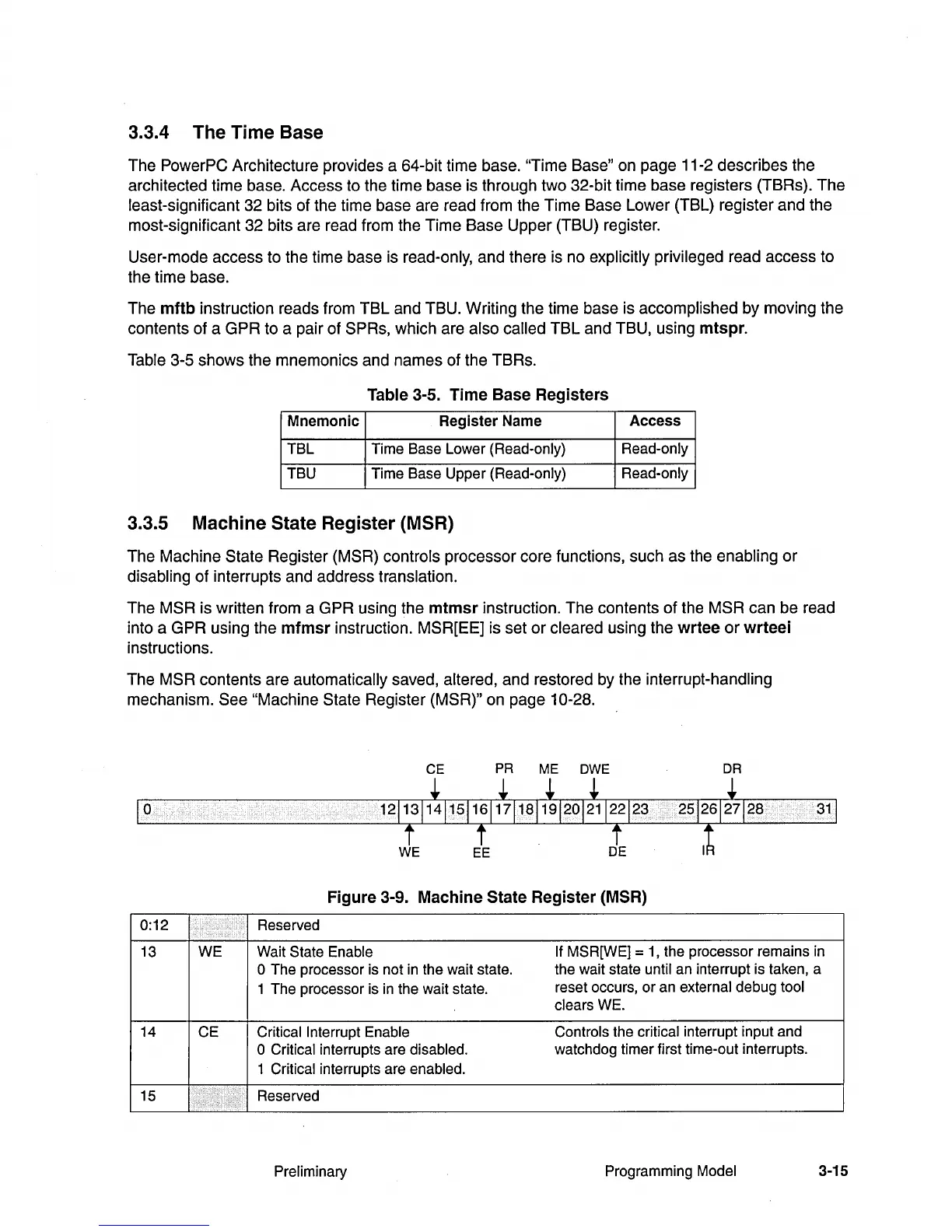

3.3.4 The Time Base
The PowerPC Architecture provides a 64-bit time base. "Time Base" on page 11-2 describes the
architected time base. Access to the time base is through two 32-bit time base registers (TBRs).
The
least-significant 32 bits of the time base are read from the Time Base Lower (TBL) register and the
most-significant 32 bits are read from the Time Base
Upper
(TBU) register.
User-mode access to the time base is read-only, and there is no explicitly privileged read access to
the time base.
The
mftb
instruction reads from
TBL
and TBU. Writing the time base is accomplished
by
moving the
contents of a
GPR
to a pair of SPRs, which are also called
TBL
and TBU, using
mtspr.
Table 3-5 shows the mnemonics and names of the TBRs.
Table 3-5.
Time
Base
Registers
Mnemonic
Register Name Access
TBL
Time
Base
Lower (Read-only) Read-only
TBU
Time Base Upper (Read-only)
Read-only
3.3.5 Machine State Register (MSR)
The Machine State Register (MSR) controls processor core functions, such as the enabling
or
disabling of interrupts and address translation.
The MSR is written from a
GPR using the
mtmsr
instruction. The contents
of
the MSR can be read
into a
GPR using the
mfmsr
instruction. MSR[EE] is set
or
cleared using the
wrtee
or
wrteei
instructions.
The MSR contents are
automatically saved, altered, and restored by the interrupt-handling
mechanism. See "Machine State Register (MSR)" on page 1 0-28.
CE
PR
ME
DWE
DR
o
Figure
3-9.
Machine
State
Register
(MSR)
0:12 Reserved
13
WE
Wait
State Enable
If
MSR[WE] =
1,
the
processor remains
in
o The processor
is
not
in
the
wait state.
the wait state until
an
interrupt
is
taken, a
1 The processor
is
in
the
wait
state.
reset occurs, or
an
external debug tool
clears
WE.
14
CE
Critical Interrupt Enable
Controls the critical interrupt input
and
o Critical interrupts
are
disabled.
watchdog timer first time-out interrupts.
1 Critical interrupts
are
enabled .
15
...
Reserved
..
Preliminary
Programming
Model
3-15
