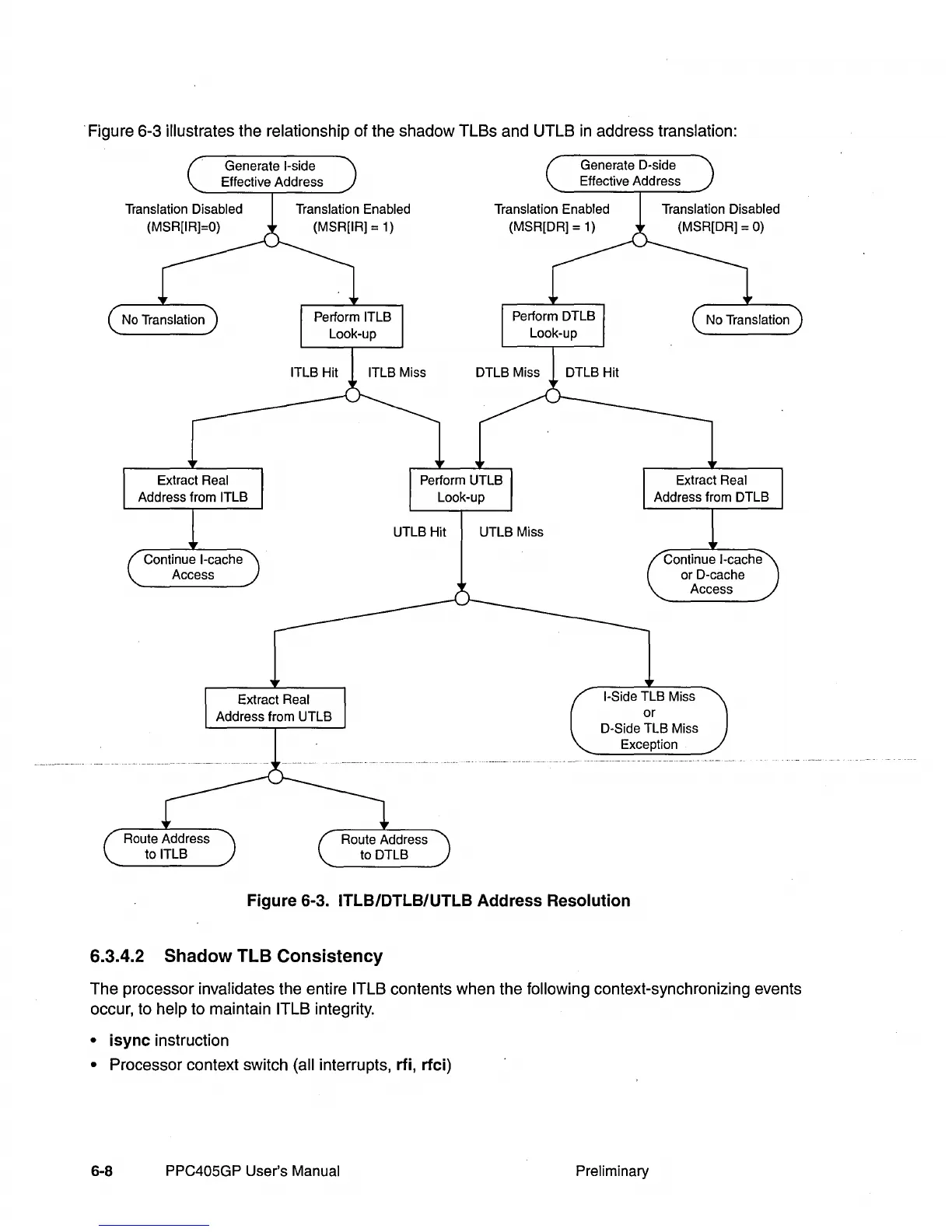

· Figure 6-3 illustrates the relationship of the shadow TLBs and UTLB

address translation:

Generate

I-side

Effective

Address

Translation Disabled

(MSR[IR]=O)

Translation Enabled

(MSR[IR]

= 1)

Route Address

DTLB

Generate D-side

Effective Address

Translation Enabled

(MSR[DR] = 1)

Translation Disabled

(MSR[DR] = 0)

I-Side

TLB

Miss

D-Side

TLB

Miss

Exception

Figure

6-3. ITLB/DTLB/UTLB

Address

Resolution

6.3.4.2 Shadow TLB Consistency

The processor invalidates the entire ITLB contents when the following context-synchronizing events

occur, to

help to maintain ITLB integrity.

•

isync

instruction

• Processor context switch (all interrupts, rfi, rfci)

6-8 PPC405GP User's Manual Preliminary
