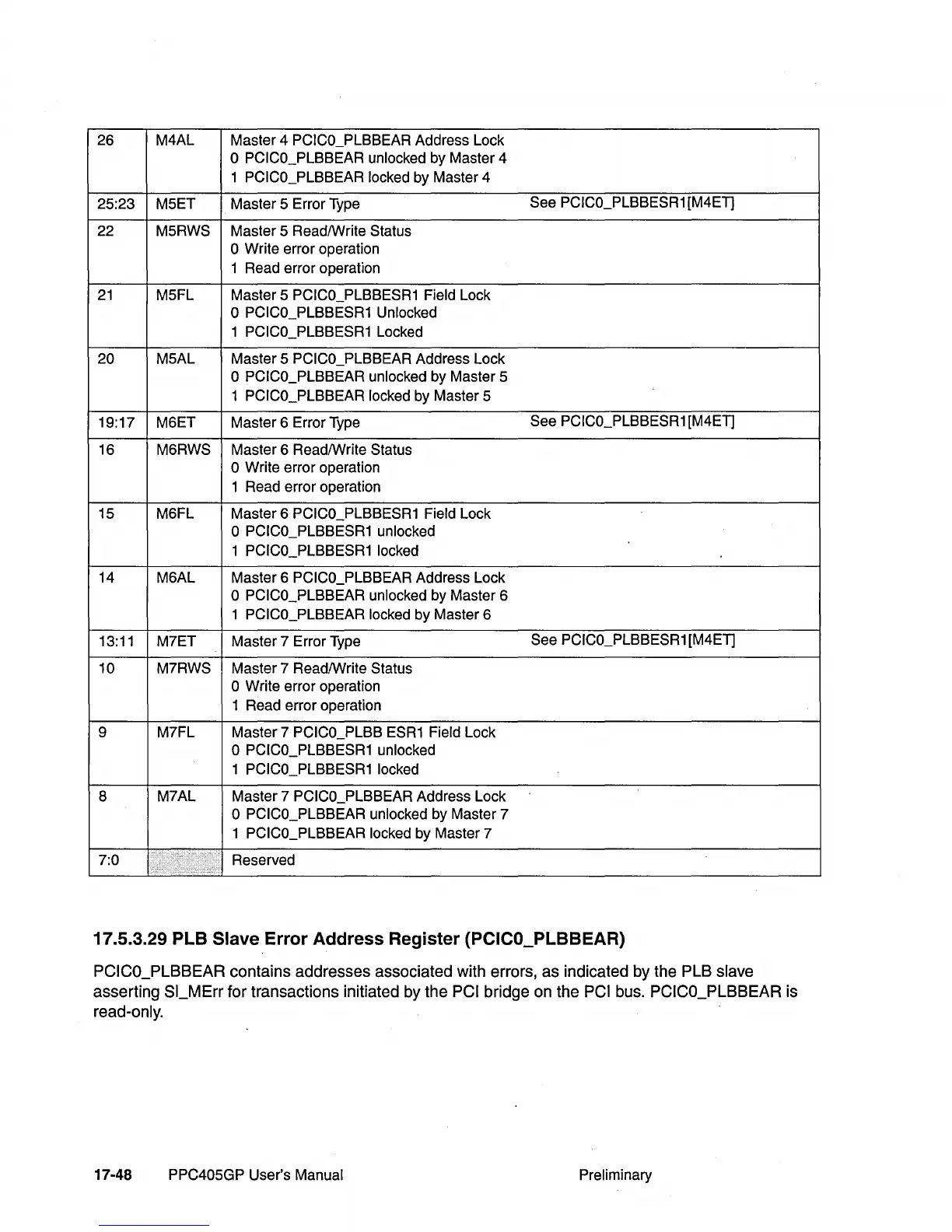

IBM PowerPC 405GP User Manual

26 M4AL Master 4 PCICO_PLBBEAR Address Lock
° PCICO_PLBBEAR unlocked by Master 4
1
PCICO_PLBBEAR locked by Master 4
25:23 M5ET Master 5 Error Type
See PCICO_PLBBESR1 [M4ET]
22
M5RWS Master 5 ReadlWrite Status
° Write error operation
1 Read error operation
21 M5FL Master 5 PCICO_PLBBESR1 Field Lock
° PCICO_PLBBESR1 Unlocked
1
PCICO_PLBBESR1 Locked
20 M5AL Master 5 PCICO_PLBBEAR Address Lock
° PCICO_PLBBEAR unlocked by Master 5
1
PCICO_PLBBEAR locked by Master 5
19:17 M6ET Master 6 Error Type
See PCICO_PLBBESR1 [M4ET]
16
M6RWS Master 6 ReadlWrite Status
° Write error operation
1 Read error operation
15 M6FL Master 6
PCICO_PLBBESR1 Field Lock
° PCICO_PLBBESR1 unlocked
1
PCICO_PLBBESR1 locked
14 M6AL Master 6
PCICO_PLBBEAR Address Lock
° PCICO_PLBBEAR unlocked by Master 6
1
PCICO_PLBBEAR locked by Master 6
13:11 M7ET Master 7 Error Type
See PCICO_PLBBESR1 [M4ET]
10 M7RWS
Master 7 ReadlWrite Status
° Write error operation
1 Read error operation
9 M7FL Master 7
PCICO_PLBB ESR1 Field Lock
° PCICO_PLBBESR1 unlocked
1
PCICO_PLBBESR1 locked
8
M7AL
Master 7 PCICO_PLBBEAR Address Lock
° PCICO_PLBBEAR unlocked by Master 7
1
PCICO_PLBBEAR locked by Master 7
7:0
: ....
....
Reserved
. .....•..
17.5.3.29 PLB Slave Error Address Register (PCICO_PLBBEAR)
PCICO_PLBBEAR contains addresses associated with errors, as indicated by the PLB slave
asserting SLMErr for transactions initiated by the PCI bridge on the PCI bus. PCICO_PLBBEAR is
read-only.
17-48
PPC405GP User's Manual
Preliminary
