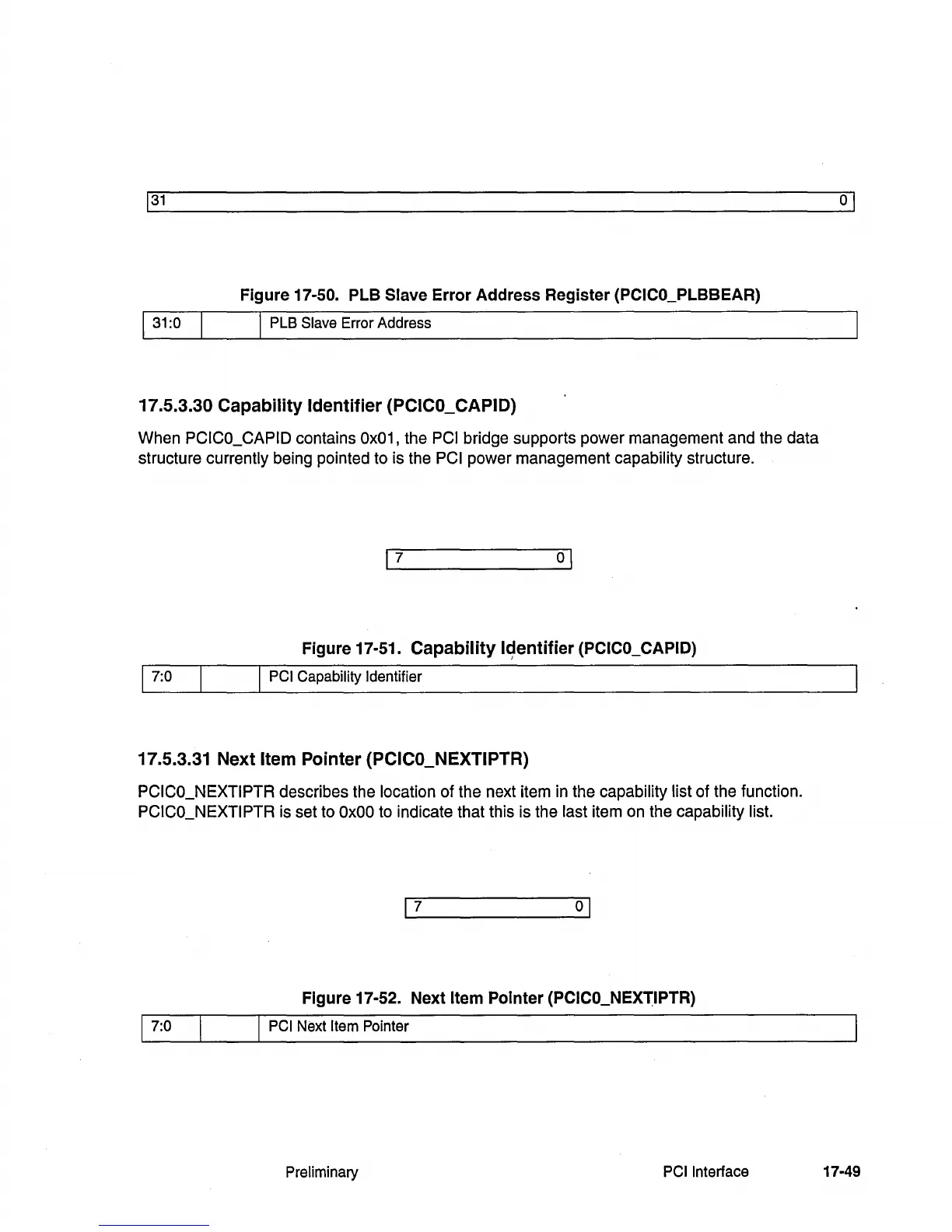

Figure 17-50. PLB Slave Error Address Register (PCICO_PLBBEAR)

31:0

PLB

Slave

Error Address

17.5.3.30 Capability Identifier (PCICO_CAPID)

When PCICO_CAPID contains

Ox01

, the PCI bridge supports power management and the data

structure currently being pointed to is the

PCI power management capability structure.

Figure 17-51. Capability

I~entifier

(PCICO_CAPID)

PCI

Capability Identifier

17.5.3.31 Next Item Pointer (PCICO_NEXTIPTR)

PCICO_NEXTIPTR describes the location of the next item in the capability list of the function.

PCICO_NEXTIPTR is set to

OxOO

to indicate that this is the last item on the capability list.

Figure 17-52. Next Item Pointer (PCICO_NEXTIPTR)

PCI

Item

Pointer

Preliminary

PCI

Interface

17-49
