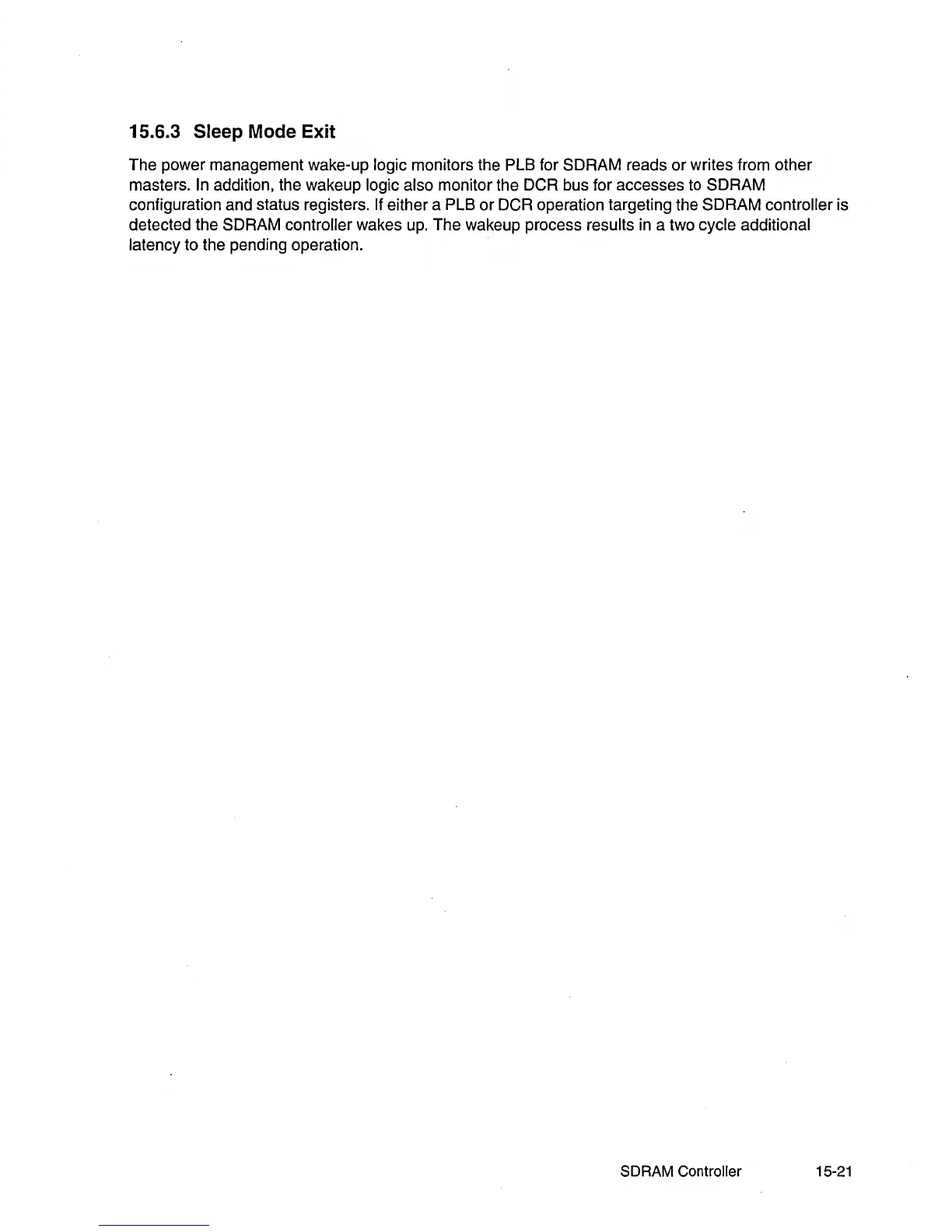

15.6.3 Sleep Mode Exit

The power management wake-up logic monitors the PLB for SDRAM reads or writes from other

masters.

addition, the wakeup logic also monitor the DCR bus for accesses

SDRAM

configuration and status registers. If either a PLB or DCR operation targeting the SDRAM controller is

detected the

SDRAM controller wakes

up.

The wakeup process results

a two cycle additional

latency

to the pending operation.

SDRAM

Controller

15-21
