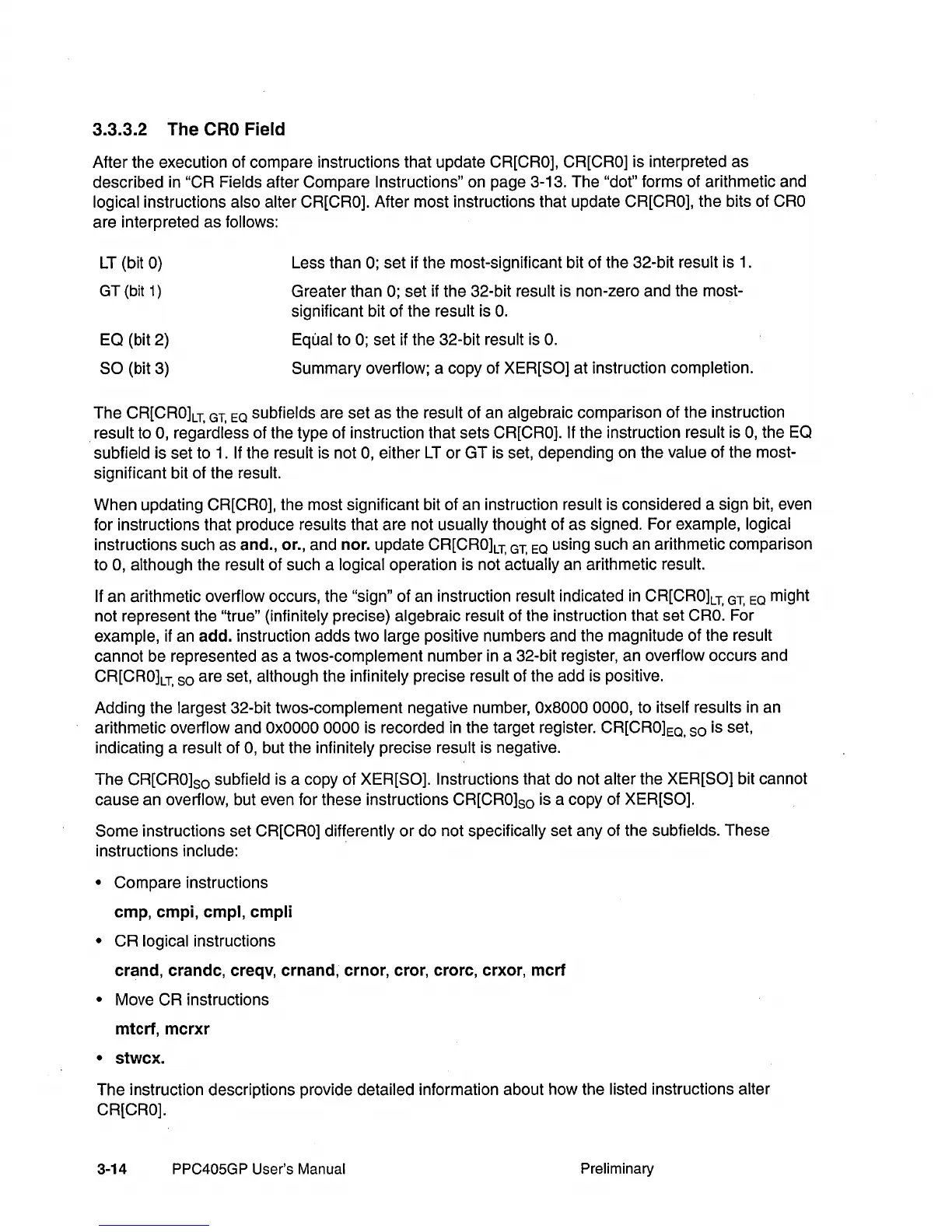

3.3.3.2 The
CRO
Field
After the execution of compare instructions that update CR[CRO], CR[CRO] is interpreted as
described
in
"CR Fields after Compare Instructions" on page 3-13. The "dot" forms of arithmetic and
logical instructions also alter CR[CRO]. After most instructions that update CR[CRO], the bits of
CRO
are interpreted as follows:
LT
(bit 0)
GT
(bit
1)
EO (bit 2)
SO (bit 3)
Less than
0; set if the most-significant bit of the 32-bit result is
1.
Greater than 0; set if the 32-bit result is non-zero and the most-
significant bit of the result is
O.
Equal to
0;
set if the 32-bit result is
O.
Summary overflow; a copy of XER[SO] at instruction completion.
The CR[CROkT,
GT,
EO
subfields are set as the result of an algebraic comparison of the instruction
. result to
0,
regardless of the type of instruction that sets CR[CRO].
If
the instruction result is
0,
the EO
subfield is set to
1.
If
the result is not
0,
either
LT
or
GT
is set, depending on the value of the most-
significant bit of the result.
When updating CR[CRO], the most significant bit of an instruction result is considered a sign bit, even
for instructions that produce
results that are not usually thought of as signed. For example, logical
instructions such as and., or., and nor. update
CR[CROkT,
GT,
EO
using such an arithmetic comparison
to
0, although the result of such a logical operation is not actually an arithmetic result.
If
an arithmetic overflow occurs, the "sign" of an instruction result indicated
in
CR[CRO]LT,
GT,
EO
might
not represent the
"true" (infinitely precise) algebraic result of the instruction that set
CRO.
For
example, if an add. instruction adds two large positive numbers and the magnitude of the result
cannot be represented as a twos-complement number
in
a 32-bit register, an overflow occurs and
CR[CROkT, so are set, although the infinitely precise result of the add is positive.
Adding the
largest 32-bit twos-complement negative number, Ox8000 0000, to itself results
in
an
arithmetic
overflow and
OxOOOO
0000 is recorded
in
the target register.
CR[CRO]EO,
so is set,
indicating a
result of
0,
but the infinitely precise result is negative.
The
CR[CROls
o
subfield is a copy of XER[SO]. Instructions that do not alter the XER[SO] bit cannot
cause an
overflow, but even for these instructions CR[CROls
o
is a copy of XER[SO].
Some instructions set
CR[CRO] differently
or
do not specifically set any of the subfields. These
instructions
include:
•
Compare instructions
cmp,
cmpi,
cmpl,
cmpli
•
CR
logical instructions
crand,
crandc,
creqv,
crnand,
crnor,
cror,
crorc,
crxor,
mcrf
•
Move
CR instructions
mterf,
mcrxr
•
stwcx.
The instruction descriptions provide detailed information about how the listed instructions alter
CR[CRO].
