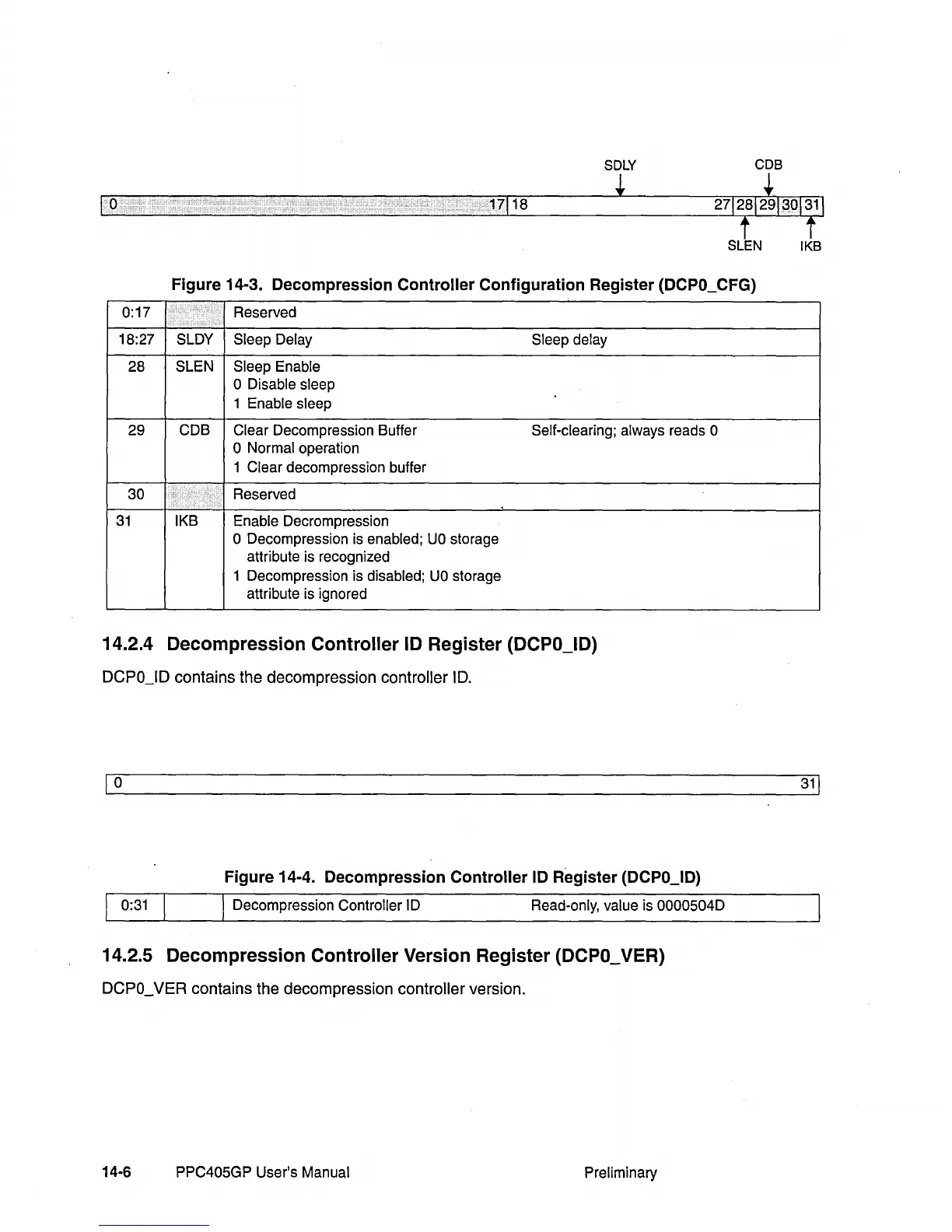

Figure 14-3. Decompression Controller Configuration Register (DCPO_CFG)

0:17 Reserved

18:27

SLDY Sleep Delay

Sleep delay

28 SLEN Sleep Enable

o Disable sleep

1 Enable sleep

CDB

Clear Decompression Buffer Self-clearing; always reads 0

o Normal operation

Clear decompression buffer

30 Reserved

IKB

Enable

Decrompression

o Decompression is enabled;

storage

attribute is recognized

1 Decompression is

disabled;

storage

attribute is ignored

14.2.4 Decompression Controller

DCPO_ID contains the decompression controller

ID.

Figure 14-4. Decompression Controller ID Register (DCPO_ID)

Decompression Controller ID Read-only, value is 0000504D

14.2.5 Decompression Controller Version Register (DC

PO_

VER)

DCPO_ VER contains the decompression controller version.

14-6

PPC405GP User's Manual

Preliminary
