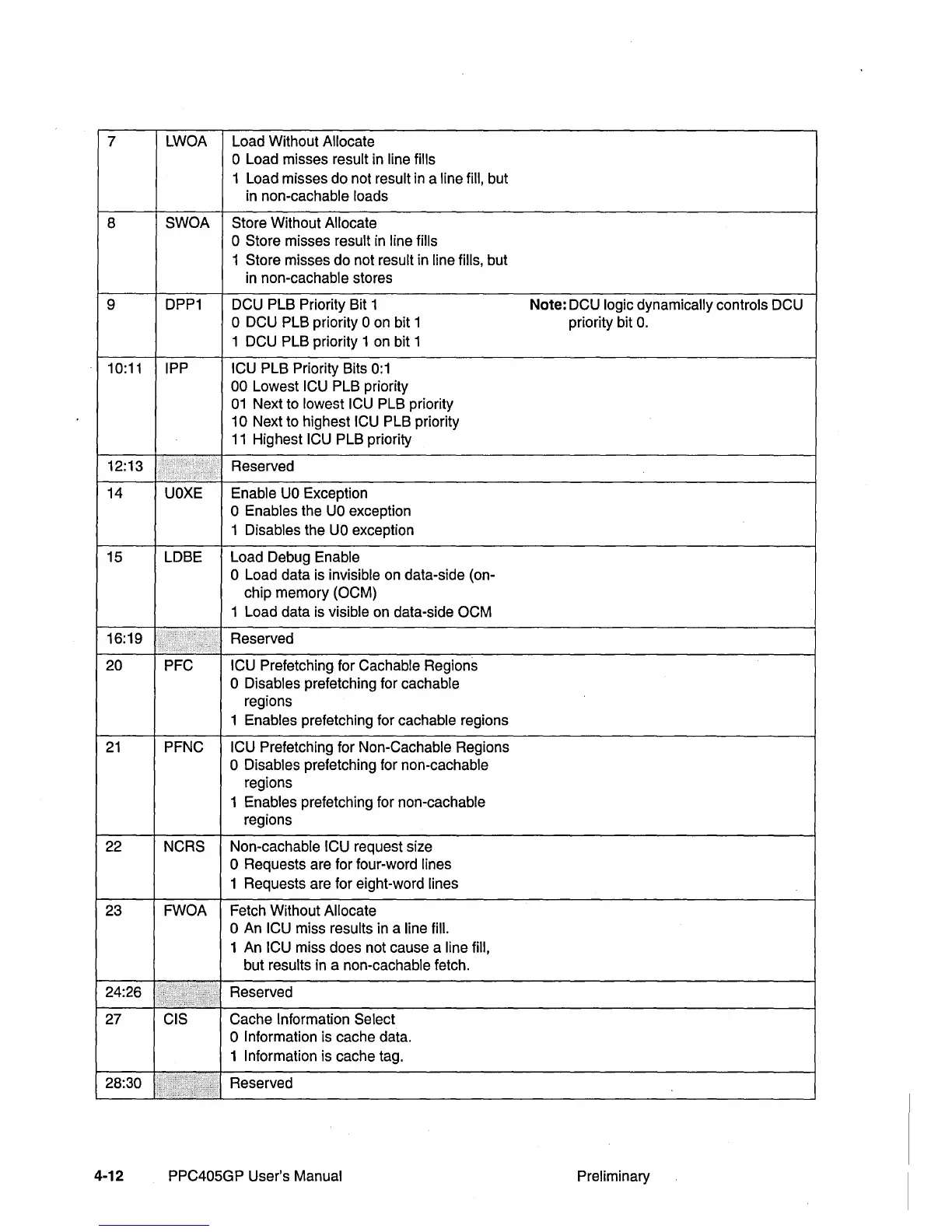

7 LWOA Load Without Allocate
o Load misses result in line fills
1 Load misses do not
result
in
a line fill, but
in
non-cachable loads
8
SWOA Store Without Allocate
o Store misses result
in
line fills
1
Store misses do not result in line fills, but
in
non-cachable stores
9
DPP1
DCU PLB Priority Bit 1
Note: DCU logic dynamically controls DCU
o DCU PLB priority 0 on bit 1 priority bit
o.
1 DCU PLB priority 1 on bit 1
10:11
IPP ICU PLB Priority Bits
0:1
00 Lowest ICU PLB priority
01
Next to lowest ICU PLB priority
10 Next to highest ICU PLB priority
11
Highest ICU PLB priority
12:13
....
Reserved
.........
...
"
..
14
UOXE
Enable
UO
Exception
o Enables the
UO
exception
1
Disables the
UO
exception
15
LOBE Load Debug Enable
o Load data is invisible on data-side (on-
chip memory
(OCM)
1 Load data is visible on data-side OCM
16:19
••••
.....
Reserved
.
....
20
PFC
ICU Prefetching for Cachable Regions
o Disables prefetching for cachable
regions
1
Enables prefetching for cachable regions
21
PFNC ICU Prefetching for Non-Cachable Regions
o Disables prefetching for non-cachable
regions
1
Enables prefetching for non-cachable
regions
22
NCRS Non-cachable ICU request size
o Requests are for four-word lines
1 Requests are for eight-word lines
23 FWOA Fetch Without Allocate
o An ICU miss results in a line fill.
1 An
ICU miss does not cause a line fill,
but results in a non-cachable fetch.
24:26
lli·.·····j··~(~
Reserved
27
CIS Cache Information Select
o Information is cache data.
1
Information is cache tag .
28:30
.........•.....••.•.....•.••.....•.•
:
...•...•.•.
Reserved
4-12
PPC405GP User's Manual Preliminary
