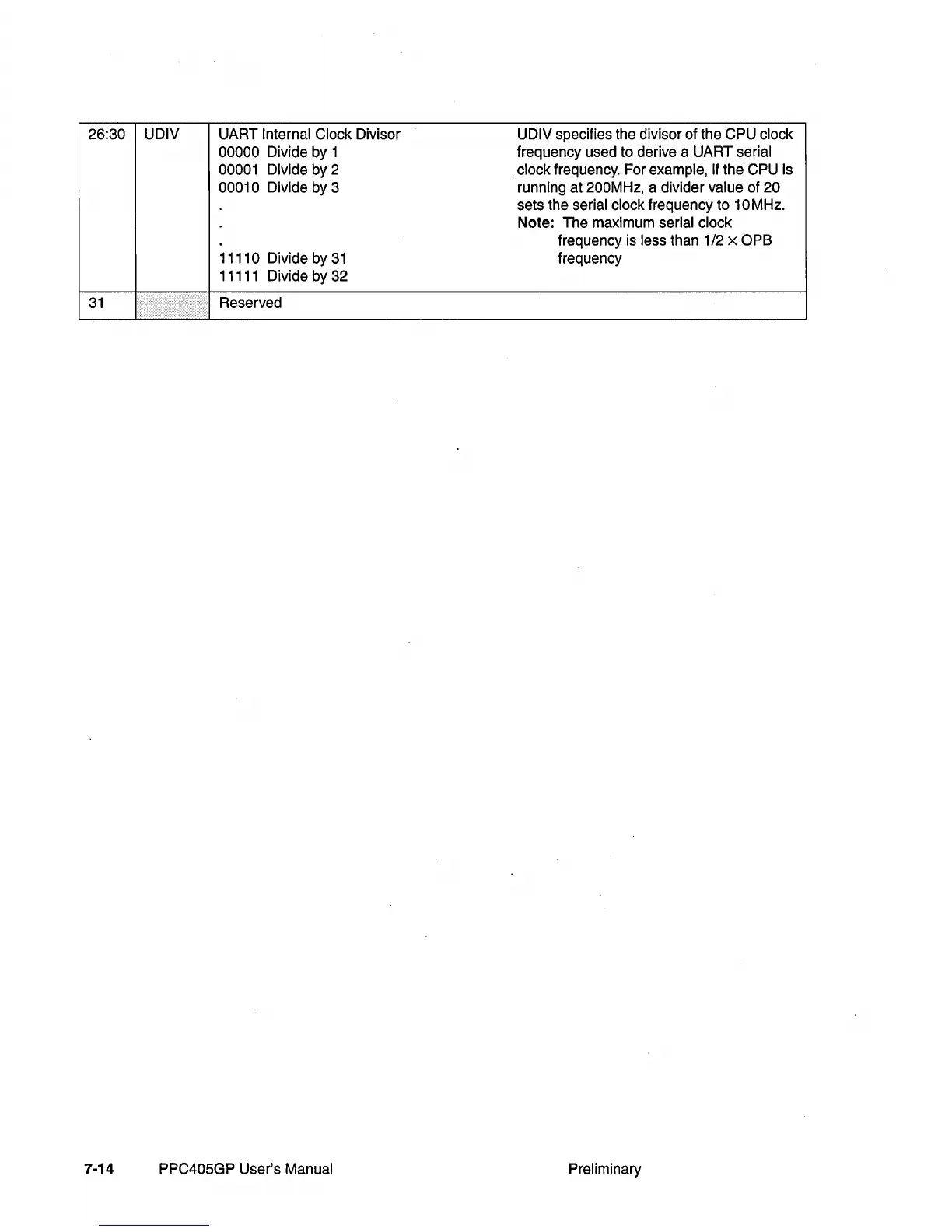

26:30 UDIV

UART Internal Clock Divisor

UDIV specifies the divisor of the CPU clock

00000

Divide by 1

frequency used to derive a UART serial

00001

Divide by 2 clock frequency. For example, if the CPU is

00010 Divide by 3 running at 200M Hz, a divider value of 20

sets the serial clock frequency to 10MHz.

Note:

The maximum serial clock

frequency is

less than 1/2 x OPS

11110 Divide by

frequency

11111 Divide by 32

...

Reserved

....

7-14 PPC405GP User's Manual

Preliminary
