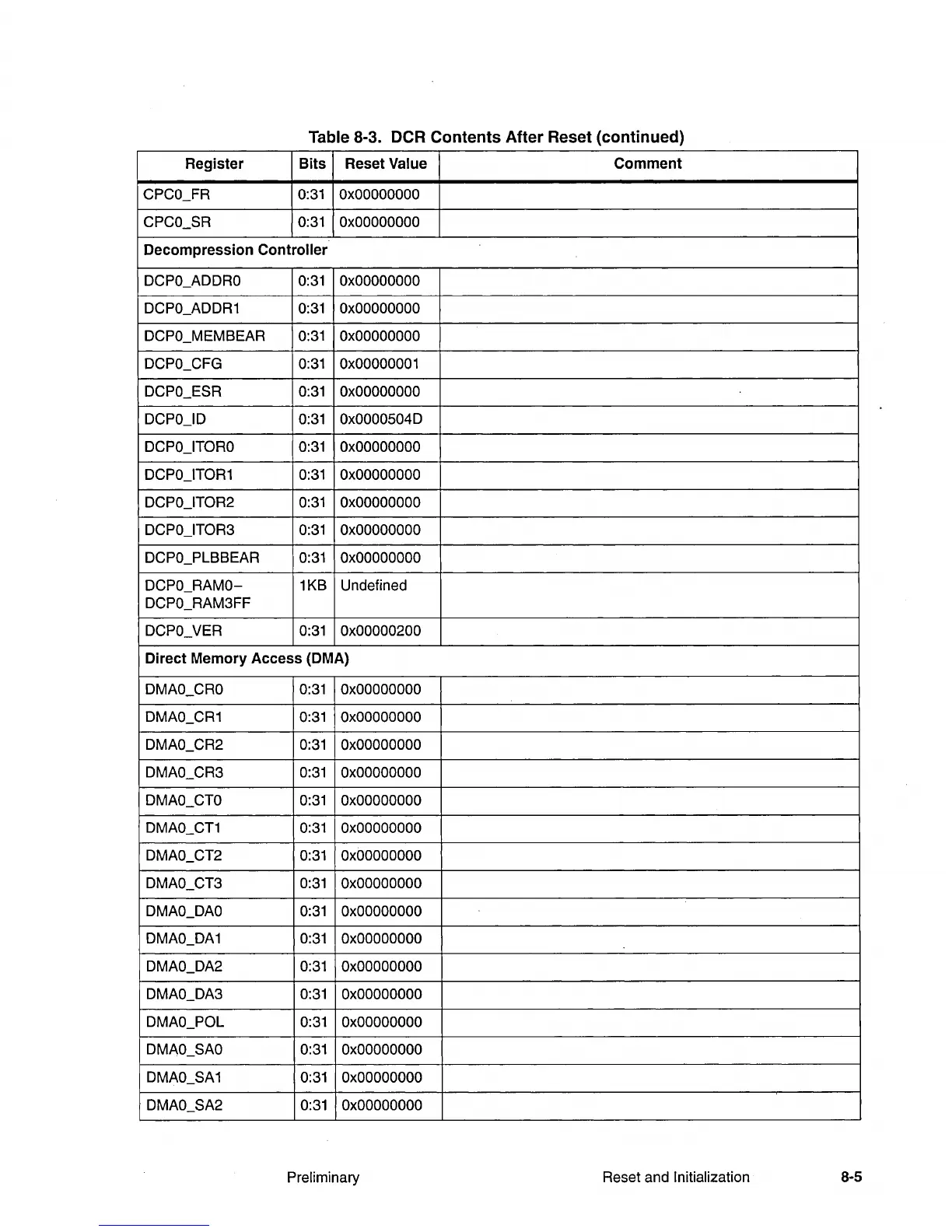

Table 8-3. OCR Contents After Reset (continued)

CPCO_FR

0:31

OxOOOOOOOO

CPCO_SR 0:31

OxOOOOOOOO

Decompression Controller

DCPO_ADDRO

0:31

OxOOOOOOOO

DCPO_ADDR1

0:31

OxOOOOOOOO

DCPO_MEMBEAR 0:31

OxOOOOOOOO

DCPO_CFG

0:31

OxOOOOOO01

DCPO_ESR

0:31

OxOOOOOOOO

DCPO_ID

0:31

OxOOO0504D

DCPO_ITORO

0:31

OxOOOOOOOO

DCPO_ITOR1

0:31

OxOOOOOOOO

DCPO_ITOR2

0:31

OxOOOOOOOO

DCPO_ITOR3

0:31

OxOOOOOOOO

DCPO_PLBBEAR 0:31

OxOOOOOOOO

DCPO_RAMO-

1KB

Undefined

DCPO_RAM3FF

DCPO_VER

0:31

OxOOOO0200

Direct Memory Access (DMA)

DMAO_CRO

0:31

OxOOOOOOOO

DMAO_CR1

0:31

OxOOOOOOOO

DMAO_CR2

0:31

OxOOOOOOOO

DMAO_CR3

0:31

OxOOOOOOOO

DMAO_CTO

0:31

OxOOOOOOOO

DMAO_CT1

0:31

OxOOOOOOOO

DMAO_CT2

0:31

OxOOOOOOOO

DMAO_CT3

0:31

OxOOOOOOOO

DMAO_DAO

0:31

OxOOOOOOOO

DMAO_DA1

0:31

OxOOOOOOOO

DMAO_DA2

0:31

OxOOOOOOOO

DMAO_DA3

0:31

OxOOOOOOOO

DMAO_POL

0:31

OxOOOOOOOO

DMAO_SAO

0:31

OxOOOOOOOO

DMAO_SA1

0:31

OxOOOOOOOO

DMAO_SA2

0:31

OxOOOOOOOO

Preliminary

Reset

and

Initialization

8-5
