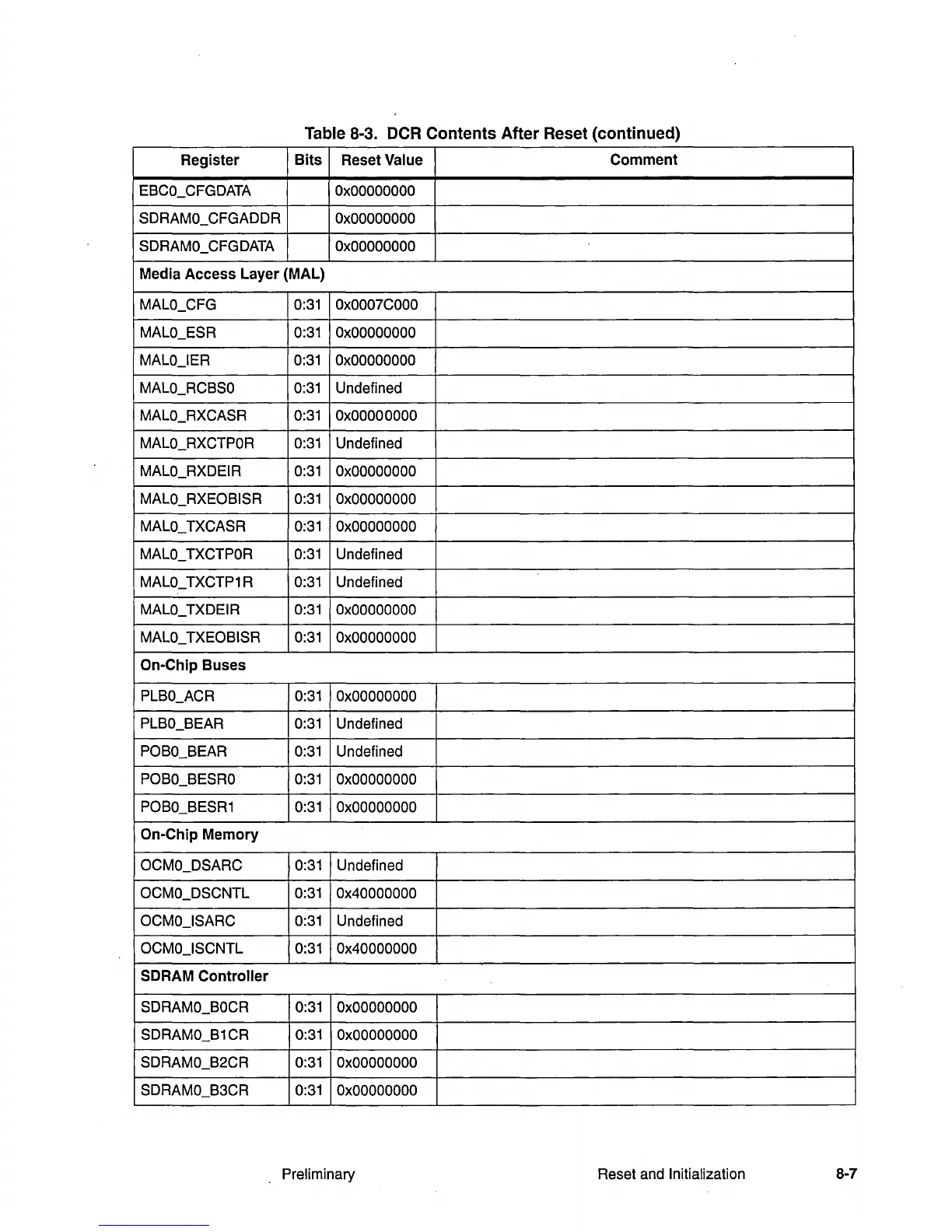

Table 8-3.

OCR

Contents After Reset (continued)

Bits

Reset Value

Comment

EBCO_CFGDATA

OxOOOOOOOO

SDRAMO_CFGADDR

OxOOOOOOOO

SDRAMO_CFGDATA

OxOOOOOOOO

Media Access Layer (MAL)

MALO_CFG

0:31

OxOO07COOO

MALO_ESR

0:31

OxOOOOOOOO

MALO_IER

0:31

OxOOOOOOOO

MALO_RCBSO

0:31

Undefined

MALO_RXCASR

0:31

OxOOOOOOOO

MALO_RXCTPOR

0:31

Undefined

MALO_RXDEIR

0:31

OxOOOOOOOO

MALO_RXEOBISR

0:31

OxOOOOOOOO

MALO_

TXCASR

0:31

OxOOOOOOOO

MALO_

TXCTPOR

0:31

Undefined

MALO_

TXCTP1 R

0:31

Undefined

MALO_

TXDEIR

0:31

OxOOOOOOOO

MALO_

TXEOBISR

0:31

OxOOOOOOOO

On-Chip Buses

PLBO_ACR

0:31

OxOOOOOOOO

PLBO_BEAR

0:31

Undefined

POBO_BEAR

0:31

Undefined

POBO_BESRO

0:31

OxOOOOOOOO

POBO_BESR1

0:31

OxOOOOOOOO

On-Chip Memory

OCMO_DSARC

0:31

Undefined

OCMO_DSCNTL

0:31

Ox40000000

OCMO_ISARC

0:31

Undefined

OCMO_ISCNTL

0:31

Ox40000000

SDRAM Controller

SDRAMO_BOCR

0:31

OxOOOOOOOO

SDRAMO_B1

0:31

OxOOOOOOOO

SDRAMO_B2CR

0:31

OxOOOOOOOO

SDRAMO_B3CR

0:31

OxOOOOOOOO

Preliminary

Reset

and

Initialization

8-7
