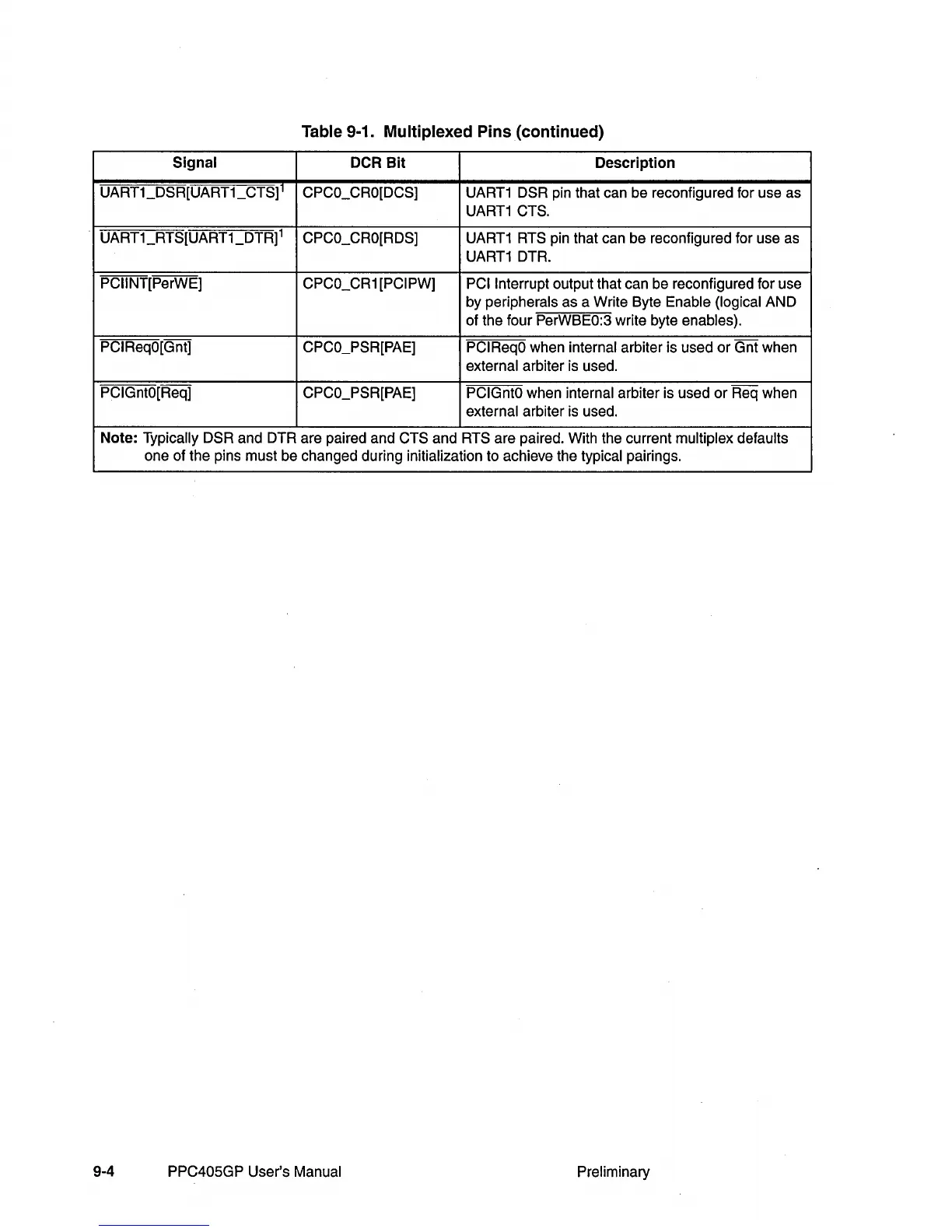

Table 9·1. Multiplexed Pins (continued)

Signal

DCR

Bit

Description

UART1_DSR[UART1_CTS]' CPCO_CRO[DCS]

UART1 DSR pin that can be reconfigured for use as

UART1

CTS.

UART1_RTS[UART1_DTR]1

CPCO_CRO[RDS]

UART1 RTS pin that can be reconfigured for use as

UART1 DTR.

PCIINT[PerWE]

CPCO_CR1 [PCIPW] PCI Interrupt

output that can be reconfigured for use

by peripherals as a Write Byte

Enable (logical AND

of the four PerWBEO:3 write byte enables).

PCIReqO[Gnt] CPCO_PSR[PAE]

PCIReqO

when internal arbiter is used

Gnt when

external arbiter is used.

PCIGntO[Req] CPCO_PSR[PAE]

PCIGntO

when internal arbiter is used

Req when

external arbiter is used.

Note:

Typically DSR and DTR are paired and CTS and RTS are paired. With the current multiplex defaults

one of the pins must be changed during

initialization to achieve the typical pairings.
