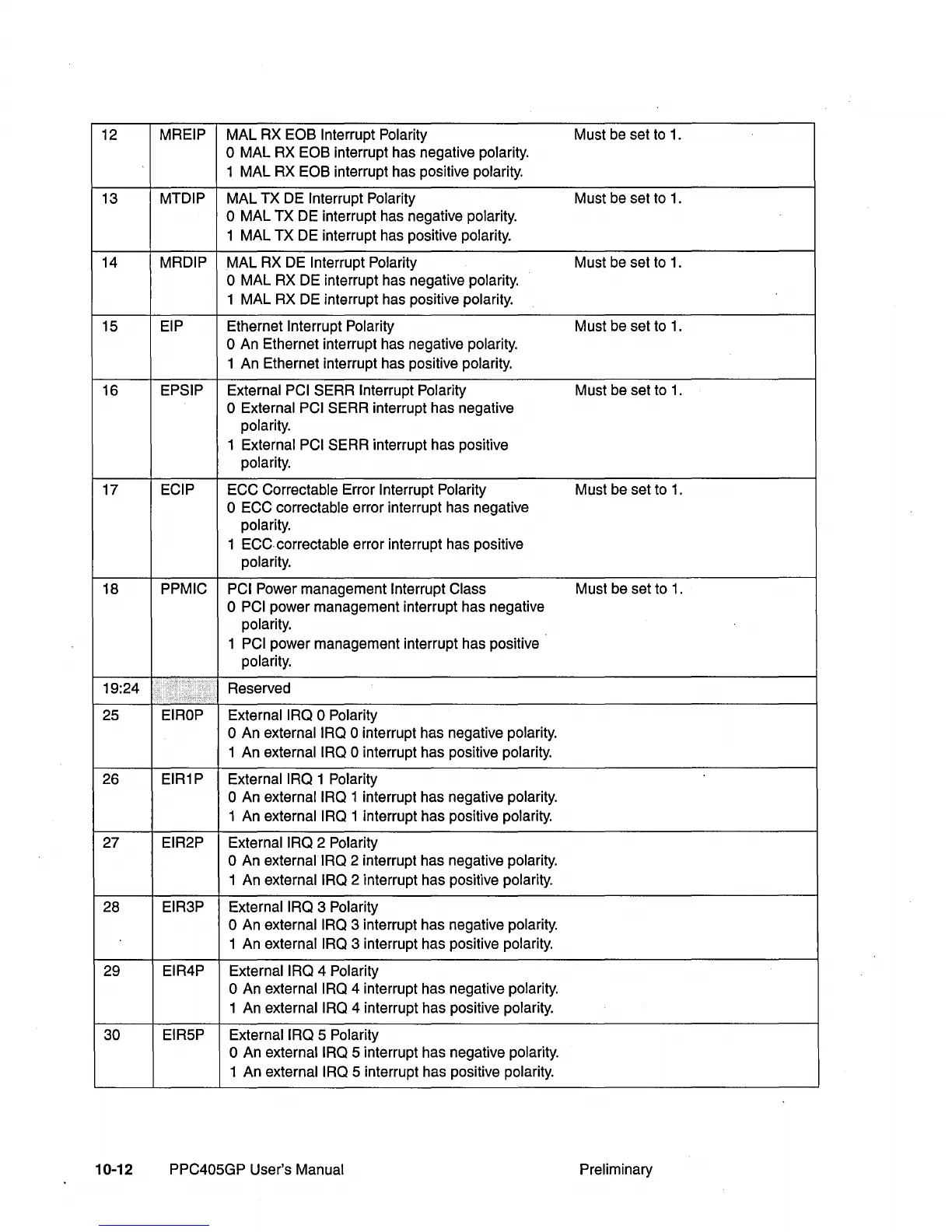

12
MREIP MAL RX EOB Interrupt Polarity Must be set to
1.
o MAL RX EOB interrupt has negative polarity.
1 MAL RX
EOB interrupt has positive polarity.
13
MTDIP MAL TX DE Interrupt Polarity Must be set to
1.
o MAL TX DE interrupt has negative polarity.
1 MAL TX DE interrupt has positive polarity.
14
MRDIP MAL RX DE Interrupt Polarity Must be set to
1.
o MAL RX DE interrupt has negative polarity.
1 MAL RX DE interrupt has positive polarity.
15
EIP Ethernet Interrupt Polarity Must be set to
1.
o An Ethernet interrupt has negative polarity.
1 An Ethernet interrupt has positive polarity.
16
EPSIP External PCI SERR Interrupt Polarity Must be set to
1.
o External PCI SERR interrupt has negative
polarity.
1 External
PCI SERR interrupt has positive
polarity.
17
ECIP
ECC Correctable Error Interrupt Polarity
Must be set to
1.
o ECC correctable error interrupt has negative
polarity.
1
ECC correctable error interrupt has positive
polarity.
18
PPMIC PCI Power management Interrupt Class Must be set to
1.
o PCI power management interrupt has negative
polarity.
1
PCI power management interrupt has positive
polarity .
19:24
..
. "
.>
.........
Reserved
25
EIROP
External IRQ 0 Polarity
o An external IRQ 0 interrupt has negative polarity.
1 An external
IRQ 0 interrupt has positive polarity.
26
EIR1P External IRQ 1 Polarity
o An external IRQ 1 interrupt has negative polarity.
1 An external
IRQ 1 interrupt has positive polarity.
27
EIR2P External IRQ 2 Polarity
o An external IRQ 2 interrupt has negative polarity.
1 An external
IRQ 2 interrupt has positive polarity.
28
EIR3P External IRQ 3 Polarity
o An external IRQ 3 interrupt has negative polarity.
1 An external
IRQ 3 interrupt has positive polarity.
29
EIR4P
External IRQ 4 Polarity
o An external IRQ 4 interrupt has negative polarity.
1 An external
IRQ 4 interrupt has positive polarity.
30
EIR5P External IRQ 5 Polarity
o An external IRQ 5 interrupt has negative polarity.
1 An external
IRQ 5 interrupt has positive polarity.
10-12
PPC405GP User's Manual
Preliminary
