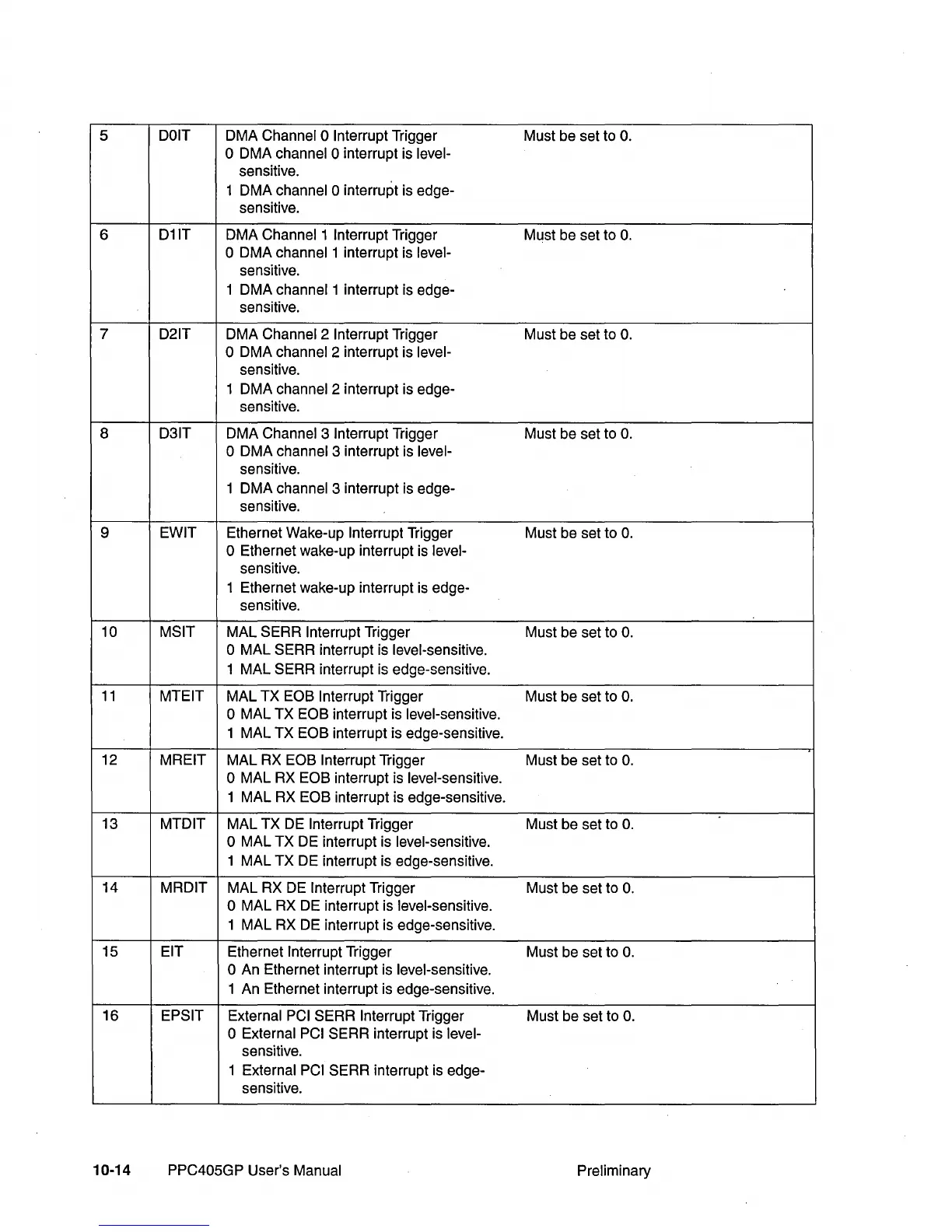

IBM PowerPC 405GP User Manual

5 DOlT DMA Channel 0 Interrupt Trigger
Must be set to
o.
o DMA channel 0 interrupt is level-
sensitive.
1 DMA channel
0 interrupt is edge-
sensitive.
6
D11T
DMA Channel 1 Interrupt Trigger Must be set to o.
o DMA channel 1 interrupt is level-
sensitive.
1 DMA channel 1 interrupt is edge-
sensitive.
7 D21T
DMA Channel 2 Interrupt Trigger Must be set to o.
o DMA channel 2 interrupt is level-
sensitive.
1 DMA channel 2 interrupt is edge-
sensitive.
8
D31T
DMA Channel 3 Interrupt Trigger Must be set to o.
o DMA channel 3 interrupt is level-
sensitive.
1 DMA channel 3 interrupt is edge-
sensitive.
9
EWIT
Ethernet Wake-up Interrupt Trigger Must be set to
o.
o Ethernet wake-up interrupt is level-
sensitive.
1 Ethernet wake-up interrupt is edge-
sensitive.
10 MSIT MAL SERR Interrupt Trigger
Must be set to
o.
o MAL SERR interrupt is level-sensitive.
1 MAL SERR interrupt is edge-sensitive.
11 MTEIT MAL TX EOB Interrupt Trigger
Must be set to
O.
o MAL TX EOB interrupt is level-sensitive.
1 MAL TX
EOB interrupt is edge-sensitive.
12 MREIT
MAL RX
EOB Interrupt Trigger Must be set to o.
o MAL RX EOB interrupt is level-sensitive.
1 MAL RX
EOB interrupt is edge-sensitive.
13 MTDIT MAL TX
DE Interrupt Trigger
Must be set to
o.
o MAL TX DE interrupt is level-sensitive.
1 MAL TX DE interrupt is edge-sensitive.
14 MRDIT
MAL RX
DE Interrupt Trigger Must be set to o.
o MAL RX DE interrupt is level-sensitive.
1 MAL RX DE interrupt is edge-sensitive.
15
EIT
Ethernet Interrupt Trigger
Must be set to
o.
o An Ethernet interrupt is level-sensitive.
1 An Ethernet interrupt is edge-sensitive.
16 EPSIT
External
PCI SERR Interrupt Trigger
Must be set to
o.
o External PCI SERR interrupt is level-
sensitive.
1 External
PCI SERR interrupt is edge-
sensitive.
10-14 PPC405GP User's Manual
Preliminary
