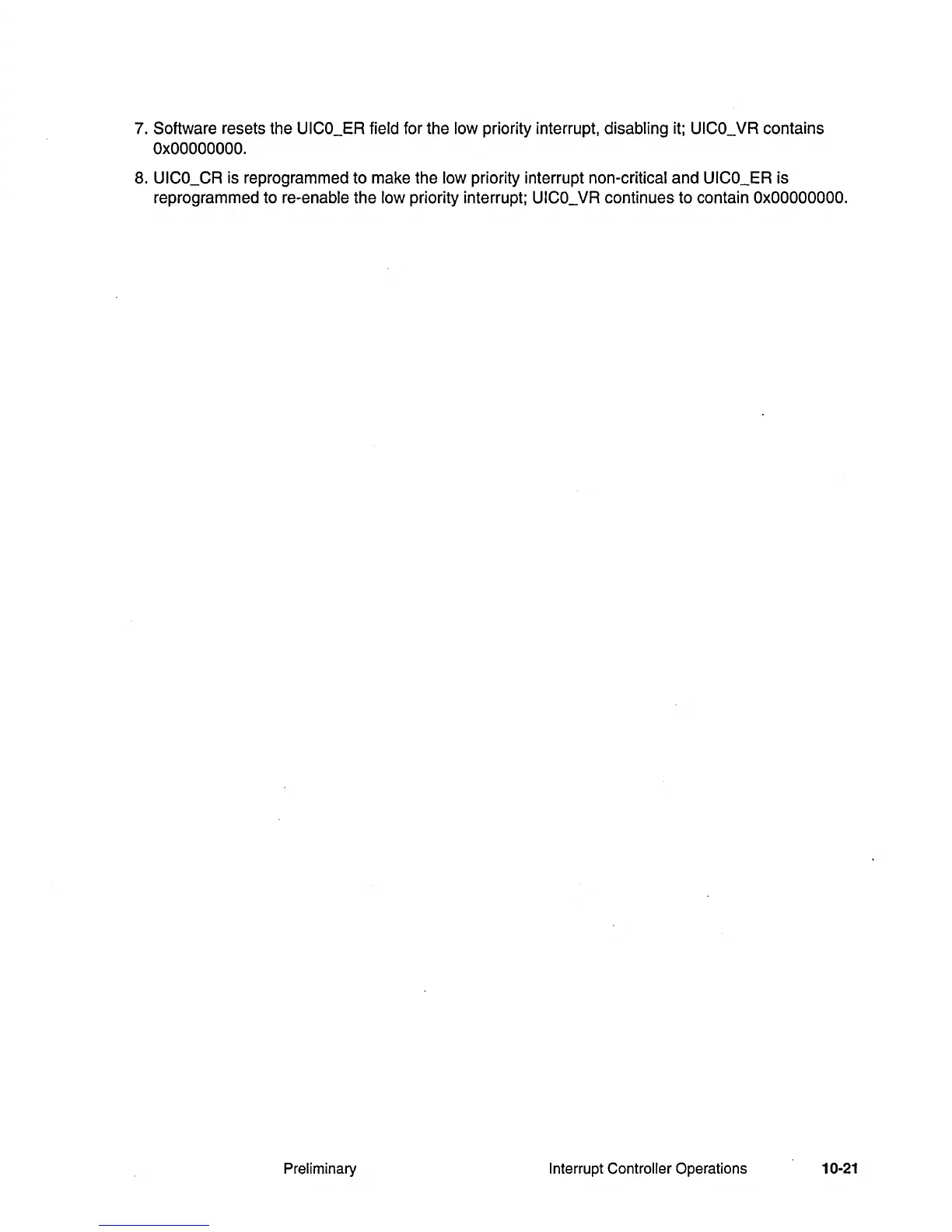

Software resets the

UICO_ER

field for the

low

priority interrupt, disabling

it;

UICO_

contains

OxOOOOOOOO.

UICO_CR

reprogrammed to

make

the

low

priority interrupt non-critical and

UICO_ER

reprogrammed

re-enable the low priority interrupt;

UICO_

continues

contain

OxOOOOOOOO.

Preliminary Interrupt Controller Operations

10-21
