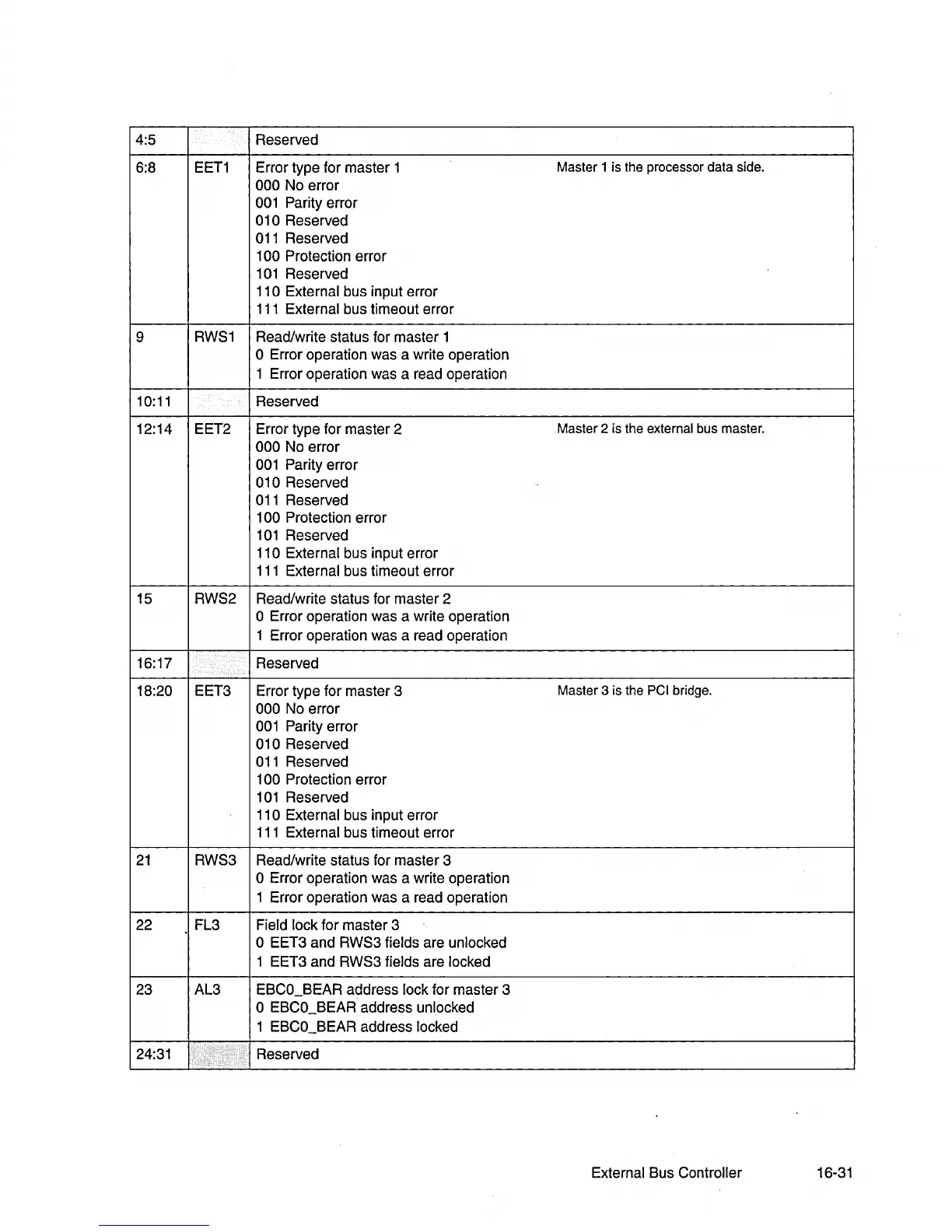

IBM PowerPC 405GP User Manual

4:5
Reserved
6:8
EET1
Error type for master 1
Master 1 is the processor data side.
000 No error
001 Parity error
010 Reserved
011 Reserved
100 Protection error
101 Reserved
110 External bus input error
111 External bus timeout error
9
RWS1 Read/write status for master 1
a Error operation was a write operation
1 Error operation was a read operation
10:11 Reserved
12:14 EET2 Error type for master 2
Master 2 is the external bus master.
000 No error
001 Parity error
010 Reserved
011 Reserved
100 Protection error
101 Reserved
110 External bus input error
111 External bus timeout error
15
RWS2 Read/write status for master 2
a Error operation was a write operation
1 Error operation was a read operation
16:17 Reserved
18:20 EET3 Error type for master 3
Master 3 is the PCI bridge.
000 No error
001 Parity error
010 Reserved
011 Reserved
100 Protection error
101 Reserved
110 External bus input error
111 External bus timeout error
21 RWS3 Read/write status for master 3
a Error operation was a write operation
1 Error operation was a read operation
22 FL3
Field lock for master 3
a EET3 and RWS3 fields are unlocked
1 EET3 and RWS3 fields are locked
23 AL3
EBCO_BEAR address lock for master 3
a EBCO_BEAR address unlocked
1 EBCO_BEAR address locked
24:31 Reserved
External Bus Controller 16-31
