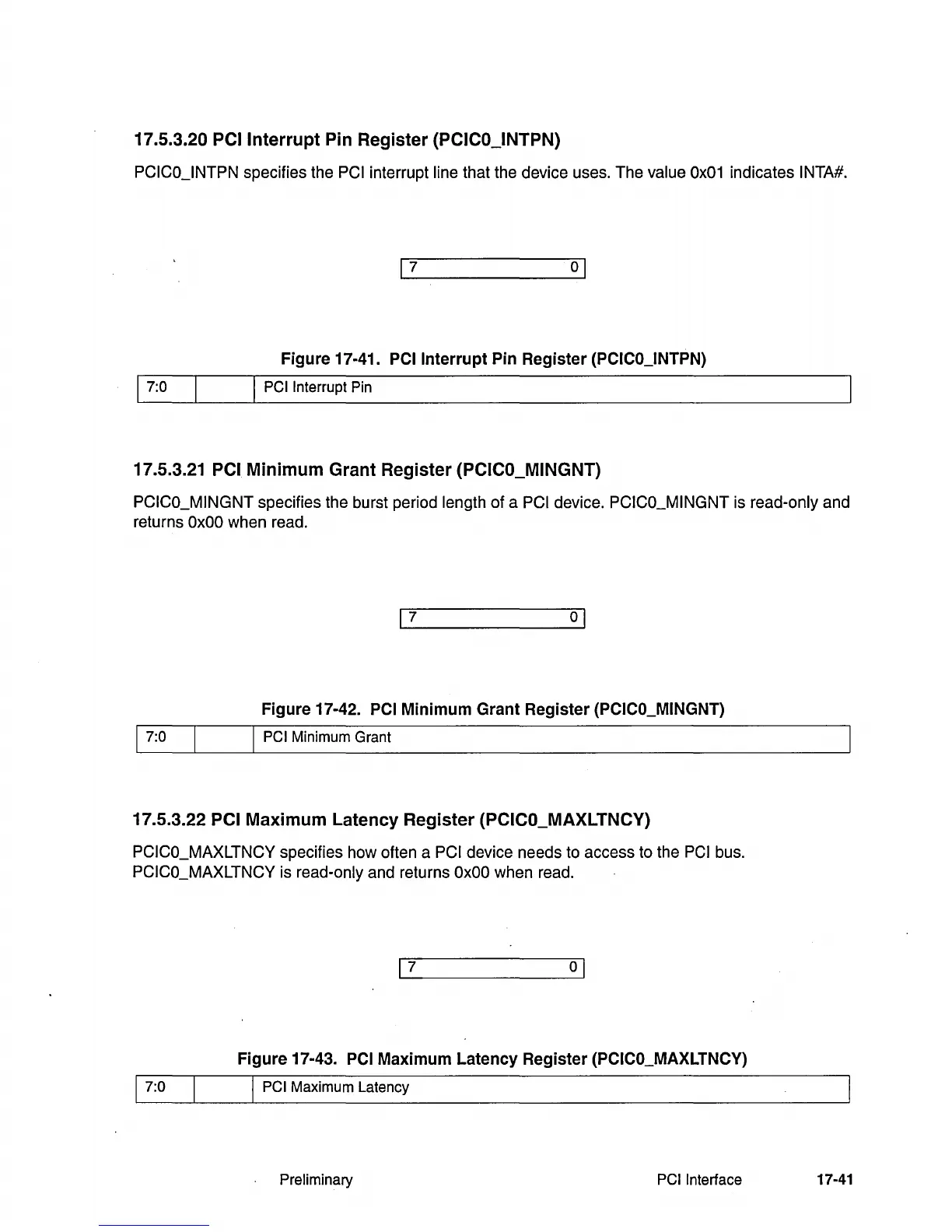

17.5.3.20

PCllnterrupt

Pin Register (PCICO_INTPN)

PCICO_INTPN specifies the PCI interrupt line that the device uses. The value

Ox01

indicates INTA#.

Figure 17·41.

PCllnterrupt

Pin Register (PCICO_INTPN)

I PCI Interrupt Pin

17.5.3.21

PCI

Minimum Grant Register (PCICO_MINGNT)

PCICO_MINGNT specifies the burst period length

a PCI device. PCICO_MINGNT is read-only and

returns

OxOO

when read.

Figure 17·42.

PCI

Minimum Grant Register (PCICO_MINGNT)

I PCI Minimum Grant

17.5.3.22

PCI

Maximum Latency Register (PCICO_MAXLTNCY)

PCICO_MAXLTNCY specifies how often a PCI device needs to access to the

PCI

bus.

PCICO_MAXLTNCY is read-only and returns

OxOO

when read.

Figure 17·43.

PCI

Maximum Latency Register (PCICO_MAXLTNCY)

I PCI Maximum Latency

Preliminary PCI Interface 17·41
