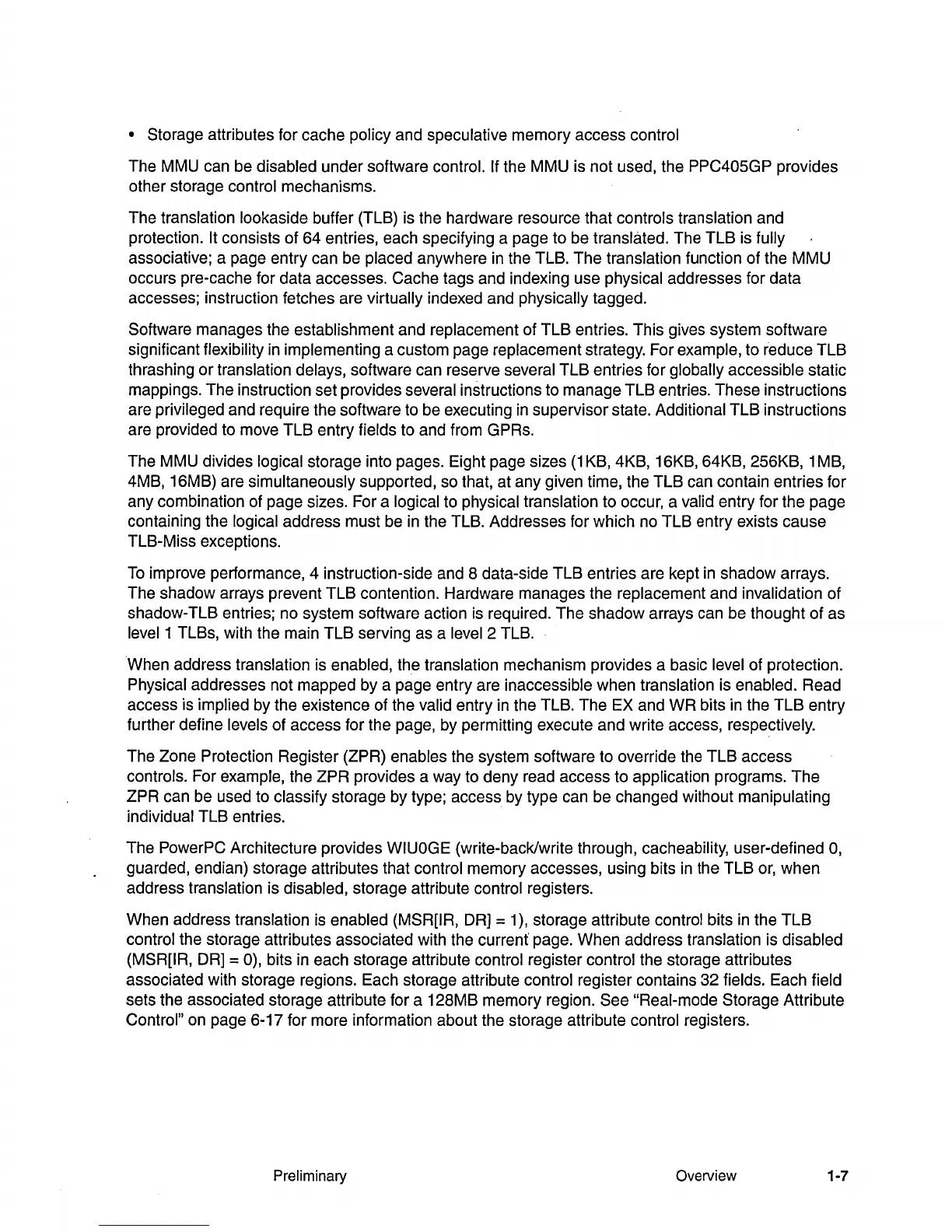

• Storage attributes for cache policy and speculative memory access control
The MMU can be disabled under software control. If the MMU is not used, the PPC405GP provides
other storage
control mechanisms.
The
translation lookaside buffer (TLB) is the hardware resource that controls translation and
protection.
It consists of 64 entries, each specifying a page to be translated. The TLB is fully
associative; a page entry can be placed anywhere
in
the TLB. The translation function of the MMU
occurs pre-cache for data accesses. Cache tags and indexing use
physical addresses for data
accesses; instruction fetches are
virtually indexed and physically tagged.
Software manages the establishment and
replacement of TLB entries. This gives system software
significant
flexibility
in
implementing a custom page replacement strategy. For example, to reduce TLB
thrashing
or
translation delays, software can reserve several TLB entries for globally accessible static
mappings. The instruction set provides
several instructions to manage TLB entries. These instructions
are privileged and require the software to be executing
in
supervisor state. Additional TLB instructions
are provided to move TLB entry
fields to and from GPRs.
The MMU divides
logical storage into pages. Eight page sizes
(1
KB,
4KB, 16KB, 64KB, 256KB, 1 MB,
4MB, 16MB) are
simultaneously supported, so that, at any given time, the TLB can contain entries for
any combination of page sizes. For a
logical to physical translation to occur, a valid entry for the page
containing the
logical address must be
in
the TLB. Addresses for which no TLB entry exists cause
TLB-Miss exceptions.
To
improve performance, 4 instruction-side and 8 data-side TLB entries are kept
in
shadow arrays.
The shadow arrays prevent TLB contention. Hardware manages the
replacement and invalidation of
shadow-TLB entries; no system software action is required. The shadow arrays can be thought of as
level 1 TLBs, with the main TLB serving as a level 2 TLB.
When address
translation is enabled, the translation mechanism provides a basic level of protection.
Physical addresses not mapped by a page entry are inaccessible when translation is enabled. Read
access is
implied by the existence of the valid entry in the TLB. The EX and WR bits in the TLB entry
further define
levels of access for the page, by permitting execute and write access, respectively.
The Zone Protection Register (ZPR) enables the system software to override the TLB access
controls. For example, the ZPR provides a way to deny read access to application programs. The
ZPR can be used to classify storage by type; access by type can be changed without manipulating
individual
TLB entries.
The PowerPC Architecture provides
WIUOGE (write-back/write through, cacheability, user-defined
0,
guarded, endian) storage attributes that control memory accesses, using bits
in
the TLB
or,
when
address
translation is disabled, storage attribute control registers.
When address
translation is enabled (MSR[IR, DR] = 1), storage attribute control bits
in
the TLB
control the storage attributes associated with the current' page. When address translation is disabled
(MSR[IR,
DR] = 0), bits in each storage attribute control register control the storage attributes
associated with storage regions. Each storage attribute
control register contains 32 fields. Each field
sets the associated storage attribute for a 128MB memory region. See "Real-mode Storage Attribute
Control" on page 6-17 for more information about the storage attribute control registers.
Preliminary
Overview 1-7
