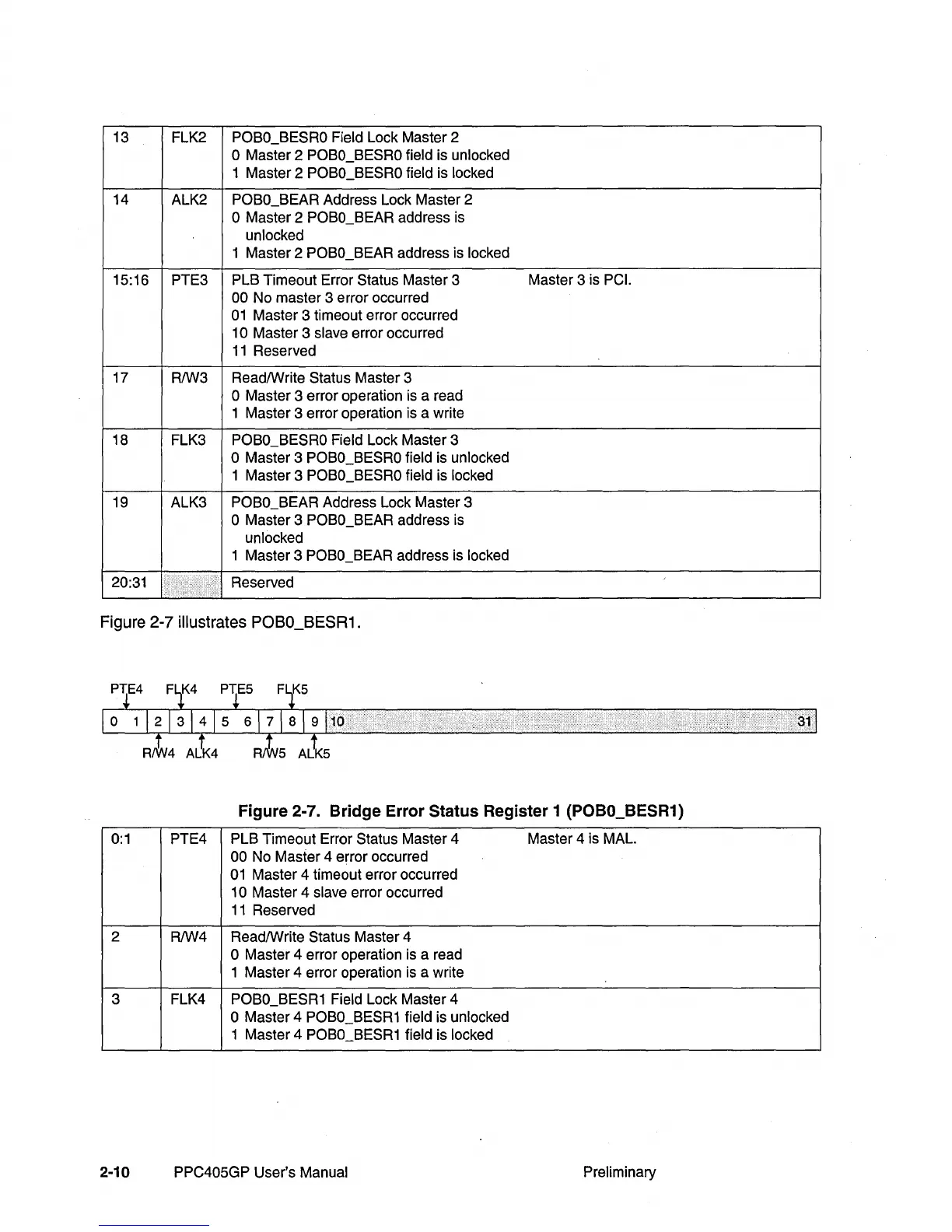

13 FLK2 POBO_BESRO Field Lock Master 2
° Master 2 POBO_BESRO field is unlocked
1 Master 2 POBO_BESRO field is locked
14
ALK2 POBO_BEAR Address Lock Master 2
° Master 2 POBO_BEAR address is
unlocked
1 Master 2 POBO_BEAR address is locked
15:16 PTE3 PLB Timeout Error Status Master 3
Master 3 is PCI.
00
No master 3 error occurred
01
Master 3 timeout error occurred
10 Master 3 slave error occurred
11
Reserved
17
RlW3
ReadIWrite Status Master 3
a Master 3 error operation is a read
1 Master 3 error operation is a write
18
FLK3
POBO_BESRO Field Lock Master 3
° Master 3 POBO_BESRO field is unlocked
1 Master 3 POBO_BESRO field is locked
19 ALK3 POBO_BEAR Address Lock Master 3
° Master 3 POBO_BEAR address is
unlocked
1 Master 3 POBO_BEAR address is locked
20:31
...
Reserved
..
•.....
...
Figure 2-7 illustrates POBO_BESR1.
Figure 2-7. Bridge Error Status Register 1 (POBO_BESR1)
0:1
PTE4 PLB Timeout Error Status Master 4
Master 4 is MAL.
00 No Master 4 error occurred
01
Master 4 timeout error occurred
10 Master 4 slave error occurred
11
Reserved
2
RIW4 ReadIWrite Status Master 4
° Master 4 error operation is a read
1 Master 4 error operation is a write
3 FLK4
POBO_BESR1 Field Lock Master 4
° Master 4 POBO_BESR1 field is unlocked
1 Master 4 POBO_BESR1 field is locked
2-10 PPC405GP User's Manual Preliminary
