Configure Quality of Service
464
M4300 Series and M4300-96X Fully Managed Switches User Manual

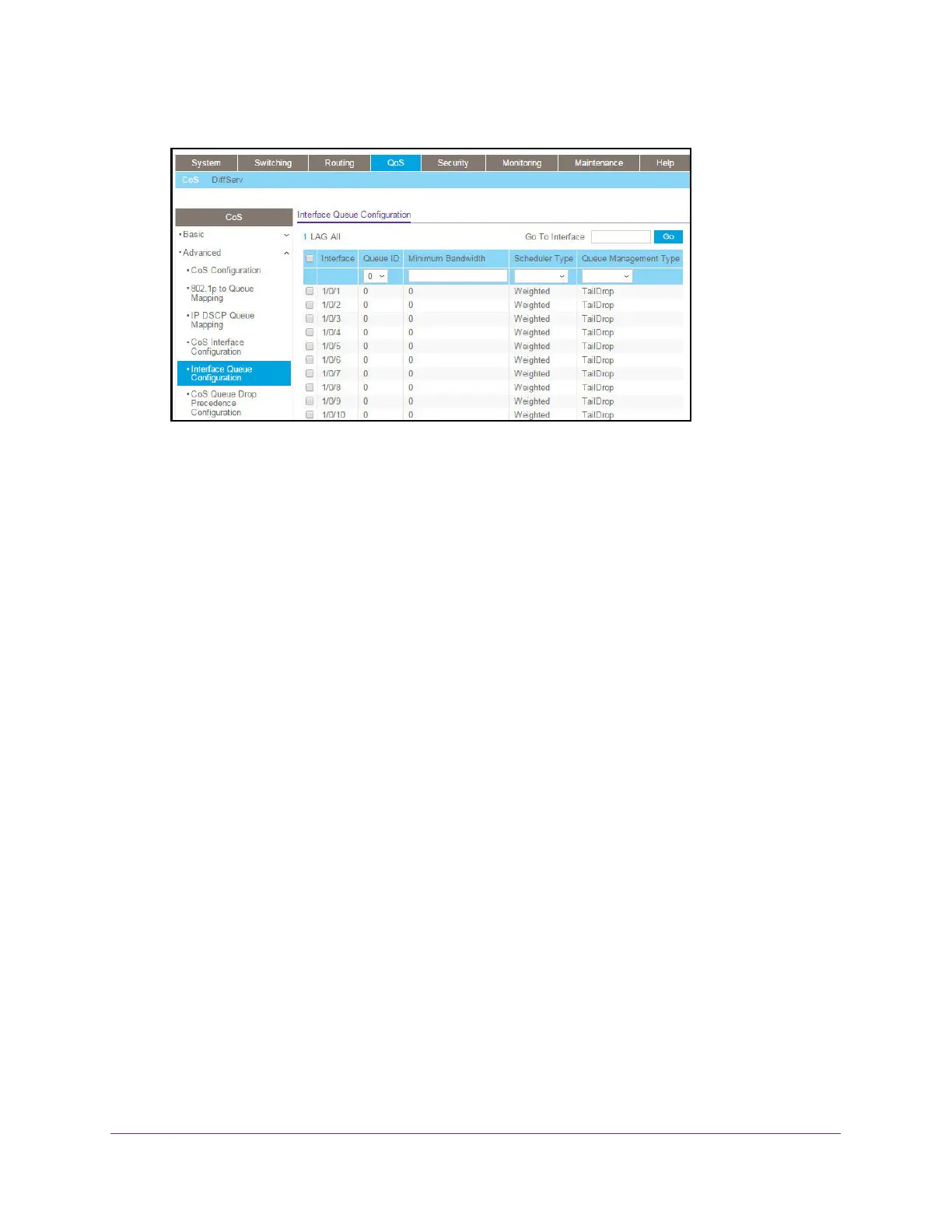

6. Select the check box next to the port or LAG to configure.
You can select multiple ports and LAGs to apply the same setting to the selected
interfaces. Select the check box in the heading row to apply a trust mode or rate to all
interfaces.
7. Use the Queue ID menu to select the queue to be configured (platform based).
8. Use Minimum Bandwidth to specify the minimum guaranteed bandwidth allotted to this
queue.
Setting this value higher than its corresponding maximum bandwidth automatically
increases the maximum to the same value.
The default value is 0. V
alid Range is 0 to 100
in increments of 1. The value 0 means no guaranteed minimum. Sum of individual
Minimum Bandwidth values for all queues in the selected interface cannot exceed defined
maximum (100).
9. Queue Management T
ype
displays the queue depth management technique used for
queues on this interface.
This is used only if the device supports independent settings per queue. From the Queue
Management T
ype menu, select either TailDrop or WRED. The default value is
TailDrop.
10. Click the Apply button.
Your settings are saved.
