Configure Quality of Service
481
M4300 Series and M4300-96X Fully Managed Switches User Manual
9. Click the Add button.
The new policy is added to the switch.

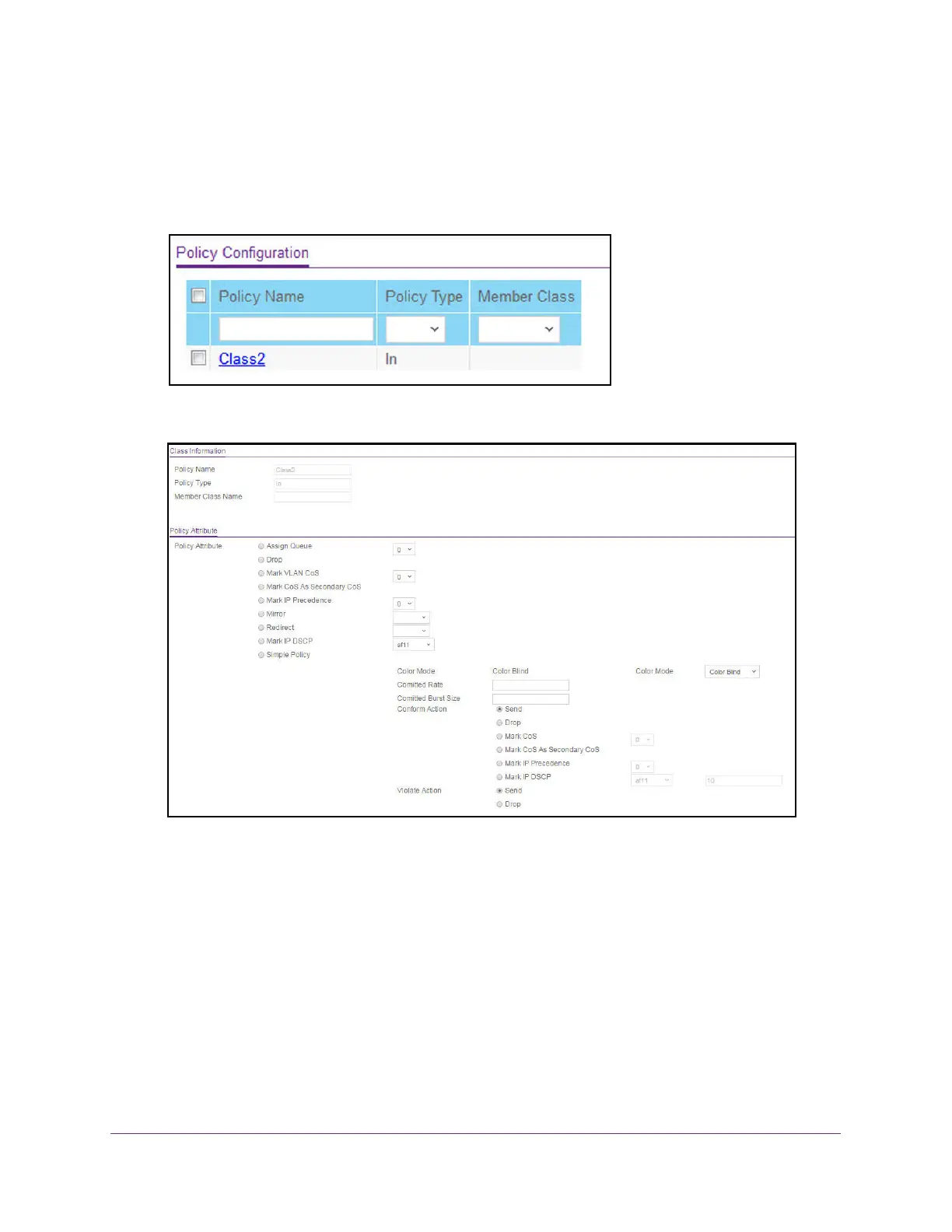

10. To configure the policy attributes, click the name of the policy.
The policy name is a hyperlink.
The Policy Configuration page displays, showing the configuration fields for the policy
.
11. Select the Assign Queue to which packets of this policy-class are assigned.
This is an integer value in the range 0 to 6.
12. Configure the policy attributes:
• Drop. Select the drop radio button. This flag indicates that the policy attribute is
defined to drop every inbound packet.
• Mark VLAN CoS. This is an integer value in the range from 0 to 7 for setting the VLAN
priority
.
• Mark CoS as Secondary Cos. This option marks outer VLAN tag priority bits of all
packets as the inner VLAN tag priority
. This essentially means that the inner VLAN
tag CoS is copied to the outer VLAN tag CoS.
• Mark IP Precedence. This is an IP precedence value in the range from 0 to 7.
