Port Configuration Summary
Port Assignment Scheme
4-2 Matrix E1 Series (1G58x-09 and 1H582-xx) Configuration Guide
The device’s optional expansion module slot(s), numbered 1, or 1,2, and 3, can have one or more
ports depending on the module installed. Figure 4-2 shows the Ethernet expansion modules
available at the time of this printing, and the location of port 1 on each module. Table 4-1 indicates
the port numbering scheme for each expansion module. In this numbering scheme, port 2 on the
expansion module in slot 2 would be expressed as 2.2 in the CLI syntax.
For information on how this device’s port assignment scheme is expressed in CLI syntax, refer to
Section 4.1.2.

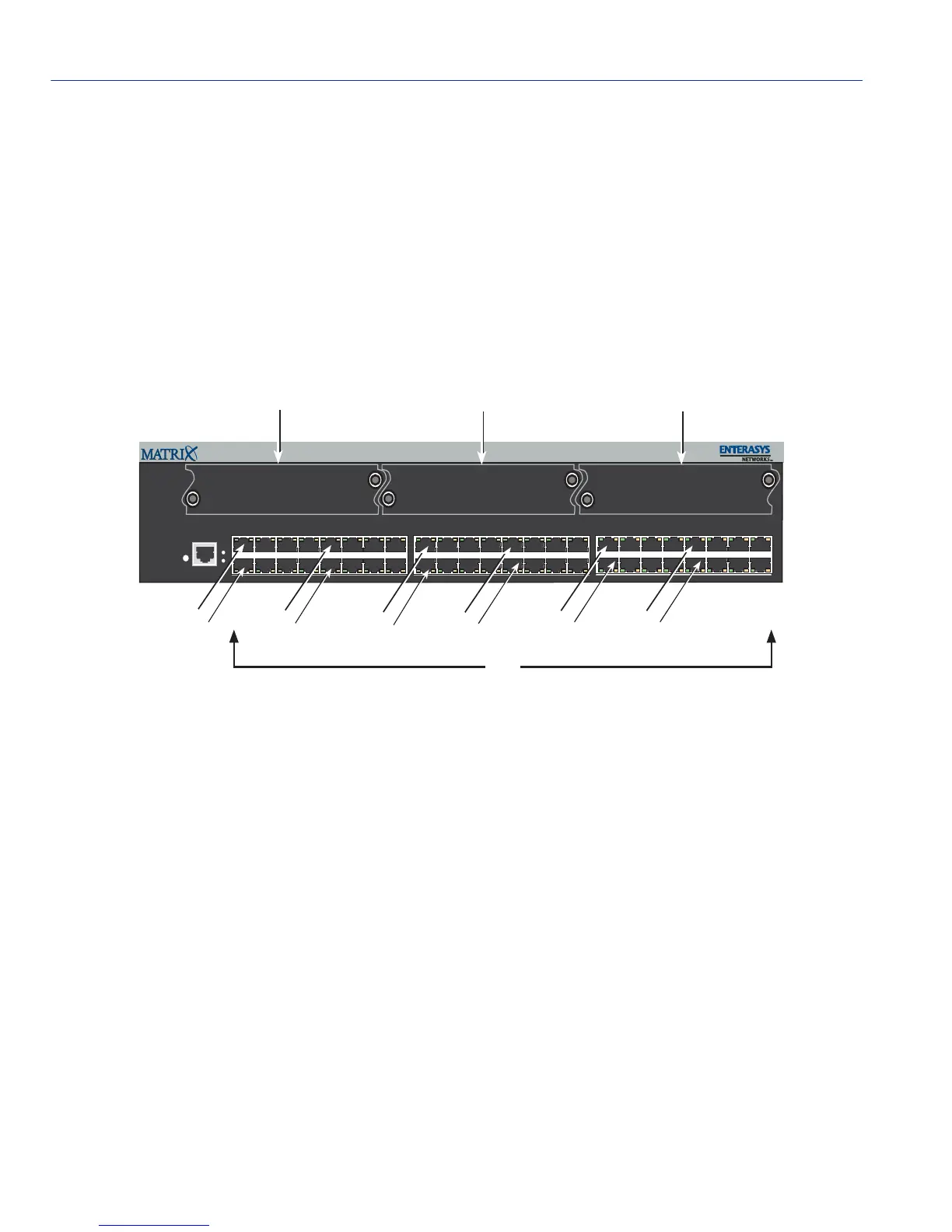

Figure 4-1 1H582-51 Expansion Module and Fixed Front Panel Port Numbering Scheme
2
1
4
6
8
10 12 14 16
3
5
7
9 11 13 15
18
17
20
22
24
26 28 30 32
19
21
23
25 27 29 31
34
33
36
38
40
42 44 46 48
35
37
39
41 43 45 47
Reset
Console
PWR
CPU
1H582-51
2
3
1
25
26
33
34
10
9
18
17
2
1
41
42
0
